Push Pull 10XPM MIG Torch
Specifications

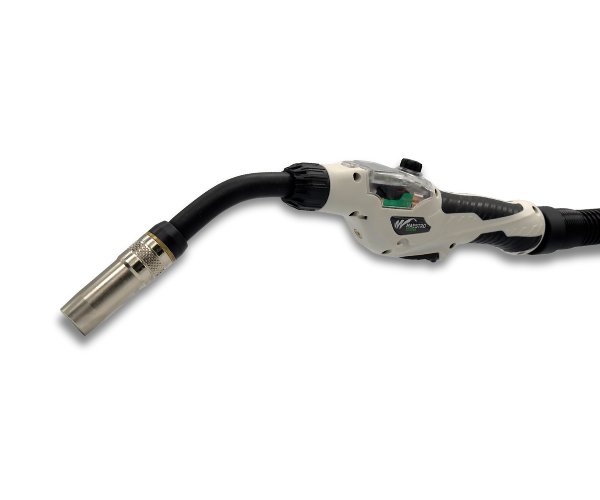

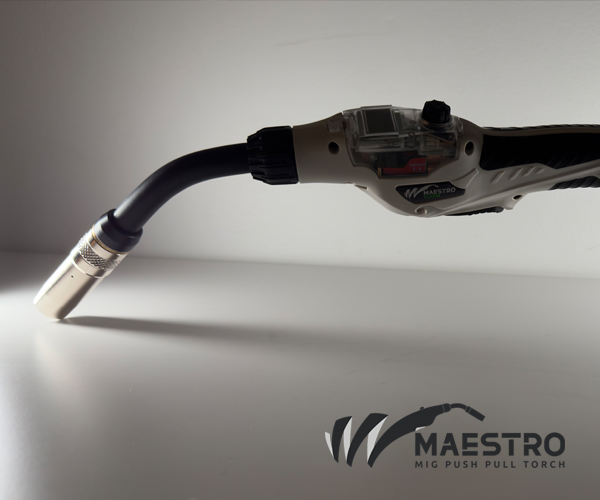

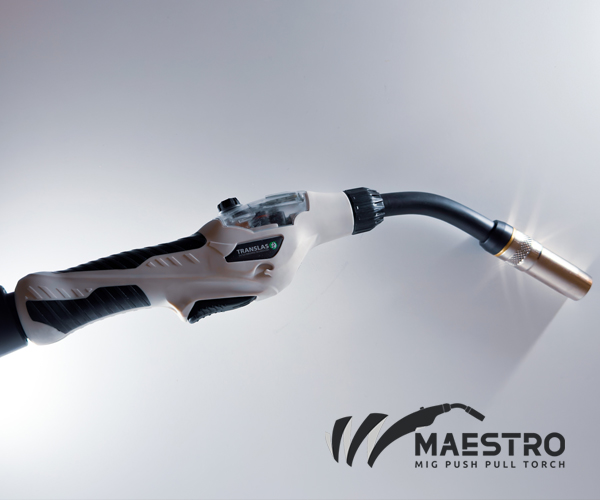

Maestro Push Pull 10XPM MIG Torch – Water COOLED MIXED GASES – 350 AMP, DUTY CYCLE – 100%
Step into the future of welding with the Maestro Push Pull MIG Torch.The 10XPM Maestro, featuring advanced technology and a streamlined push-pull swanneck design, revolutionizes the welding experience.
Maximize your productivity with our intuitive handle-mounted controls, allowing you to make quick adjustments on the go. The lightweight construction and easy-to-use weld settings let you focus on what matters most—precision and quality in every weld.
The Maestro 10XPM offer unmatched reliability and performance, making it the ultimate tool for professionals pushing the boundaries of aluminum welding.
Key Features:
Seamless Integration: Direct plug & play compatibility with the Transync system.
Enhanced Control: Intuitive single button provides full remote to optimize synchronisation.
Precision Adjustment: Enjoy precise digital adjustability for optimal performance.
Ultra-Flexible Power Cable: Features an Ultra-Flex power cable for ease of movement.
High-Quality Components: Built with CNC billet components for superior reliability.
Ergonomic and Balanced: Balanced design allows hours of continuous wire feed without welder fatigue.
Lightweight Build: One of the lightest Push/Pull torches in the market.
Versatile Options: Available in a water-cooled version in lengths of 4, 6, 8, 10, 12, and 16 mtr.
Material Compatibility: Suitable for aluminum, steel, and stainless steel.
Double Driven Drive Rolls: Provides superior grip, minimizing slippage and enhancing precision for smoother, high-quality welds.
Enhanced Control: Intuitive single button provides full remote to optimize synchronisation.
Precision Adjustment: Enjoy precise digital adjustability for optimal performance.
Ultra-Flexible Power Cable: Features an Ultra-Flex power cable for ease of movement.
High-Quality Components: Built with CNC billet components for superior reliability.
Ergonomic and Balanced: Balanced design allows hours of continuous wire feed without welder fatigue.
Lightweight Build: One of the lightest Push/Pull torches in the market.
Versatile Options: Available in a water-cooled version in lengths of 4, 6, 8, 10, 12, and 16 mtr.
Material Compatibility: Suitable for aluminum, steel, and stainless steel.
Double Driven Drive Rolls: Provides superior grip, minimizing slippage and enhancing precision for smoother, high-quality welds.
Specifications:
- Wire Sizes: 0,8mm – 1,6mm Aluminum wire 0,8mm – 1,6mm Steel, Stainless steel wire
- Wire Speed: Max 880 IPM (22mtr/min)
- Duty Cycle – 100%: 350 AMPS – Water Cooled.
- Connections: Plug & Play power pin connection EUR, Lincoln, Tweco, Miller.
- Compatible Systems: Works on any welding Machine
Push Pull 10XPM MIG Torch
Europe
North America
Europe
Technical Specification
Replacement Part
TECHNICAL DOCUMENT
10XPM
WATER COOLED
CO2: 380 AMP
MIXED GASES: 350 AMP
DUTY CYCLE: 100%
10XPM
AIR COOLED
CO2: 270 AMP
MIXED GASES: 250 AMP
DUTY CYCLE: 60%
WATER COOLED
AIR COOLED
TRANSYNC MAESTRO
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
| Part No. | Description | Pack Qty |
|---|---|---|
| 10XPM5060041000 | 10XPM Maestro Push/Pull torch 4mtr water cooled | 1 |
| 10XPM5060061000 | 10XPM Maestro Push/Pull torch 6mtr water cooled | 1 |
| 10XPM5060081000 | 10XPM Maestro Push/Pull torch 8mtr water cooled | 1 |
| 10XPM5060101000 | 10XPM Maestro Push/Pull torch 10mtr water cooled | 1 |
| 10XPM5060121000 | 10XPM Maestro Push/Pull torch 12mtr water cooled | 1 |
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| A | 385205 | Nozzle 17mm | 10 |
| B | 399008 | Contact tip 8XE – 0,8 | 25 |
| 399009 | Contact tip 8XE – 0,9 | 25 | |
| 399010 | Contact tip 8XE – 1,0 | 25 | |
| 399012 | Contact tip 8XE – 1,2 | 25 | |
| 399014 | Contact tip 8XE – 1,4 | 25 | |
| 399016 | Contact tip 8XE – 1,6 | 25 | |
| 3990082 | Contact tip 8XE – 0,8 Alu | 25 | |
| 3990092 | Contact tip 8XE – 0,9 Alu | 25 | |
| 3990102 | Contact tip 8XE – 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XE – 1,2 Alu | 25 | |
| 3990142 | Contact tip 8XE – 1,4 Alu | 25 | |
| 3990162 | Contact tip 8XE – 1,6 Alu | 25 | |
| C | 385150 | Tip adapter | 5 |
| D | 385103 | Swanneck liner (2,0/4,0) | 1 |
| 385104 | Swanneck liner (2,5/4,0) | 1 | |
| E | 385170-9 | Drive roll 0,8/0,9 (white/green insulated) | 2 |
| 385171-9 | Drive roll 1,0/1,2 (blue/red insulated) | 2 | |
| 385172-9 | Drive roll 1,4/1,6 (black/yellow insulated) | 2 | |
| 385175-9 | Drive roll 0,8A/0,9A (white/green insulated) | 2 | |
| 385176-9 | Drive roll 1,0A/1,2A (blue/red insulated) | 2 | |
| 385177-9 | Drive roll 1,4A/1,6A (black/yellow insulated) | 2 |

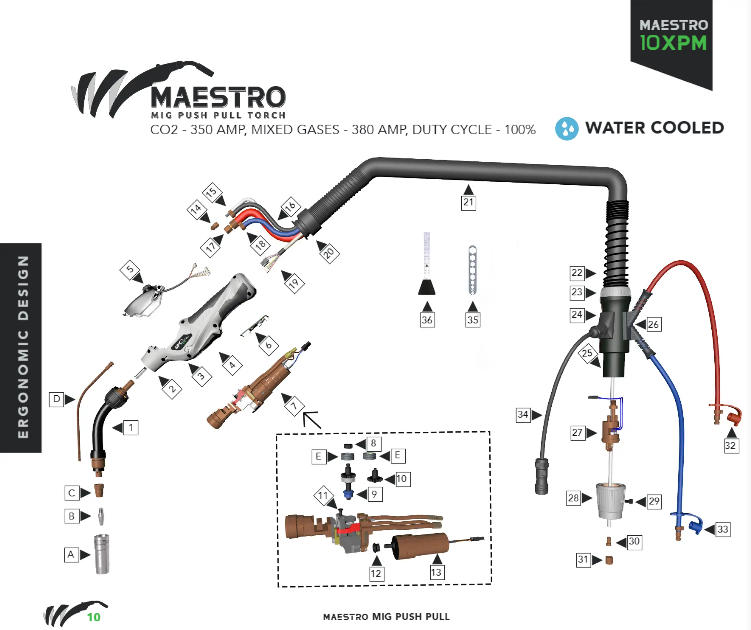

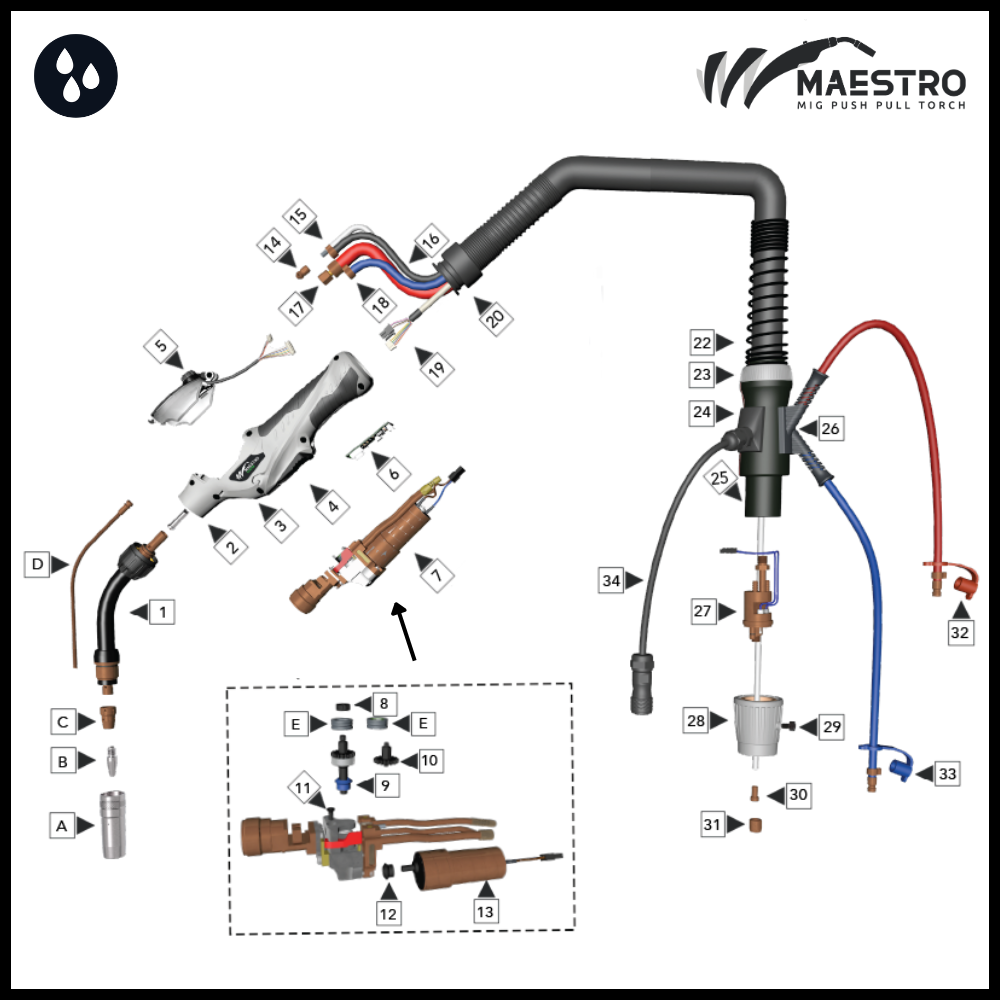

| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| 1 | 385100 | Swanneck water cooled 45° | 1 |
| 2 | 386030 | Wire guide swanneck side | 1 |
| 3 | 3854009 | Handle complete (without top cap) | 1 |
| 4 | 385402 | Trigger | 1 |
| 3854022 | Spring for Trigger | 5 | |
| 5 | 385410C | Top cap complete | 1 |
| 6 | 385656P | PCB programmed for TRANSYNC sync box | 1 |
| 7 | 386000 | Mechanisme water cooled complete | 1 |
| 8 | 386043 | Nut for wirefeed roll axle | 1 |
| 9 | 385169C | Wirefeed roll axle complete | 1 |
| 10 | 386100 | Pressure roll axle | 1 |
| 11 | 386425 | Screw M3x6 for pressure roll holder | 5 |
| 12 | 386270 | Gear wheel for motor | 1 |
| 386271 | Screw for gear wheel | 5 | |
| 13 | 386250C | Motor 24Volt complete with connector | 1 |
| 14 | 3856002 | Connection nipple for wire feed cable | 1 |
| 15 | 3856004 | Wire feed cable complete 4mtr | 1 |
| 3856006 | Wire feed cable complete 6mtr | 1 | |
| 3856008 | Wire feed cable complete 8mtr | 1 | |
| 3856010 | Wire feed cable complete 10mtr | 1 | |
| 3856012 | Wire feed cable complete 12mtr | 1 | |
| 16 | 258655 | Gas hose 4x7mm black p/mtr | 100 |
| 17 | 258514XP | Power/water cable complete 4mtr | 1 |
| 258516XP | Power/water cable complete 6mtr | 1 | |
| 258518XP | Power/water cable complete 8mtr | 1 | |
| 258510XP | Power/water cable complete 10mtr | 1 | |
| 258512XP | Power/water cable complete 12mtr | 1 | |
| 18 | 258535 | Water hose blue 5x8mm p/mtr | 100 |
| 258566 | Water hose red 5x8mm p/mtr | 100 | |
| 19 | 3063040 | Trigger wire cable complete 4mtr | 1 |
| 3063060 | Trigger wire cable complete 6mtr | 1 | |
| 3063080 | Trigger wire cable complete 8mtr | 1 | |
| 3063010 | Trigger wire cable complete 10mtr | 1 | |
| 3063012 | Trigger wire cable complete 12mtr | 1 | |
| 20 | 385409 | Ball socket joint complete | 1 |
| 21 | 259200 | Canvas sheating 25x28mm p/mtr | 40 |
| 22 | 8M9501 | Spring for back housing | 1 |
| 23 | 8M9419 | Locking ring back housing | 1 |
| 24 | 3856701 | Cable guide | 1 |
| 25 | 8M9400 | Back housing (2-parts) | 1 |
| 26 | 350861 | Water hose guide | 1 |
| 27 | 305304TSP | Central adapter water cooled (spring pin) | 1 |
| 28 | 8M9420 | Adapter nut | 2 |
| 29 | 305068 | Screw M4x8 | 1 |
| 30 | 386450 | Nipple for wire feed cable | 1 |
| 31 | 305316 | Liner positioner nut | 10 |
| 32 | 258701 | Waterstop red | 10 |
| 33 | 258702 | Waterstop blue | 10 |
| 34 | 385670C | Connection cable for TRANSYNC sync box complete 10-pins | 1 |
| 35 | 371206 | Mig spanner | 1 |
| 36 | 406050 | Gasflow-meter | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
| PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|
| 10XPM2020041000 | 10XPM Maestro Push/Pull torch 4mtr air cooled | 1 |
| 10XPM2020061000 | 10XPM Maestro Push/Pull torch 6mtr air cooled | 1 |
| 10XPM2020081000 | 10XPM Maestro Push/Pull torch 8mtr air cooled | 1 |
| 10XPM2020101000 | 10XPM Maestro Push/Pull torch 10mtr air cooled | 1 |
| 10XPM2020121000 | 10XPM Maestro Push/Pull torch 12mtr air cooled | 1 |
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| A | 385205 | Nozzle 17mm | 10 |
| B | 399008 | Contact tip 8XE – 0,8 | 25 |
| 399009 | Contact tip 8XE – 0,9 | 25 | |
| 399010 | Contact tip 8XE – 1,0 | 25 | |
| 399012 | Contact tip 8XE – 1,2 | 25 | |
| 399014 | Contact tip 8XE – 1,4 | 25 | |
| 399016 | Contact tip 8XE – 1,6 | 25 | |
| 3990082 | Contact tip 8XE – 0,8 Alu | 25 | |
| 3990092 | Contact tip 8XE – 0,9 Alu | 25 | |
| 3990102 | Contact tip 8XE – 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XE – 1,2 Alu | 25 | |
| 3990142 | Contact tip 8XE – 1,4 Alu | 25 | |
| 3990162 | Contact tip 8XE – 1,6 Alu | 25 | |
| C | 385150 | Tip adapter | 5 |
| D | 385103 | Swanneck liner (2,0/4,0) | 1 |
| 385104 | Swanneck liner (2,5/4,0) | 1 | |
| E | 385170-9 | Drive roll 0,8/0,9 (white/green insulated) | 2 |
| 385171-9 | Drive roll 1,0/1,2 (blue/red insulated) | 2 | |
| 385172-9 | Drive roll 1,4/1,6 (black/yellow insulated) | 2 | |
| 385175-9 | Drive roll 0,8A/0,9A (white/green insulated) | 2 | |
| 385176-9 | Drive roll 1,0A/1,2A (blue/red insulated) | 2 | |
| 385177-9 | Drive roll 1,4A/1,6A (black/yellow insulated) | 2 |

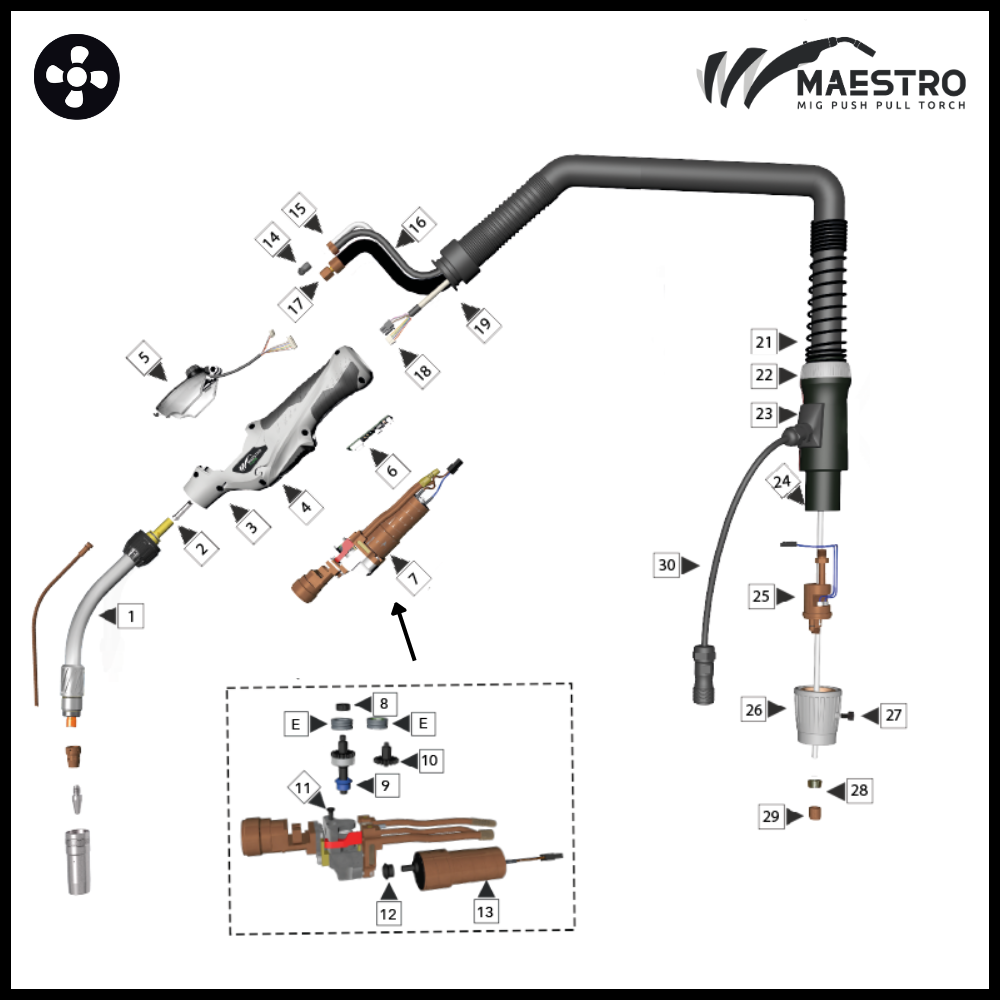

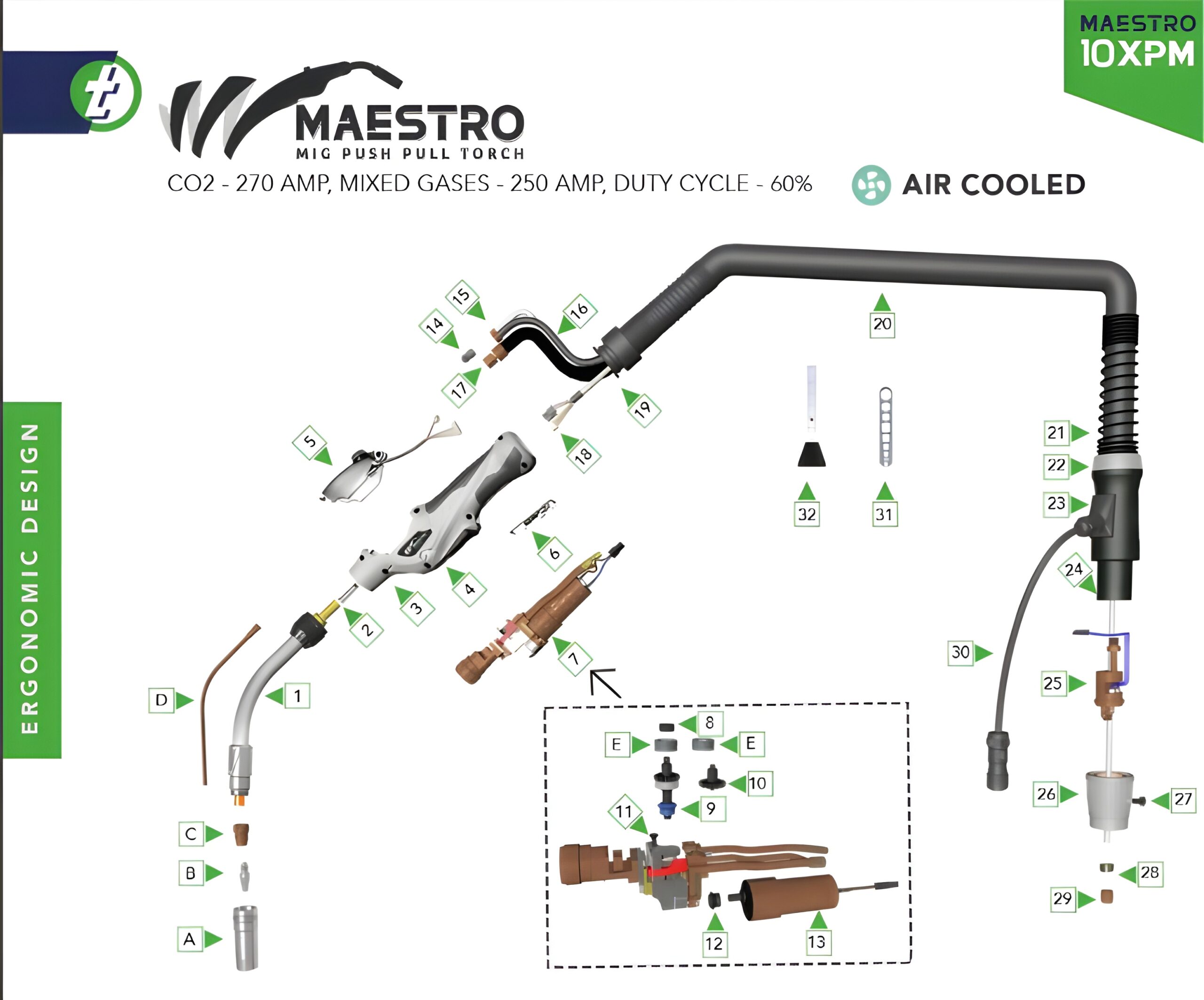

| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| 1 | 385105 | Swanneck air cooled 45° | 1 |
| 2 | 386030 | Wire guide swanneck side | 1 |
| 3 | 3854009 | Handle complete (without top cap) | 1 |
| 4 | 385402 | Trigger | 1 |
| 3854022 | Spring for Trigger | 5 | |
| 5 | 385410C | Top cap complete | 1 |
| 6 | 385656P | PCB programmed for TRANSYNC sync box | 1 |
| 7 | 386000L | Mechanisme air cooled complete | 1 |
| 8 | 386043 | Nut for wirefeed roll axle | 1 |
| 9 | 385169C | Wirefeed roll axle complete | 1 |
| 10 | 386100 | Pressure roll axle | 1 |
| 11 | 386425 | Screw M3x6 for pressure roll holder | 5 |
| 12 | 386270 | Gear wheel for motor | 1 |
| 386271 | Screw for gear wheel | 5 | |
| 13 | 386250C | Motor 24Volt complete with connector | 1 |
| 14 | 3856003 | Connection nipple for wire feed cable | 1 |
| 15 | 38560004 | Wire feed cable complete 4mtr | 1 |
| 38560006 | Wire feed cable complete 6mtr | 1 | |
| 38560008 | Wire feed cable complete 8mtr | 1 | |
| 38560010 | Wire feed cable complete 10mtr | 1 | |
| 38560012 | Wire feed cable complete 12mtr | 1 | |
| 16 | 258655 | Gas hose 4x7mm black p/mtr | 100 |
| 17 | 258574XPL | Power cable complete 4mtr | 1 |
| 258576XPL | Power cable complete 6mtr | 1 | |
| 258578XPL | Power cable complete 8mtr | 1 | |
| 2585710XPL | Power cable complete 10mtr | 1 | |
| 2585712XPL | Power cable cable complete 12mtr | 1 | |
| 18 | 3063040 | Trigger wire cable complete 4mtr | 100 |
| 3063060 | Trigger wire cable complete 6mtr | 100 | |
| 3063080 | Trigger wire cable complete 8mtr | 100 | |
| 3063010 | Trigger wire cable complete 10mtr | 100 | |
| 3063012 | Trigger wire cable complete 12mtr | 100 | |
| 19 | 385409 | Ball socket joint complete | 1 |
| 20 | 259200 | Canvas sheating 25x28mm p/mtr | 1 |
| 21 | 8M9501 | Spring for back housing | 40 |
| 22 | 8M9419 | Locking ring back housing | 1 |
| 23 | 3856701 | Cable guide | 1 |
| 24 | 8M9400 | Back housing (2-parts) | 1 |
| 25 | 305298TSP | Central adapter air cooled (spring pin) | 1 |
| 26 | 8M9420 | Adapter nut | 2 |
| 27 | 305068 | Screw M4x8 | 25 |
| 28 | 386449 | Press ring | 2 |
| 29 | 386448 | Liner positioner nut | 2 |
| 30 | 385670 | Connection cable for TRANSYNC sync box complete 10-pins | 1 |
| 31 | 371206 | Mig Spanner | 1 |
| 32 | 406050 | Gasflow-meter | 1 |

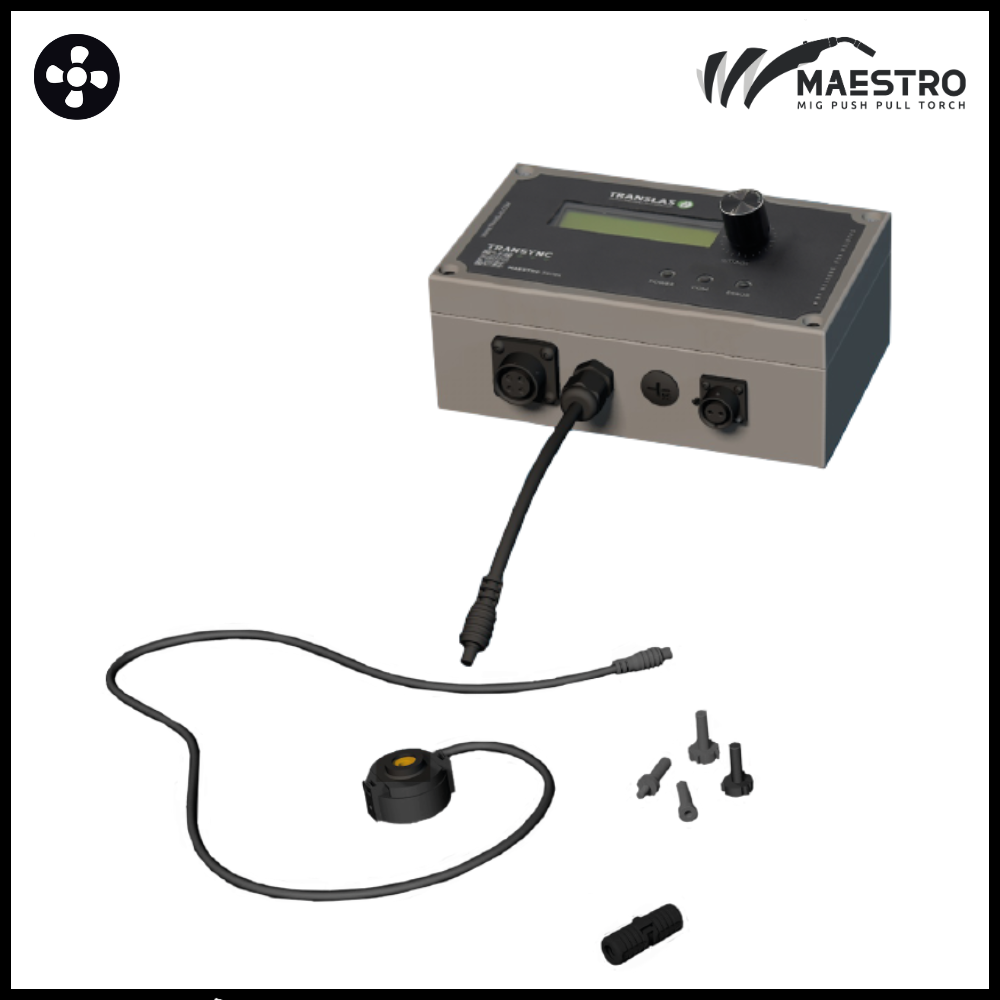

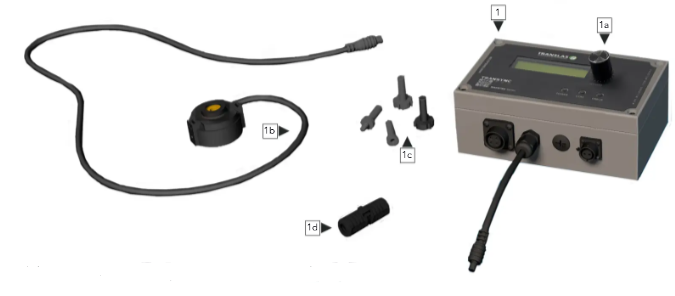

SPARE PARTS
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| 1 | 3871000 | TRANSYNC synchronisation box complete – 110V/230V EU plug | 1 |
| 3871010 | TRANSYNC synchronisation box complete – 110V/230V UK plug | 1 | |
| 3871020 | TRANSYNC synchronisation box complete – 110V/230V USA plug | 1 | |
| 3871030 | TRANSYNC synchronisation box complete – 24V/48V (for connection to welding source) | 1 | |
| 1a | 3870103T | Selection knob | 1 |
| 1b | 3870200 | Encoder complete with with cable | 1 |
| 1c | 38703099 | Mounting set (4 options) | 1 |
| 1d | 306545 | Locking clip | 5 |
| 387200 | Power supply EURO | 1 | |
| 387201 | Power supply UK | 1 | |
| 387202 | Power supply USA | 1 |
×
![]()
North America
Technical Specification
Replacement Part
TECHNICAL DOCUMENT
10XPM
WATER COOLED
CO2: 380 AMP
MIXED GASES: 350 AMP
DUTY CYCLE: 100%
10XPM
AIR COOLED
CO2: 270 AMP
MIXED GASES: 250 AMP
DUTY CYCLE: 60%
WATER COOLED
AIR COOLED
TRANSYNC MAESTRO
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|

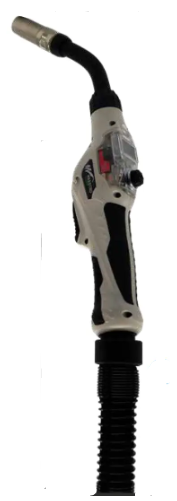

| 10XPM5060041000 | 10XPM Maestro Push/Pull torch 4mtr water cooled | 1 |
| 10XPM5060061000 | 10XPM Maestro Push/Pull torch 6mtr water cooled | 1 |
| 10XPM5060081000 | 10XPM Maestro Push/Pull torch 8mtr water cooled | 1 |
| 10XPM5060101000 | 10XPM Maestro Push/Pull torch 10mtr water cooled | 1 |
| 10XPM5060121000 | 10XPM Maestro Push/Pull torch 12mtr water cooled | 1 |
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| A | 385205 | Nozzle 17mm | 10 |
| B | 399008 | Contact tip 8XE – 0,8 | 25 |
| 399009 | Contact tip 8XE – 0,9 | 25 | |
| 399010 | Contact tip 8XE – 1,0 | 25 | |
| 399012 | Contact tip 8XE – 1,2 | 25 | |
| 399014 | Contact tip 8XE – 1,4 | 25 | |
| 399016 | Contact tip 8XE – 1,6 | 25 | |
| 3990082 | Contact tip 8XE – 0,8 Alu | 25 | |
| 3990092 | Contact tip 8XE – 0,9 Alu | 25 | |
| 3990102 | Contact tip 8XE – 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XE – 1,2 Alu | 25 | |
| 3990142 | Contact tip 8XE – 1,4 Alu | 25 | |
| 3990162 | Contact tip 8XE – 1,6 Alu | 25 | |
| C | 385150 | Tip adapter | 5 |
| D | 385103 | Swanneck liner (2,0/4,0) | 1 |
| 385104 | Swanneck liner (2,5/4,0) | 1 | |
| E | 385170-9 | Drive roll 0,8/0,9 (white/green insulated) | 2 |
| 385171-9 | Drive roll 1,0/1,2 (blue/red insulated) | 2 | |
| 385172-9 | Drive roll 1,4/1,6 (black/yellow insulated) | 2 | |
| 385175-9 | Drive roll 0,8A/0,9A (white/green insulated) | 2 | |
| 385176-9 | Drive roll 1,0A/1,2A (blue/red insulated) | 2 | |
| 385177-9 | Drive roll 1,4A/1,6A (black/yellow insulated) | 2 |
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| 1 | 385100 | Swanneck water cooled 45° | 1 |
| 2 | 386030 | Wire guide swanneck side | 1 |
| 3 | 3854009 | Handle complete (without top cap) | 1 |
| 4 | 385402 | Trigger | 1 |
| 3854022 | Spring for Trigger | 5 | |
| 5 | 385410C | Top cap complete | 1 |
| 6 | 385656P | PCB programmed for TRANSYNC sync box | 1 |
| 7 | 386000 | Mechanisme water cooled complete | 1 |
| 8 | 386043 | Nut for wirefeed roll axle | 1 |
| 9 | 385169C | Wirefeed roll axle complete | 1 |
| 10 | 386100 | Pressure roll axle | 1 |
| 11 | 386425 | Screw M3x6 for pressure roll holder | 5 |
| 12 | 386270 | Gear wheel for motor | 1 |
| 386271 | Screw for gear wheel | 5 | |
| 13 | 386250C | Motor 24Volt complete with connector | 1 |
| 14 | 3856002 | Connection nipple for wire feed cable | 1 |
| 15 | 3856004 | Wire feed cable complete 4mtr | 1 |
| 3856006 | Wire feed cable complete 6mtr | 1 | |
| 3856008 | Wire feed cable complete 8mtr | 1 | |
| 3856010 | Wire feed cable complete 10mtr | 1 | |
| 3856012 | Wire feed cable complete 12mtr | 1 | |
| 16 | 258655 | Gas hose 4x7mm black p/mtr | 100 |
| 17 | 258514XP | Power/water cable complete 4mtr | 1 |
| 258516XP | Power/water cable complete 6mtr | 1 | |
| 258518XP | Power/water cable complete 8mtr | 1 | |
| 258510XP | Power/water cable complete 10mtr | 1 | |
| 258512XP | Power/water cable complete 12mtr | 1 | |
| 18 | 258535 | Water hose blue 5x8mm p/mtr | 100 |
| 258566 | Water hose red 5x8mm p/mtr | 100 | |
| 19 | 3063040 | Trigger wire cable complete 4mtr | 1 |
| 3063060 | Trigger wire cable complete 6mtr | 1 | |
| 3063080 | Trigger wire cable complete 8mtr | 1 | |
| 3063010 | Trigger wire cable complete 10mtr | 1 | |
| 3063012 | Trigger wire cable complete 12mtr | 1 | |
| 20 | 385409 | Ball socket joint complete | 1 |
| 21 | 259200 | Canvas sheating 25x28mm p/mtr | 40 |
| 22 | 8M9501 | Spring for back housing | 1 |
| 23 | 8M9419 | Locking ring back housing | 1 |
| 24 | 3856701 | Cable guide | 1 |
| 25 | 8M9400 | Back housing (2-parts) | 1 |
| 26 | 350861 | Water hose guide | 1 |
| 27 | 305304TSP | Central adapter water cooled (spring pin) | 1 |
| 28 | 8M9420 | Adapter nut | 2 |
| 29 | 305068 | Screw M4x8 | 1 |
| 30 | 386450 | Nipple for wire feed cable | 1 |
| 31 | 305316 | Liner positioner nut | 10 |
| 32 | 258701 | Waterstop red | 10 |
| 33 | 258702 | Waterstop blue | 10 |
| 34 | 385670C | Connection cable for TRANSYNC sync box complete 10-pins | 1 |
| 35 | 371206 | Mig spanner | 1 |
| 36 | 406050 | Gasflow-meter | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|

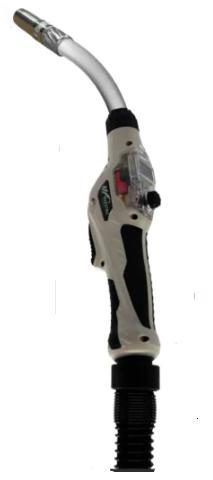

| 10XPM2020041000 | 10XPM Maestro Push/Pull torch 4mtr air cooled | 1 |
| 10XPM2020061000 | 10XPM Maestro Push/Pull torch 6mtr air cooled | 1 |
| 10XPM2020081000 | 10XPM Maestro Push/Pull torch 8mtr air cooled | 1 |
| 10XPM2020101000 | 10XPM Maestro Push/Pull torch 10mtr air cooled | 1 |
| 10XPM2020121000 | 10XPM Maestro Push/Pull torch 12mtr air cooled | 1 |
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| A | 385205 | Nozzle 17mm | 10 |
| B | 399008 | Contact tip 8XE – 0,8 | 25 |
| 399009 | Contact tip 8XE – 0,9 | 25 | |
| 399010 | Contact tip 8XE – 1,0 | 25 | |
| 399012 | Contact tip 8XE – 1,2 | 25 | |
| 399014 | Contact tip 8XE – 1,4 | 25 | |
| 399016 | Contact tip 8XE – 1,6 | 25 | |
| 3990082 | Contact tip 8XE – 0,8 Alu | 25 | |
| 3990092 | Contact tip 8XE – 0,9 Alu | 25 | |
| 3990102 | Contact tip 8XE – 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XE – 1,2 Alu | 25 | |
| 3990142 | Contact tip 8XE – 1,4 Alu | 25 | |
| 3990162 | Contact tip 8XE – 1,6 Alu | 25 | |
| C | 385150 | Tip adapter | 5 |
| D | 385103 | Swanneck liner (2,0/4,0) | 1 |
| 385104 | Swanneck liner (2,5/4,0) | 1 | |
| E | 385170-9 | Drive roll 0,8/0,9 (white/green insulated) | 2 |
| 385171-9 | Drive roll 1,0/1,2 (blue/red insulated) | 2 | |
| 385172-9 | Drive roll 1,4/1,6 (black/yellow insulated) | 2 | |
| 385175-9 | Drive roll 0,8A/0,9A (white/green insulated) | 2 | |
| 385176-9 | Drive roll 1,0A/1,2A (blue/red insulated) | 2 | |
| 385177-9 | Drive roll 1,4A/1,6A (black/yellow insulated) | 2 |
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| 1 | 385105 | Swanneck air cooled 45° | 1 |
| 2 | 386030 | Wire guide swanneck side | 1 |
| 3 | 3854009 | Handle complete (without top cap) | 1 |
| 4 | 385402 | Trigger | 1 |
| 3854022 | Spring for Trigger | 5 | |
| 5 | 385410C | Top cap complete | 1 |
| 6 | 385656P | PCB programmed for TRANSYNC sync box | 1 |
| 7 | 386000L | Mechanisme air cooled complete | 1 |
| 8 | 386043 | Nut for wirefeed roll axle | 1 |
| 9 | 385169C | Wirefeed roll axle complete | 1 |
| 10 | 386100 | Pressure roll axle | 1 |
| 11 | 386425 | Screw M3x6 for pressure roll holder | 5 |
| 12 | 386270 | Gear wheel for motor | 1 |
| 386271 | Screw for gear wheel | 5 | |
| 13 | 386250C | Motor 24Volt complete with connector | 1 |
| 14 | 3856003 | Connection nipple for wire feed cable | 1 |
| 15 | 38560004 | Wire feed cable complete 4mtr | 1 |
| 38560006 | Wire feed cable complete 6mtr | 1 | |
| 38560008 | Wire feed cable complete 8mtr | 1 | |
| 38560010 | Wire feed cable complete 10mtr | 1 | |
| 38560012 | Wire feed cable complete 12mtr | 1 | |
| 16 | 258655 | Gas hose 4x7mm black p/mtr | 100 |
| 17 | 258574XPL | Power cable complete 4mtr | 1 |
| 258576XPL | Power cable complete 6mtr | 1 | |
| 258578XPL | Power cable complete 8mtr | 1 | |
| 2585710XPL | Power cable complete 10mtr | 1 | |
| 2585712XPL | Power cable cable complete 12mtr | 1 | |
| 18 | 3063040 | Trigger wire cable complete 4mtr | 100 |
| 3063060 | Trigger wire cable complete 6mtr | 100 | |
| 3063080 | Trigger wire cable complete 8mtr | 100 | |
| 3063010 | Trigger wire cable complete 10mtr | 100 | |
| 3063012 | Trigger wire cable complete 12mtr | 100 | |
| 19 | 385409 | Ball socket joint complete | 1 |
| 20 | 259200 | Canvas sheating 25x28mm p/mtr | 1 |
| 21 | 8M9501 | Spring for back housing | 40 |
| 22 | 8M9419 | Locking ring back housing | 1 |
| 23 | 3856701 | Cable guide | 1 |
| 24 | 8M9400 | Back housing (2-parts) | 1 |
| 25 | 305298TSP | Central adapter air cooled (spring pin) | 1 |
| 26 | 8M9420 | Adapter nut | 2 |
| 27 | 305068 | Screw M4x8 | 25 |
| 28 | 386449 | Press ring | 2 |
| 29 | 386448 | Liner positioner nut | 2 |
| 30 | 385670 | Connection cable for TRANSYNC sync box complete 10-pins | 1 |
| 31 | 371206 | Mig Spanner | 1 |
| 32 | 406050 | Gasflow-meter | 1 |
SPARE PARTS
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| 1 | 3871000 | TRANSYNC synchronisation box complete – 110V/230V EU plug | 1 |
| 3871010 | TRANSYNC synchronisation box complete – 110V/230V UK plug | 1 | |
| 3871020 | TRANSYNC synchronisation box complete – 110V/230V USA plug | 1 | |
| 3871030 | TRANSYNC synchronisation box complete – 24V/48V (for connection to welding source) | 1 | |
| 1a | 3870103T | Selection knob | 1 |
| 1b | 3870200 | Encoder complete with with cable | 1 |
| 1c | 38703099 | Mounting set (4 options) | 1 |
| 1d | 306545 | Locking clip | 5 |
| 387200 | Power supply EURO | 1 | |
| 387201 | Power supply UK | 1 | |
| 387202 | Power supply USA | 1 |
