8TE TIG Fume Extraction
About The 8TE TIG Fume Extractor
The 8TE TIG Extractor offers breakthrough integrated at-source fume extraction for the TIG welding process. Featuring the same convenient ergonomic handle as the regular 8XT torch, it fits perfectly between the thumb and index fingers for all-day comfort and stability.
Paired with the ClearO₂ T100 or T200 portable extraction units, the system captures up to 95% of harmful welding fumes and toxic particulates, including Hexavalent Chromium and Manganese, directly at the source before they become airborne. This ensures welders and surrounding workers breathe cleaner air, creating a safer, healthier, and more productive work environment.
Up to 95% Extracted
The 8TE TIG Extractor, combined with the Clear O2 T-series 100/200, captures up to 95% of welding fumes directly at the source.

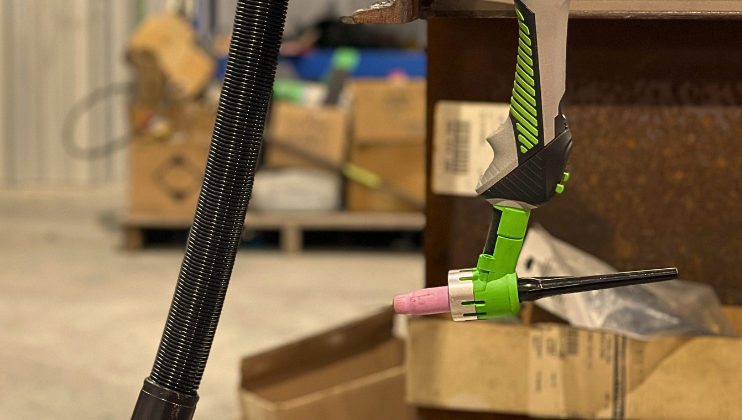

Flexible Suction Hose
The 8TE Extractor has an extremely flexible vacuum hose, especially the first meter from the handle.
Various Switch Modules
Positioned at approximately 5 degrees, the switch module eliminates any tension in the fingers and minimizes the risk of cramps due to daily repetitive movements.

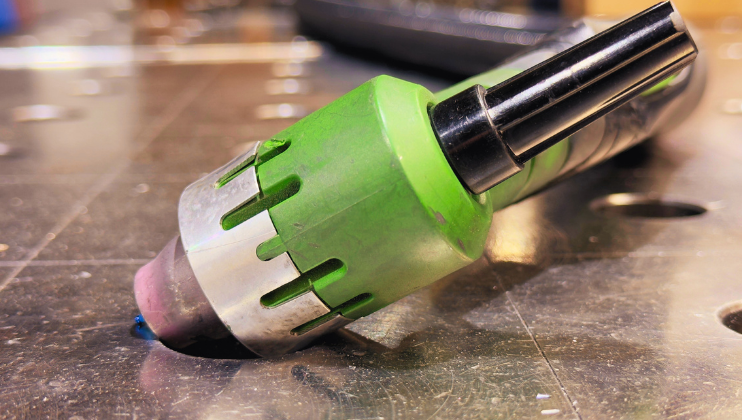

Ergonomic Grip
The 8TE TIG Extractor handle has a unique ergonomic shape designed to suit the shape of the welder’s hand, fitting perfectly between the thumb and index fingers.

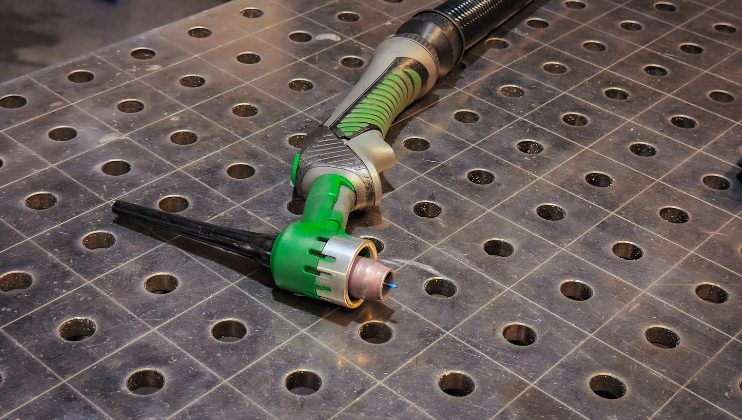

The 8TE TIG Extractor

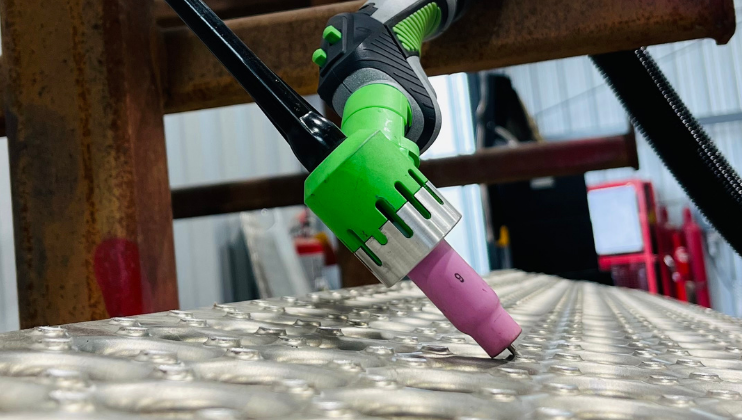

Introducing the 8TE TIG Fume Extraction Torch, the world’s first TIG on-torch fume extraction solution. Designed to capture harmful welding fumes directly at the source, the 8TE helps improve air quality, protect operators from welding fume hazards, and keep your workplace compliant with health and safety regulations. Whether you’re looking to upgrade your TIG welding setup or invest in better fume extraction equipment, the 8TE delivers performance and protection in one innovative torch.

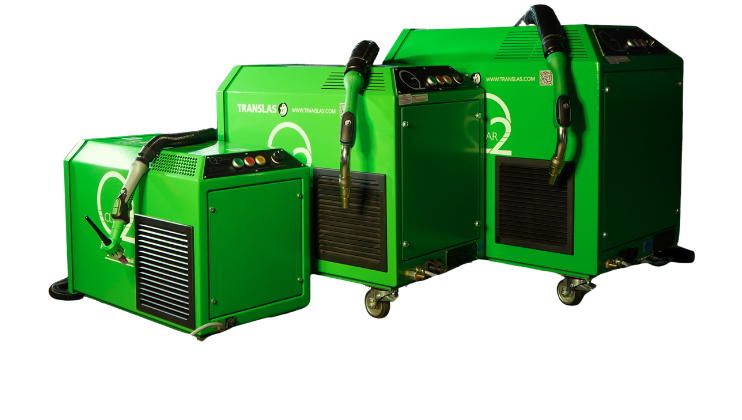

CLEAR O2 COMPATIBILITY
The ClearO2 portable extraction units offered by Translas were specially engineered to work with the 8XE MIG, 8TE TIG, 8XC Cobotic and 10XR Robotic fume extractors to deliver the best results, up to 98% extraction of welding fumes directly at the source. The ClearO2 portable extraction units and solutions are ready to use systems, designed for maximum convenience for the welder during work.

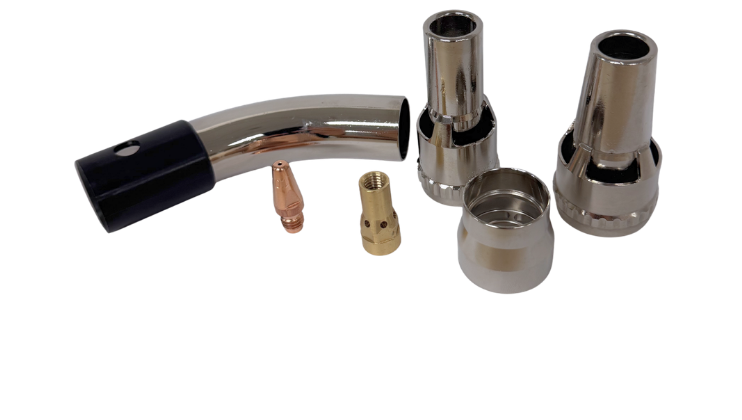

SPARE PARTS
The 10XM ACE MIG welding torch is engineered for seamless integration into professional operations by utilizing fully standard metric contact tips and nozzles. By avoiding proprietary designs, this torch ensures that sourcing everyday wear parts is fast, cost-effective, and entirely hassle-free. Your team can rely on maximum compatibility with existing metric workshop inventory, minimizing maintenance downtime and keeping your production lines moving without delay.
8TE TIG FUME EXTRACTION TORCH LINE
Europe
North America
Europe
Technical Specification
Replacement Part
TECHNICAL DOCUMENT
8TE 17 TIG
AIR COOLED
DC – 140 AMP
AC/DC – 100 AMP
Duty Cycle – 35%
8TE 30 TIG
WATER COOLED
2 DC – 320 AMP
AC/DC – 230 AMP
Duty Cycle – 100%
8TE 35 TIG
WATER COOLED
DC – 320 AMP
AC/DC – 230 AMP
Duty Cycle – 100%
8TE-17
8TE-30
8TE-35
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8TF20010504350 | 8TE-17 Tig Extractor 4mtr 10-25mm*+1/4’G | 1 |
| 8TE20010508350 | 8TE-17 Tig Extractor 8mtr 10-25mm?+1/4’G | 1 |
| 8TE20010504370 | 8TE-17 Tig Extractor 4mtr 35-50mm*+1/4’G | 1 |
| 8TE20010508370 | 8TE-17 Tig Extractor 8mtr 35-50mm2+1/4’G | 1 |
| 8TE20010504340 | 8TE- 17 Tig Extractor 4mtr CA Fronius 35-50mm | 1 |
| 8TE20010508340 | 8TE-17 Tia Extractor 8mtr CA Fronius 35-50mm | 1 |
| 8TE20010504000 | 8TE-17 Tig Extractor 4mtr M12x1 | 1 |
| 8TE20010508000 | 88TE-17 Tig Extractor 8mtr M12x1 | 1 |
| 8TE20010504210 | 88TE-17 Tig Extractor 4mtr 1/4’G | 1 |
| 8TE20010508210 | 8TE-17 Tia Extractor 8mtr 1/4’G | 1 |
| 8TE20010504220 | 8TE-17 Tig Extractor 4mtr 3/8’G | 1 |
| 8TE20010508220 | 8TE-17 Tig Extractor 8mtr 3/8’G | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 500664 | 10N22 Collet 1.0mm | 5 |
| 500666 | 10N23 Collet 1.6mm | 5 | |
| 500668 | 70062 Collet 2.0mm | 5 | |
| 500670 | 10N24 Collet 2,4mm | 5 | |
| 500674 | 10N25 Collet 3.2mm | 5 | |
| 500676 | 54N20 Collet 4.0mm | 5 | |
| B | 500764 | 10N30 Collet body 1.0mm | 5 |
| 500766 | 10N31 Collet body 1.6mm | 5 | |
| 500768 | 70064 Collet body 2.0mm | 5 | |
| 500770 | 10N32 Collet body 2,4mm | 5 | |
| 500774 | 10N28 Collet body 3.2mm | 5 | |
| 500776 | 406488 Collet body 4.0mm | 5 | |
| C | 500520 | 10N50 Ceramic cup 6.4mm | 10 |
| 500522 | 10N49 Ceramic cup 7.9mm | 10 | |
| 500524 | 10N48 Ceramic cup 9,5mm | 10 | |
| 500526 | 10N47 Ceramic cup 11.1mm | 10 | |
| 500528 | 10N46 Ceramic cup 12.7 mm | 10 | |
| 500530 | 10N45 Ceramic cup 16.0mm | 10 | |
| 500532 | 10N44 Ceramic cup 19.0mm | 10 | |
| D | 500346 | 57Y02 Back cap long | 5 |
| 500347 | 300M Back cap medium | 5 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 520200 | Torch body air cooled | 1 |
| 2 | 500402 | 18CG Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch moudule green 1-button complete | 1 |
| For other switch options we refer to page 53 | |||
| 5 | 581010 | Heat shield aluminium | 1 |
| 6 | 5803502 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 1mtr black | 1 |
| 10 | 5810602 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 5810622 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (When torch is 4mtr) | 1MTR |
| 340505 | Suction hose 30mm black p/mtr (When torch is 8mtr) | 1MTR | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802302 | Inside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1MTR |
| 14 | 581068 | Adaptor Suction hose 25mm -> 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm -> 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine connection | 1 | |
| 17 | 306550 | Switch cable 4mtr (QuickConnect) | 1 |
| 306552 | Switch cable 8mtr (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 582004 | Leather Cover for 4mtr torch (optional) | 1 |
| 260027 | Leather Cover for 8mtr torch (optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8TE60014704650 | 8TE-30 Tig Extractor 4mtr 35-50mm?+tules+1/4’G | 1 |
| 8TE60014708650 | 8TE-30 Tig Extractor 8mtr 35-50mm2+tules+1/4’G | 1 |
| 8TE60014704990 | 8TE-30 Tig Extractor 4mtr CA Fronius 35-50mm?+tules | 1 |
| 8TE60014708990 | 8TE-30 Tig Extractor 8mtr CA Fronius 35-50mm2+tules | 1 |
| 8TE60014704600 | 8TE-30 Tig Extractor 4mtr M12x1+3/8’G+1/4’G | 1 |
| 8TE60014708600 | 8TE-30 Tia Extractor 8mtr M12x1+3/8’G+1/4’G | 1 |
| 8TE60014704800 | 8TE-30 Tig Extractor 4mtr 3/8’G+3/8’G+1/4’G | 1 |
| 8TE60014708800 | 8TE-30 Tig Extractor 8mtr 3/8’G+3/8’G+1/4’G | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 500650 | 13N20 Collet 0,5mm | 5 |
| 500652 | 13N21 Collet 1,0mm | 5 | |
| 500654 | 13N22 Collet 1,6mm | 5 | |
| 500656 | 70066 Collet 2,0mm | 5 | |
| 500658 | 13N23 Collet 2,4mm | 5 | |
| 500660 | 13N24 Collet 3,2mm | 5 | |
| B | 500750 | 13N25 Collet body 0,5mm | 5 |
| 500752 | 13N26 Collet body 1,0mm | 5 | |
| 500754 | 13N27 Collet body 1,6mm | 5 | |
| 500756 | 70067 Collet body 2,0mm | 5 | |
| 500758 | 13N28 Collet body 2,4mm | 5 | |
| 500760 | 13N29 Collet body 3,2mm | 5 | |
| C | 500500 | 13N08 Ceramic cup 6,4mm Gr. 4 | 10 |
| 500502 | 13N09 Ceramic cup 7,9mm Gr. 5 | 10 | |
| 500504 | 13N10 Ceramic cup 9,5mm Gr. 6 | 10 | |
| 500506 | 13N11 Ceramic cup 11,1mm Gr. 7 | 10 | |
| 500508 | 13N12 Ceramic cup 12,7 mm Gr. 8 | 10 | |
| 500510 | 13N13 Ceramic cup 15,9mm Gr. 10 | 10 | |
| D | 500344 | 41V35 Back cap medium | 5 |
| 500340 | 41V24 Back cap long (standard) | 5 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 520700 | Torch body water cooled | 1 |
| 2 | 500400 | 598882 Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch moudule green 1-button complete | 1 |
| For other switch options we refer to page 49 | |||
| 5 | 581000 | Heat shield aluminium | 1 |
| 6 | 5803002 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 1 mtr black | 1 |
| 10 | 5810602 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 5810622 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (When torch is 4mtr) | 1mtr |
| 340505 | Suction hose 30mm black p/mtr (When torch is 8mtr) | Imtr | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802202 | nside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1mtr |
| 14 | 581068 | Adaptor Suction hose 25mm -> 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm -> 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine con-nection | 1 | |
| 17 | 306550 | Switch cable 4mtr (QuickConnect) | 1 |
| 306552 | Switch cable 8mtr (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 582004 | Leather Cover for 4mtr torch (optional) | 1 |
| 260027 | Leather Cover for 8mtr torch (optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8TE65014704650 | 8TE-35 Tig Extractor 4mtr 35-50mm?+tulest1/4’G | 1 |
| 8TE65014708650 | 8TE-35 Tig Extractor 8mtr 35-50mm2+tules+ 1/4’G | 1 |
| 8TE65014704990 | 8TE-35 Tig Extractor 4mtr CA Fronius 35-50mm2+tules | 1 |
| 8TE65014708990 | 8TE-35 Tig Extractor 8mtr CA Fronius 35-50mm2+tules | 1 |
| 8TE65014704600 | 8TE-35 Tig Extractor 4mtr M12x1+3/8’G+1/4’G | 1 |
| 8TE65014708600 | 8TE-35 Tig Extractor 8mtr M12x1+3/8’G+1/4’G | 1 |
| 8TE65014704800 | 8TE-35 Tig Extractor 4mtr 3/8’G+3/8’G+1/4’G | 1 |
| 8TE65014708800 | 8TE-35 Tig Extractor 8mtr 3/8’G+3/8’G+1/4’G | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 500664 | 10N22 Collet 1.0mm | 5 |
| 500666 | 10N23 Collet 1.6mm | 5 | |
| 500668 | 70062 Collet 2.0mm | 5 | |
| 500670 | 10N24 Collet 2,4mm | 5 | |
| 500674 | 10N25 Collet 3.2mm | 5 | |
| 500676 | 54N20 Collet 4.0mm | 5 | |
| B | 500764 | 10N30 Collet body 1.0mm | 5 |
| 500766 | 10N31 Collet body 1.6mm | 5 | |
| 500768 | 70064 Collet body 2.0mm | 5 | |
| 500770 | 10N32 Collet body 2,4mm | 5 | |
| 500774 | 10N28 Collet body 3.2mm | 5 | |
| 500776 | 406488 Collet body 4.0mm | 5 | |
| C | 500520 | 10N50 Ceramic cup 6.4mm | 10 |
| 500522 | 10N49 Ceramic cup 7.9mm | 10 | |
| 500524 | 10N48 Ceramic cup 9,5mm | 10 | |
| 500526 | 10N47 Ceramic cup 11.1mm | 10 | |
| 500528 | 10N46 Ceramic cup 12.7 mm | 10 | |
| 500530 | 10N45 Ceramic cup 16.0mm | 10 | |
| 500532 | 10N44 Ceramic cup 19.0mm | 10 | |
| D | 500346 | 57Y02 Back cap long | 5 |
| 500347 | 300M Back cap medium | 5 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 520701 | Torch body water cooled | 1 |
| 2 | 500402 | 18CG Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch moudule green 1-button complete | 1 |
| For other switch options we refer to page 49 | 1 | ||
| 5 | 581010 | Heat shield aluminium | 1 |
| 6 | 5804102 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 1 mtr black | 1 |
| 10 | 5810602 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 5810622 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (When torch is 4mtr) | 1mtr |
| 340505 | Suction hose 30mm black p/mtr When torch is 8mtr) | 1mtr | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802202 | Inside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1mtr |
| 14 | 581068 | Adaptor Suction hose 25mm -> 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm -> 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine connection | 1 | |
| 17 | 306550 | Switch cable 4mtr (QuickConnect) | 1 |
| 306552 | Switch cable 8mtr (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 582004 | Leather Cover for 4mtr torch (optional) | 1 |
| 260027 | Leather Cover for 8mtr torch (optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
| Part No. | Description | Pack Qty |
|---|---|---|
| 8XE3020301000 | 8XE Extractor 300 3mtr gas cooled – 45° (standard) | 1 |
| 8XE3020401000 | 8XE Extractor 300 4mtr gas cooled – 45° (standard) | 1 |
| 8XE3020501000 | 8XE Extractor 300 5mtr gas cooled – 45° (standard) | 1 |
| 8XE3120301000 | 8XE Extractor 300 3mtr gas cooled – 30° | 1 |
| 8XE3120401000 | 8XE Extractor 300 4mtr gas cooled – 30° | 1 |
| 8XE3120501000 | 8XE Extractor 300 5mtr gas cooled – 30° | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 3937041 | Nozzle 8XC/8XE Extractor 14mm special | 5 |
| 3937042 | Nozzle 8XC/8XE Extractor 14mm special 10mm extended | 2 | |
| 3937043 | Nozzle 8XC/8XE Extractor 14mm special 30mm extended | 2 | |
| 3937045 | Nozzle 8XC/8XE Extractor 17mm special | 5 | |
| B | 399010 | Contact tip 8XC/8XE – 1,0 | 25 |
| 399012 | Contact tip 8XC/8XE – 1,2 | 25 | |
| 399016 | Contact tip 8XC/8XE – 1,6 | 25 | |
| 3990102 | Contact tip 8XC/8XE – 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XC/8XE – 1,2 Alu | 25 | |
| 3990101 | Contact tip 8XC/8XE – 1,0 CuCrZr | 25 | |
| 3990161 | Contact tip 8XC/8XE – 1,6 CuCrZr | 25 | |
| C | 39327210 | Tip adapter | 10 |
| 39327225 | Tip adapter 10mm extended | 5 | |
| 39327240 | Tip adapter 30mm extended | 5 | |
| D | 302535 | Plastic coated liner red (2,0/4,5) 3mtr – for 1.0/1.2mm wire | 1 |
| 302545 | Plastic coated liner red (2,0/4,5) 4mtr – for 1.0/1.2mm wire | 1 | |
| 302555 | Plastic coated liner red (2,0/4,5) 5mtr – for 1.0/1.2mm wire | 1 | |
| 303635 | Plastic coated liner yellow (2,5/4,5) 3mtr – for 1.6mm wire | 1 | |
| 303645 | Plastic coated liner yellow (2,5/4,5) 4mtr – for 1.6mm wire | 1 | |
| 303655 | Plastic coated liner yellow (2,5/4,5) 5mtr – for 1.6mm wire | 1 | |
| 302538 | Teflon red (2,0/4,0) 3mtr – for 1.0/1.2mm aluminium wire | 1 | |
| 302548 | Teflon red (2,0/4,0) 4mtr – for 1.0/1.2mm aluminium wire | 1 | |
| 302558 | Teflon red (2,0/4,0) 5mtr – for 1.0/1.2mm aluminium wire | 1 | |
| 303638 | Teflon yellow (2.7/4.7) 3mtr – for 1.6mm aluminium wire | 1 | |
| 303648 | Teflon yellow (2.7/4.7) 4mtr – for 1.6mm aluminium wire | 1 | |
| 303658 | Teflon yellow (2.7/4.7) 5mtr – for 1.6mm aluminium wire | 1 | |
| 304830 | Graphite liner black (2,3/4,7) 3mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304832 | Graphite liner black (2,3/4,7) 4mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304834 | Graphite liner black (2,3/4,7) 5mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304861 | Graphite liner black (2,3/4,7) 3mtr combiliner – for 1.6mm wire | 1 | |
| 304837 | Graphite liner black (2,3/4,7) 5mtr combiliner – for 1.6mm wire | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 39302045 | Swanneck 45° | 1 |
| 39302030 | Swanneck 30° | 1 | |
| 3950205 | PEEK ring to fix nozzle holder (not shown) | 5 | |
| 2 | 3950200 | Nozzle holder | 1 |
| 3 | 3950245 | Metal neck 45° | 1 |
| 3950246 | Metal neck 30° | 1 | |
| 4 | 391000 | Handle green/black complete with trigger | 1 |
| 5 | 3912009 | Trigger with spring | 1 |
| 391250 | Micro switch complete (not shown) | 1 | |
| 6 | 391810 | Cable support set with ball-and-socket joint | 1 |
| 7 | 259363X8 | Cable assembly 3mtr | 1 |
| 259364X8 | Cable assembly 4mtr | 1 | |
| 259365X8 | Cable assembly 5mtr | 1 | |
| 8 | 260018 | Leather-sheathing with Velcro 2mtr | 1 |
| 9 | 3402032 | Fume extraction hose 36-44mm 3mtr | 1 |
| 3402042 | Fume extraction hose 36-44mm 4mtr | 1 | |
| 3402052 | Fume extraction hose 36-44mm 5mtr | 1 | |
| 10 | 398030 | Hose connection | 1 |
| 10b | 3665501 | Inside ring Extractor hose | 1 |
| 11 | 398100 | Housing (Y-shape) for fume extraction hose | 1 |
| 12 | 398015 | Connection ring | 1 |
| 13 | 398010 | Housing set for central connector | 1 |
| 14 | 305298E23 | Central connector Euro | 1 |
| 15 | 8M9420 | Adaptor nut | 2 |
| 16 | 305315 | Liner positioner nut | 10 |
| 17 | 398110 | Hose adapter | 1 |
| 18 | 406050 | Gasflow meter | 1 |
| 19 | 371208 | Tool set (brush and multitool) | 1 |
| 20 | 371300 | Airflow meter Extractor | 1 |
| 320300 | Ceramic dry film spray 400 ml (not shown) | 12 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
| Part No. | Description | Pack Qty |
|---|---|---|
| 8XE4028301000 | 8XE Extractor 400 3mtr gas cooled – 45° (standard) | 1 |
| 8XE4028401000 | 8XE Extractor 400 4mtr gas cooled – 45° (standard) | 1 |
| 8XE4028501000 | 8XE Extractor 400 5mtr gas cooled – 45° (standard) | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 3937041 | Nozzle 8XC/8XE Extractor 14mm special | 5 |
| 3937045 | Nozzle 8XC/8XE Extractor 17mm special | 5 | |
| B | 399010 | Contact tip 8XC/8XE – 1,0 | 25 |
| 399012 | Contact tip 8XC/8XE – 1,2 | 25 | |
| 399016 | Contact tip 8XC/8XE – 1,6 | 25 | |
| 3990102 | Contact tip 8XC/8XE – 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XC/8XE – 1,2 Alu | 25 | |
| 3990101 | Contact tip 8XC/8XE – 1,0 CuCrZr | 25 | |
| 3990121 | Contact tip 8XC/8XE – 1,2 CuCrZr | 25 | |
| 3990161 | Contact tip 8XC/8XE – 1,6 CuCrZr | 25 | |
| C | 39327310 | Tip adapter | 10 |
| D | 303793 | Plastic coated liner black INOX (2.0/5.4) 3mtr – for 1.0/1.2mm wire | 1 |
| 303794 | Plastic coated liner black INOX (2.0/5.4) 4mtr – for 1.0/1.2mm wire | 1 | |
| 303795 | Plastic coated liner black INOX (2.0/5.4) 5mtr – for 1.0/1.2mm wire | 1 | |
| 303763 | Plastic coated liner grey INOX (2.4/5.6) 3mtr – for 1.6mm wire | 1 | |
| 303764 | Plastic coated liner grey INOX (2.4/5.6) 4mtr – for 1.6mm wire | 1 | |
| 303765 | Plastic coated liner grey INOX (2.4/5.6) 5mtr – for 1.6mm wire | 1 | |
| 304830 | Graphite liner black (2.0/4.0) 3mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304831 | Graphite liner black (2.0/4.0) 4mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304832 | Graphite liner black (2.0/4.0) 5mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 3048351 | Graphite liner black (2.3/4.7) 3mtr combiliner – for 1.6mm wire | 1 | |
| 3048361 | Graphite liner black (2.3/4.7) 4mtr combiliner – for 1.6mm wire | 1 | |
| 3048371 | Graphite liner black (2.3/4.7) 5mtr combiliner – for 1.6mm wire | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 39302145 | Swanneck 45° | 1 |
| 3950205 | PEEK ring to fix nozzle holder (not shown) | 5 | |
| 2 | 3950200 | Nozzle holder | 1 |
| 3 | 3950245 | Metal neck 45° | 1 |
| 4 | 391000 | Handle green/black complete with trigger | 1 |
| 5 | 3912009 | Trigger with spring | 1 |
| 391250 | Micro switch complete (not shown) | 1 | |
| 6 | 391810 | Cable support set with ball-and-socket joint | 1 |
| 7 | 259463X8 | Cable assembly 3mtr | 1 |
| 259464X8 | Cable assembly 4mtr | 1 | |
| 259465X8 | Cable assembly 5mtr | 1 | |
| 8 | 260018 | Leather-sheathing with Velcro 2mtr | 1 |
| 9 | 3402032 | Fume extraction hose 36-44mm 3mtr | 1 |
| 3402042 | Fume extraction hose 36-44mm 4mtr | 1 | |
| 3402052 | Fume extraction hose 36-44mm 5mtr | 1 | |
| 10 | 398030 | Hose connection | 1 |
| 10b | 3665501 | Inside ring Extractor hose | 1 |
| 11 | 398100 | Housing (Y-shape) for fume extraction hose | 1 |
| 12 | 398015 | Connection ring | 1 |
| 13 | 398010 | Housing set for central connector | 1 |
| 14 | 3052988 | Central connector Euro | 1 |
| 15 | 8M9420 | Adaptor nut | 2 |
| 16 | 305315 | Liner positioner nut | 10 |
| 17 | 398110 | Hose adapter | 1 |
| 18 | 406050 | Gasflow meter | 1 |
| 19 | 371208 | Tool set (brush and multitool) | 1 |
| 20 | 371300 | Airflow meter Extractor | 1 |
| 320300 | Ceramic dry film spray 400 ml (not shown) | 12 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
| Part No. | Description | Pack Qty |
|---|---|---|
| 8XE5060301000 | 8XE Extractor 500 3mtr gas cooled – 45° (standard) | 1 |
| 8XE5060401000 | 8XE Extractor 500 4mtr gas cooled – 45° (standard) | 1 |
| 8XE5060501000 | 8XE Extractor 500 5mtr gas cooled – 45° (standard) | 1 |
| 8XE5160301000 | 8XE Extractor 500 3mtr gas cooled – 30° | 1 |
| 8XE5160401000 | 8XE Extractor 500 4mtr gas cooled – 30° | 1 |
| 8XE5160501000 | 8XE Extractor 500 5mtr gas cooled – 30° | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 3937041 | Nozzle 8XC / 8XE Extractor 14mm special | 5 |
| 3937042 | Nozzle 8XC / 8XE Extractor 14mm special 10mm extended | 2 | |
| 3937043 | Nozzle 8XC / 8XE Extractor 14mm special 30mm extended | 2 | |
| 3937045 | Nozzle 8XC / 8XE Extractor 17mm special | 5 | |
| B | 399010 | Contact tip 8XC / 8XE – 1,0 | 25 |
| 399012 | Contact tip 8XC / 8XE – 1,2 | 25 | |
| 399016 | Contact tip 8XC / 8XE – 1,6 | 25 | |
| 3990102 | Contact tip 8XC / 8XE 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XC / 8XE – 1,2 Alu | 25 | |
| 3990101 | Contact tip 8XC / 8XE – 1,0 CuCrZr | 25 | |
| 3990121 | Contact tip 8XC / 8XE – 1,2 CuCrZr | 25 | |
| 3990161 | Contact tip 8XC / 8XE 1,6 CuCrZr | 25 | |
| C | 39327210 | Tip adapter | 10 |
| 39327225 | Tip adapter 10mm extended | 5 | |
| 39327240 | Tip adapter 30mm extended | 5 | |
| D | 302535 | Plastic coated liner red (2,0/4,5) 3mtr -for 1,0/1,2mm wire | 1 |
| 302545 | Plastic coated liner red (2,0/4,5) 4mtr -for 1,0/1,2mm wire | 1 | |
| 302555 | Plastic coated liner red (2,0/4,5) 5mtr -for 1,0/1,2mm wire | 1 | |
| 303635 | Plastic coated liner yellow (2,5/4,5) 3mtr -for 1,6mm wire | 1 | |
| 303645 | Plastic coated liner yellow (2,5/4,5) 4mtr – for 1,6mm wire | 1 | |
| 303655 | Plastic coated liner yellow (2,5/4,5)) 5mtr -for 1,6mm wire | 1 | |
| 302538 | Teflon red (2.0/4.0) 3mtr – for 1,0-1,2mm aluminium wire | 1 | |
| 302548 | Teflon red (2.0/4.0) 4mtr – for 1,0-1,2mm aluminium wire | 1 | |
| 302558 | Teflon red (2.0/4.0) 5mtr – for 1,0-1,2mm aluminium wire | 1 | |
| 303638 | Teflon yellow (2.7/4.7) 3mtr – for 1,6mm aluminium wire | 1 | |
| 303648 | Teflon yellow (2.7/4.7) 4mtr – for 1,6mm aluminium wire | 1 | |
| 303658 | Teflon yellow (2.7/4.7) 5mtr – for 1,6mm aluminium wire | 1 | |
| 304830 | Graphite liner black (2,0/4,0) 3mtr combiliner- for 1,0/1,2mm wire | 1 | |
| 304831 | Graphite liner black (2,0/4,0) 4mtr combiliner- for 1,0/1,2mm wire | 1 | |
| 304832 | Graphite liner black (2,0/4,0) 5mtr combiliner- for 1,0/1,2mm wire | 1 | |
| 3048351 | Graphite liner black (2,3/4,7) 3mtr combiliner- for 1,6mm wire | 1 | |
| 3048361 | Graphite liner black (2,3/4,7) 4mtr combiliner- for 1,6mm wire | 1 | |
| 3048371 | Graphite liner black (2,3/4,7) 5mtr combiliner- for 1,6mm wire | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 39303045 | Swanneck 45° | 1 |
| 39303030 | Swanneck 30° | 1 | |
| 3950205 | PEEK ring to fix nozzle holder (not shown) | 5 | |
| 2 | 3950200 | Nozzle holder | 1 |
| 3 | 3950245 | Metal neck 45° | 1 |
| 3950246 | Metal neck 30° | 1 | |
| 4 | 391000 | Handle green/black complete with trigger | 1 |
| 5 | 3912009 | Trigger with spring | 1 |
| 391250 | Micro switch complete (not shown) | 1 | |
| 6 | 391810 | Cable support set with ball-and-socket joint | 1 |
| 7 | 306505 | Switch cable 1×0,75mm² per mtr | 100 |
| 8 | 258513X8 | Power/water cable 3mtr | 1 |
| 258514X8 | Power/water cable 4mtr | 1 | |
| 258515X8 | Power/water cable 5mtr | 1 | |
| 9 | 2585313XE | Outer liner 3mtr | 1 |
| 2585314XE | Outer liner 4mtr | 1 | |
| 2585315XE | Outer liner 5mtr | 1 | |
| 10 | 258535 | Water inlet hose 5x8mm blue per mtr | 100 |
| 258566 | Water outlet hose 5x8mm red per mtr | 100 | |
| 11 | 260018 | Leather-sheathing with Velcro 2mtr | 1 |
| 12 | 3402032 | Fume extraction hose 36-44mm 3mtr | 1 |
| 3402042 | Fume extraction hose 36-44mm 4mtr | 1 | |
| 3402052 | Fume extraction hose 36-44mm 5mtr | 1 | |
| 13 | 398030 | Hose connection | 1 |
| 13b | 3665501 | Inside ring Extractor hose | 1 |
| 14 | 398100 | Housing (Y-shape) for fume extraction hose | 1 |
| 15 | 398015 | Connection ring | 1 |
| 16 | 398010 | Housing set for central connector | 1 |
| 17 | 350881 | Water hose guide | 1 |
| 18 | 305304E23 | Central connector Euro | 1 |
| 19 | 8M9420 | Adaptor nut | 2 |
| 20 | 305315 | Liner positioner nut | 10 |
| 21 | 398110 | Hose adapter | 1 |
| 22 | 258701 | Waterstop red | 10 |
| 23 | 258702 | Waterstop bluer | 10 |
| 24 | 406050 | Gasflow meter | 1 |
| 25 | 371208 | Tool set (brush and multitool) | 1 |
| 26 | 371300 | Airflow meter Extractor | 1 |
| 320300 | Ceramic dry film spray 400 ml (not shown) | 12 |
North America
Technical Specification
Replacement Part
TECHNICAL DOCUMENT
8TE 17 TIG
AIR COOLED
DC – 140 AMP
AC/DC – 100 AMP
Duty Cycle – 35%
8TE 30 TIG
WATER COOLED
2 DC – 320 AMP
AC/DC – 230 AMP
Duty Cycle – 100%
8TE 35 TIG
WATER COOLED
DC – 320 AMP
AC/DC – 230 AMP
Duty Cycle – 100%
8TE-17
8TE-30
8TE-35
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|
| 8TE20010504350 | 8TE-17 Tig Extractor 13ft (4mtr) 10-25mm2+1/4″G | 1 |
| 8TE20010508350 | 8TE-17 Tig Extractor 26ft (8mtr) 10-25mm2+1/4″G | 1 |
| 8TE20010504370 | 8TE-17 Tig Extractor 13ft (4mtr) 35-50mm2+1/4″G | 1 |
| 8TE20010508370 | 8TE-17 Tig Extractor 26ft (8mtr) 35-50mm2+1/4″G | 1 |
| 8TE20010504340 | 8TE-17 Tig Extractor 13ft (4mtr) CA Fronius 35-50mm2 | 1 |
| 8TE20010508340 | 8TE-17 Tig Extractor 26ft (8mtr) CA Fronius 35-50mm2 | 1 |
| 8TE20010504000 | 8TE-17 Tig Extractor 13ft (4mtr) M12x1 | 1 |
| 8TE20010508000 | 8TE-17 Tig Extractor 26ft (8mtr) M12x1 | 1 |
| 8TE20010504210 | 8TE-17 Tig Extractor 13ft (4mtr) 1/4″G | 1 |
| 8TE20010508210 | 8TE-17 Tig Extractor 26ft (8mtr) 1/4″G | 1 |
| 8TE20010504220 | 8TE-17 Tig Extractor 13ft (4mtr) 3/8″G | 1 |
| 8TE20010508220 | 8TE-17 Tig Extractor 26ft (8mtr) 3/8″G | 1 |
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| A | 500664 | 10N22 Collet 1.0mm | 5 |
| 500666 | 10N23 Collet 1.6mm | 5 | |
| 500668 | 70062 Collet 2.0mm | 5 | |
| 500670 | 10N24 Collet 2.4mm | 5 | |
| 500674 | 10N25 Collet 3.2mm | 5 | |
| 500676 | 54N20 Collet 4.0mm | 5 | |
| B | 500764 | 10N30 Collet body 1.0mm | 5 |
| 500766 | 10N31 Collet body 1.6mm | 5 | |
| 500768 | 70064 Collet body 2.0mm | 5 | |
| 500770 | 10N32 Collet body 2.4mm | 5 | |
| 500774 | 10N28 Collet body 3.2mm | 5 | |
| 500776 | 406488 Collet body 4.0mm | 5 | |
| C | 500520 | 10N50 Ceramic cup 6.4mm | 10 |
| 500522 | 10N49 Ceramic cup 7.9mm | 10 | |
| 500524 | 10N48 Ceramic cup 9.5mm | 10 | |
| 500526 | 10N47 Ceramic cup 11.1mm | 10 | |
| 500530 | 10N46 Ceramic cup 12.7mm | 10 | |
| 500530 | 10N45 Ceramic cup 16.0mm | 10 | |
| 500532 | 10N44 Ceramic cup 19.0mm | 10 | |
| D | 500346 | 57702 Back cap long | 5 |
| 500347 | 300M Back cap medium | 5 |
×
![]()
| Item | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 520200 | Gun body air cooled | 1 |
| 2 | 500402 | 18CG Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch mouldle green 1-button complete | 1 |
| 5 | 581010 | Heat shield aluminium | 1 |
| 6 | 5803502 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 3ft (1mtr) black | 1 |
| 442352 | Suction hose cover 3ft (1mtr) (not shown) | 1 | |
| 10 | 5810602 | Connection part for 25mm hose (for 13ft/4mtr gun) | 1 |
| 5810622 | Connection part for 30mm hose (for 26ft/8mtr gun) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (for 13ft/4mtr gun) | 1mtr |
| 340505 | Suction hose 30mm black p/mtr (for 26ft/8mtr gun) | 1mtr | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802202 | Inside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1mtr |
| 14 | 581068 | Adaptor Suction hose 25mm -> 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm -> 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine connection | 1 | |
| 17 | 306550 | Switch cable 13ft (4mtr) (QuickConnect) | 1 |
| 306552 | Switch cable 26ft (8mtr) (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 5820004 | Leather cover for 13ft (4mtr) gun (optional) | 1 |
| 23 | 260027 | Leather cover for 26ft (8mtr) gun (optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|
| 8TE60014704650 | 8TE-30 Tig Extractor 13ft (4mtr) 35-50mm²+tules+1/4″G | 1 |
| 8TE60014708650 | 8TE-30 Tig Extractor 26ft (8mtr) 35-50mm²+tules+1/4″G | 1 |
| 8TE60014704990 | 8TE-30 Tig Extractor 13ft (4mtr) CA Fronius 35-50mm²+tules | 1 |
| 8TE60014708990 | 8TE-30 Tig Extractor 26ft (8mtr) CA Fronius 35-50mm²+tules | 1 |
| 8TE60014704600 | 8TE-30 Tig Extractor 13ft (4mtr) M12x1+3/8″G+1/4″G | 1 |
| 8TE60014708600 | 8TE-30 Tig Extractor 26ft (8mtr) M12x1+3/8″G+1/4″G | 1 |
| 8TE60014704800 | 8TE-30 Tig Extractor 13ft (4mtr) 3/8″G+3/8″G+1/4″G | 1 |
| 8TE60014708800 | 8TE-30 Tig Extractor 26ft (8mtr) 3/8″G+3/8″G+1/4″G | 1 |
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| A | 500650 | 13N20 Collet 0.5mm | 5 |
| 500652 | 13N21 Collet 1.0mm | 5 | |
| 500654 | 13N22 Collet 1.6mm | 5 | |
| 500656 | 70066 Collet 2.0mm | 5 | |
| 500658 | 13N23 Collet 2.4mm (standard) | 5 | |
| 500660 | 13N24 Collet 3.2mm | 5 | |
| B | 500750 | 13N25 Collet body 0.5mm | 5 |
| 500752 | 13N26 Collet body 1.0mm | 5 | |
| 500754 | 13N27 Collet body 1.6mm | 5 | |
| 500756 | 70067 Collet body 2.0mm | 5 | |
| 500758 | 13N28 Collet body 2.4mm (standard) | 5 | |
| 500760 | 13N29 Collet body 3.2mm | 5 | |
| C | 500500 | 13N08 Ceramic cup 6.4mm Gr. 4 | 10 |
| 500502 | 13N09 Ceramic cup 7.9mm Gr. 5 | 10 | |
| 500504 | 13N10 Ceramic cup 9.5mm Gr. 6 (standard) | 10 | |
| 500506 | 13N11 Ceramic cup 11.1mm Gr. 7 | 10 | |
| 500508 | 13N12 Ceramic cup 12.7mm Gr. 8 | 10 | |
| 500510 | 13N13 Ceramic cup 15.9mm Gr. 10 | 10 | |
| D | 500344 | 41V35 Back cap medium | 5 |
| 500340 | 41V24 Back cap long (standard) | 5 |
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| 1 | 520700 | Gun body water cooled | 1 |
| 2 | 500400 | 598882 Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch mouldle green 1-button complete | 1 |
| For other switch options we refer to page 43 | |||
| 5 | 581000 | Heat shield aluminum | 1 |
| 6 | 5803002 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 3ft (1mtr) black | 1 |
| 442352 | Suction hose cover 3ft (1mtr) (not shown) | 1 | |
| 10 | 5810602 | Connection part for 25mm hose (for 13ft/4mtr gun) | 1 |
| 5810622 | Connection part for 30mm hose (for 26ft/8mtr gun) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (for 13ft/4mtr gun) | 1mr |
| 340505 | Suction hose 30mm black p/mtr (for 26ft/8mtr gun) | 1mr | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802202 | Inside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (for 26ft/8mtr gun) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1mr |
| 14 | 581068 | Adaptor Suction hose 25mm -> 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm -> 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine connection | 1 | |
| 17 | 306550 | Switch cable 13ft (4mtr) (QuickConnect) | 1 |
| 306552 | Switch cable 26ft (8mtr) (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 5820004 | Leather cover for 13ft (4mtr) gun (optional) | 1 |
| 23 | 260027 | Leather cover for 26ft (8mtr) gun (optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|
| 8TE65014704650 | 8TE-35 Tig Extractor 13ft (4mtr) 35-50mm²+tules+1/4’G | 1 |
| 8TE65014708650 | 8TE-35 Tig Extractor 26ft (8mtr) 35-50mm²+tules+1/4’G | 1 |
| 8TE65014704990 | 8TE-35 Tig Extractor 13ft (4mtr) CA Fronius 35-50mm²+tules | 1 |
| 8TE65014708990 | 8TE-35 Tig Extractor 26ft (8mtr) CA Fronius 35-50mm²+tules | 1 |
| 8TE65014704600 | 8TE-35 Tig Extractor 13ft (4mtr) M12x1+3/8’G+1/4’G | 1 |
| 8TE65014708600 | 8TE-35 Tig Extractor 26ft (8mtr) M12x1+3/8’G+1/4’G | 1 |
| 8TE65014704800 | 8TE-35 Tig Extractor 13ft (4mtr)3/8’G+3/8’G+1/4’G | 1 |
| 8TE65014708800 | 8TE-35 Tig Extractor 26ft (8mtr) 3/8’G+3/8’G+1/4’GG | 1 |
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| A | 500664 | 10N22 Collet 1.0mm | 5 |
| 500666 | 10N23 Collet 1.6mm | 5 | |
| 500668 | 70062 Collet 2.0mm | 5 | |
| 500670 | 10N24 Collet 2.4mm | 5 | |
| 500674 | 10N25 Collet 3.2mm | 5 | |
| 500676 | 54N20 Collet 4.0mm | 5 | |
| B | 500764 | 10N30 Collet body 1.0mm | 5 |
| 500766 | 10N31 Collet body 1.6mm | 5 | |
| 500768 | 70064 Collet body 2.0mm | 5 | |
| 500770 | 10N32 Collet body 2.4mm | 5 | |
| 500774 | 10N28 Collet body 3.2mm | 5 | |
| 500776 | 406488 Collet body 4.0mm | 5 | |
| C | 500520 | 10N50 Ceramic cup 6.4mm | 10 |
| 500522 | 10N49 Ceramic cup 7.9mm | 10 | |
| 500524 | 10N48 Ceramic cup 9.5mm | 10 | |
| 500526 | 10N47 Ceramic cup 11.1mm | 10 | |
| 500530 | 10N46 Ceramic cup 12.7mm | 10 | |
| 500530 | 10N45 Ceramic cup 16.0mm | 10 | |
| 500532 | 10N44 Ceramic cup 19.0mm | 10 | |
| D | 500346 | 57Y02 Back cap long | 5 |
| 500347 | 300M Back cap medium | 5 |
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| 1 | 520701 | Torch body water cooled | 1 |
| 2 | 500402 | 18CG Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch mouldle green 1-button complete | 1 |
| For other switch options we refer to page 43 | |||
| 5 | 581000 | Heat shield aluminium | 1 |
| 6 | 5804102 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 1mtr black | 1 |
| 442352 | Suction hose cover 1mtr (Not shown) | 1 | |
| 10 | 5810602 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 5810622 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (When torch is 4mtr) | 1mtr |
| 340505 | Suction hose 30mm black p/mtr (When torch is 8mtr) | 1mtr | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802202 | Inside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1mtr |
| 14 | 581068 | Adaptor Suction hose 25mm -> 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm -> 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine connection | 1 | |
| 17 | 306550 | Switch cable 4mtr (QuickConnect) | 1 |
| 306552 | Switch cable 8mtr (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 5820004 | Leather Cover for 4mtr torch (optional) | 1 |
| 23 | 260027 | Leather Cover for 8mtr torch (optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
| Part No. | Description | Pack Qty |
|---|---|---|
| 8XE3020301000 | 8XE Extractor 300 3mtr gas cooled – 45° (standard) | 1 |
| 8XE3020401000 | 8XE Extractor 300 4mtr gas cooled – 45° (standard) | 1 |
| 8XE3020501000 | 8XE Extractor 300 5mtr gas cooled – 45° (standard) | 1 |
| 8XE3120301000 | 8XE Extractor 300 3mtr gas cooled – 30° | 1 |
| 8XE3120401000 | 8XE Extractor 300 4mtr gas cooled – 30° | 1 |
| 8XE3120501000 | 8XE Extractor 300 5mtr gas cooled – 30° | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 3937041 | Nozzle 8XC/8XE Extractor 14mm special | 5 |
| 3937042 | Nozzle 8XC/8XE Extractor 14mm special 10mm extended | 2 | |
| 3937043 | Nozzle 8XC/8XE Extractor 14mm special 30mm extended | 2 | |
| 3937045 | Nozzle 8XC/8XE Extractor 17mm special | 5 | |
| B | 399010 | Contact tip 8XC/8XE – 1,0 | 25 |
| 399012 | Contact tip 8XC/8XE – 1,2 | 25 | |
| 399016 | Contact tip 8XC/8XE – 1,6 | 25 | |
| 3990102 | Contact tip 8XC/8XE – 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XC/8XE – 1,2 Alu | 25 | |
| 3990101 | Contact tip 8XC/8XE – 1,0 CuCrZr | 25 | |
| 3990161 | Contact tip 8XC/8XE – 1,6 CuCrZr | 25 | |
| C | 39327210 | Tip adapter | 10 |
| 39327225 | Tip adapter 10mm extended | 5 | |
| 39327240 | Tip adapter 30mm extended | 5 | |
| D | 302535 | Plastic coated liner red (2,0/4,5) 3mtr – for 1.0/1.2mm wire | 1 |
| 302545 | Plastic coated liner red (2,0/4,5) 4mtr – for 1.0/1.2mm wire | 1 | |
| 302555 | Plastic coated liner red (2,0/4,5) 5mtr – for 1.0/1.2mm wire | 1 | |
| 303635 | Plastic coated liner yellow (2,5/4,5) 3mtr – for 1.6mm wire | 1 | |
| 303645 | Plastic coated liner yellow (2,5/4,5) 4mtr – for 1.6mm wire | 1 | |
| 303655 | Plastic coated liner yellow (2,5/4,5) 5mtr – for 1.6mm wire | 1 | |
| 302538 | Teflon red (2,0/4,0) 3mtr – for 1.0/1.2mm aluminium wire | 1 | |
| 302548 | Teflon red (2,0/4,0) 4mtr – for 1.0/1.2mm aluminium wire | 1 | |
| 302558 | Teflon red (2,0/4,0) 5mtr – for 1.0/1.2mm aluminium wire | 1 | |
| 303638 | Teflon yellow (2.7/4.7) 3mtr – for 1.6mm aluminium wire | 1 | |
| 303648 | Teflon yellow (2.7/4.7) 4mtr – for 1.6mm aluminium wire | 1 | |
| 303658 | Teflon yellow (2.7/4.7) 5mtr – for 1.6mm aluminium wire | 1 | |
| 304830 | Graphite liner black (2,3/4,7) 3mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304832 | Graphite liner black (2,3/4,7) 4mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304834 | Graphite liner black (2,3/4,7) 5mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304861 | Graphite liner black (2,3/4,7) 3mtr combiliner – for 1.6mm wire | 1 | |
| 304837 | Graphite liner black (2,3/4,7) 5mtr combiliner – for 1.6mm wire | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 39302045 | Swanneck 45° | 1 |
| 39302030 | Swanneck 30° | 1 | |
| 3950205 | PEEK ring to fix nozzle holder (not shown) | 5 | |
| 2 | 3950200 | Nozzle holder | 1 |
| 3 | 3950245 | Metal neck 45° | 1 |
| 3950246 | Metal neck 30° | 1 | |
| 4 | 391000 | Handle green/black complete with trigger | 1 |
| 5 | 3912009 | Trigger with spring | 1 |
| 391250 | Micro switch complete (not shown) | 1 | |
| 6 | 391810 | Cable support set with ball-and-socket joint | 1 |
| 7 | 259363X8 | Cable assembly 3mtr | 1 |
| 259364X8 | Cable assembly 4mtr | 1 | |
| 259365X8 | Cable assembly 5mtr | 1 | |
| 8 | 260018 | Leather-sheathing with Velcro 2mtr | 1 |
| 9 | 3402032 | Fume extraction hose 36-44mm 3mtr | 1 |
| 3402042 | Fume extraction hose 36-44mm 4mtr | 1 | |
| 3402052 | Fume extraction hose 36-44mm 5mtr | 1 | |
| 10 | 398030 | Hose connection | 1 |
| 10b | 3665501 | Inside ring Extractor hose | 1 |
| 11 | 398100 | Housing (Y-shape) for fume extraction hose | 1 |
| 12 | 398015 | Connection ring | 1 |
| 13 | 398010 | Housing set for central connector | 1 |
| 14 | 305298E23 | Central connector Euro | 1 |
| 15 | 8M9420 | Adaptor nut | 2 |
| 16 | 305315 | Liner positioner nut | 10 |
| 17 | 398110 | Hose adapter | 1 |
| 18 | 406050 | Gasflow meter | 1 |
| 19 | 371208 | Tool set (brush and multitool) | 1 |
| 20 | 371300 | Airflow meter Extractor | 1 |
| 320300 | Ceramic dry film spray 400 ml (not shown) | 12 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
| Part No. | Description | Pack Qty |
|---|---|---|
| 8XE4028301000 | 8XE Extractor 400 3mtr gas cooled – 45° (standard) | 1 |
| 8XE4028401000 | 8XE Extractor 400 4mtr gas cooled – 45° (standard) | 1 |
| 8XE4028501000 | 8XE Extractor 400 5mtr gas cooled – 45° (standard) | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 3937041 | Nozzle 8XC/8XE Extractor 14mm special | 5 |
| 3937045 | Nozzle 8XC/8XE Extractor 17mm special | 5 | |
| B | 399010 | Contact tip 8XC/8XE – 1,0 | 25 |
| 399012 | Contact tip 8XC/8XE – 1,2 | 25 | |
| 399016 | Contact tip 8XC/8XE – 1,6 | 25 | |
| 3990102 | Contact tip 8XC/8XE – 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XC/8XE – 1,2 Alu | 25 | |
| 3990101 | Contact tip 8XC/8XE – 1,0 CuCrZr | 25 | |
| 3990121 | Contact tip 8XC/8XE – 1,2 CuCrZr | 25 | |
| 3990161 | Contact tip 8XC/8XE – 1,6 CuCrZr | 25 | |
| C | 39327310 | Tip adapter | 10 |
| D | 303793 | Plastic coated liner black INOX (2.0/5.4) 3mtr – for 1.0/1.2mm wire | 1 |
| 303794 | Plastic coated liner black INOX (2.0/5.4) 4mtr – for 1.0/1.2mm wire | 1 | |
| 303795 | Plastic coated liner black INOX (2.0/5.4) 5mtr – for 1.0/1.2mm wire | 1 | |
| 303763 | Plastic coated liner grey INOX (2.4/5.6) 3mtr – for 1.6mm wire | 1 | |
| 303764 | Plastic coated liner grey INOX (2.4/5.6) 4mtr – for 1.6mm wire | 1 | |
| 303765 | Plastic coated liner grey INOX (2.4/5.6) 5mtr – for 1.6mm wire | 1 | |
| 304830 | Graphite liner black (2.0/4.0) 3mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304831 | Graphite liner black (2.0/4.0) 4mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 304832 | Graphite liner black (2.0/4.0) 5mtr combiliner – for 1.0/1.2mm wire | 1 | |
| 3048351 | Graphite liner black (2.3/4.7) 3mtr combiliner – for 1.6mm wire | 1 | |
| 3048361 | Graphite liner black (2.3/4.7) 4mtr combiliner – for 1.6mm wire | 1 | |
| 3048371 | Graphite liner black (2.3/4.7) 5mtr combiliner – for 1.6mm wire | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 39302145 | Swanneck 45° | 1 |
| 3950205 | PEEK ring to fix nozzle holder (not shown) | 5 | |
| 2 | 3950200 | Nozzle holder | 1 |
| 3 | 3950245 | Metal neck 45° | 1 |
| 4 | 391000 | Handle green/black complete with trigger | 1 |
| 5 | 3912009 | Trigger with spring | 1 |
| 391250 | Micro switch complete (not shown) | 1 | |
| 6 | 391810 | Cable support set with ball-and-socket joint | 1 |
| 7 | 259463X8 | Cable assembly 3mtr | 1 |
| 259464X8 | Cable assembly 4mtr | 1 | |
| 259465X8 | Cable assembly 5mtr | 1 | |
| 8 | 260018 | Leather-sheathing with Velcro 2mtr | 1 |
| 9 | 3402032 | Fume extraction hose 36-44mm 3mtr | 1 |
| 3402042 | Fume extraction hose 36-44mm 4mtr | 1 | |
| 3402052 | Fume extraction hose 36-44mm 5mtr | 1 | |
| 10 | 398030 | Hose connection | 1 |
| 10b | 3665501 | Inside ring Extractor hose | 1 |
| 11 | 398100 | Housing (Y-shape) for fume extraction hose | 1 |
| 12 | 398015 | Connection ring | 1 |
| 13 | 398010 | Housing set for central connector | 1 |
| 14 | 3052988 | Central connector Euro | 1 |
| 15 | 8M9420 | Adaptor nut | 2 |
| 16 | 305315 | Liner positioner nut | 10 |
| 17 | 398110 | Hose adapter | 1 |
| 18 | 406050 | Gasflow meter | 1 |
| 19 | 371208 | Tool set (brush and multitool) | 1 |
| 20 | 371300 | Airflow meter Extractor | 1 |
| 320300 | Ceramic dry film spray 400 ml (not shown) | 12 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
| Part No. | Description | Pack Qty |
|---|---|---|
| 8XE5060301000 | 8XE Extractor 500 3mtr gas cooled – 45° (standard) | 1 |
| 8XE5060401000 | 8XE Extractor 500 4mtr gas cooled – 45° (standard) | 1 |
| 8XE5060501000 | 8XE Extractor 500 5mtr gas cooled – 45° (standard) | 1 |
| 8XE5160301000 | 8XE Extractor 500 3mtr gas cooled – 30° | 1 |
| 8XE5160401000 | 8XE Extractor 500 4mtr gas cooled – 30° | 1 |
| 8XE5160501000 | 8XE Extractor 500 5mtr gas cooled – 30° | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 3937041 | Nozzle 8XC / 8XE Extractor 14mm special | 5 |
| 3937042 | Nozzle 8XC / 8XE Extractor 14mm special 10mm extended | 2 | |
| 3937043 | Nozzle 8XC / 8XE Extractor 14mm special 30mm extended | 2 | |
| 3937045 | Nozzle 8XC / 8XE Extractor 17mm special | 5 | |
| B | 399010 | Contact tip 8XC / 8XE – 1,0 | 25 |
| 399012 | Contact tip 8XC / 8XE – 1,2 | 25 | |
| 399016 | Contact tip 8XC / 8XE – 1,6 | 25 | |
| 3990102 | Contact tip 8XC / 8XE 1,0 Alu | 25 | |
| 3990122 | Contact tip 8XC / 8XE – 1,2 Alu | 25 | |
| 3990101 | Contact tip 8XC / 8XE – 1,0 CuCrZr | 25 | |
| 3990121 | Contact tip 8XC / 8XE – 1,2 CuCrZr | 25 | |
| 3990161 | Contact tip 8XC / 8XE 1,6 CuCrZr | 25 | |
| C | 39327210 | Tip adapter | 10 |
| 39327225 | Tip adapter 10mm extended | 5 | |
| 39327240 | Tip adapter 30mm extended | 5 | |
| D | 302535 | Plastic coated liner red (2,0/4,5) 3mtr -for 1,0/1,2mm wire | 1 |
| 302545 | Plastic coated liner red (2,0/4,5) 4mtr -for 1,0/1,2mm wire | 1 | |
| 302555 | Plastic coated liner red (2,0/4,5) 5mtr -for 1,0/1,2mm wire | 1 | |
| 303635 | Plastic coated liner yellow (2,5/4,5) 3mtr -for 1,6mm wire | 1 | |
| 303645 | Plastic coated liner yellow (2,5/4,5) 4mtr – for 1,6mm wire | 1 | |
| 303655 | Plastic coated liner yellow (2,5/4,5)) 5mtr -for 1,6mm wire | 1 | |
| 302538 | Teflon red (2.0/4.0) 3mtr – for 1,0-1,2mm aluminium wire | 1 | |
| 302548 | Teflon red (2.0/4.0) 4mtr – for 1,0-1,2mm aluminium wire | 1 | |
| 302558 | Teflon red (2.0/4.0) 5mtr – for 1,0-1,2mm aluminium wire | 1 | |
| 303638 | Teflon yellow (2.7/4.7) 3mtr – for 1,6mm aluminium wire | 1 | |
| 303648 | Teflon yellow (2.7/4.7) 4mtr – for 1,6mm aluminium wire | 1 | |
| 303658 | Teflon yellow (2.7/4.7) 5mtr – for 1,6mm aluminium wire | 1 | |
| 304830 | Graphite liner black (2,0/4,0) 3mtr combiliner- for 1,0/1,2mm wire | 1 | |
| 304831 | Graphite liner black (2,0/4,0) 4mtr combiliner- for 1,0/1,2mm wire | 1 | |
| 304832 | Graphite liner black (2,0/4,0) 5mtr combiliner- for 1,0/1,2mm wire | 1 | |
| 3048351 | Graphite liner black (2,3/4,7) 3mtr combiliner- for 1,6mm wire | 1 | |
| 3048361 | Graphite liner black (2,3/4,7) 4mtr combiliner- for 1,6mm wire | 1 | |
| 3048371 | Graphite liner black (2,3/4,7) 5mtr combiliner- for 1,6mm wire | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 39303045 | Swanneck 45° | 1 |
| 39303030 | Swanneck 30° | 1 | |
| 3950205 | PEEK ring to fix nozzle holder (not shown) | 5 | |
| 2 | 3950200 | Nozzle holder | 1 |
| 3 | 3950245 | Metal neck 45° | 1 |
| 3950246 | Metal neck 30° | 1 | |
| 4 | 391000 | Handle green/black complete with trigger | 1 |
| 5 | 3912009 | Trigger with spring | 1 |
| 391250 | Micro switch complete (not shown) | 1 | |
| 6 | 391810 | Cable support set with ball-and-socket joint | 1 |
| 7 | 306505 | Switch cable 1×0,75mm² per mtr | 100 |
| 8 | 258513X8 | Power/water cable 3mtr | 1 |
| 258514X8 | Power/water cable 4mtr | 1 | |
| 258515X8 | Power/water cable 5mtr | 1 | |
| 9 | 2585313XE | Outer liner 3mtr | 1 |
| 2585314XE | Outer liner 4mtr | 1 | |
| 2585315XE | Outer liner 5mtr | 1 | |
| 10 | 258535 | Water inlet hose 5x8mm blue per mtr | 100 |
| 258566 | Water outlet hose 5x8mm red per mtr | 100 | |
| 11 | 260018 | Leather-sheathing with Velcro 2mtr | 1 |
| 12 | 3402032 | Fume extraction hose 36-44mm 3mtr | 1 |
| 3402042 | Fume extraction hose 36-44mm 4mtr | 1 | |
| 3402052 | Fume extraction hose 36-44mm 5mtr | 1 | |
| 13 | 398030 | Hose connection | 1 |
| 13b | 3665501 | Inside ring Extractor hose | 1 |
| 14 | 398100 | Housing (Y-shape) for fume extraction hose | 1 |
| 15 | 398015 | Connection ring | 1 |
| 16 | 398010 | Housing set for central connector | 1 |
| 17 | 350881 | Water hose guide | 1 |
| 18 | 305304E23 | Central connector Euro | 1 |
| 19 | 8M9420 | Adaptor nut | 2 |
| 20 | 305315 | Liner positioner nut | 10 |
| 21 | 398110 | Hose adapter | 1 |
| 22 | 258701 | Waterstop red | 10 |
| 23 | 258702 | Waterstop bluer | 10 |
| 24 | 406050 | Gasflow meter | 1 |
| 25 | 371208 | Tool set (brush and multitool) | 1 |
| 26 | 371300 | Airflow meter Extractor | 1 |
| 320300 | Ceramic dry film spray 400 ml (not shown) | 12 |
