10XM ACE MIG Torches
10XM MIG TORCH
Specifications

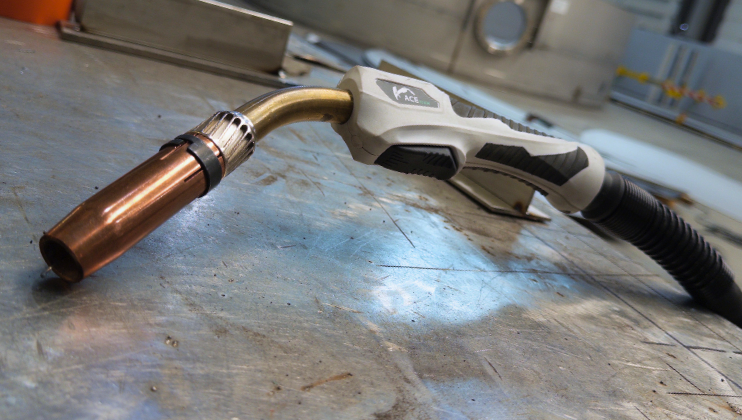

ACE 10XM MIG Torch

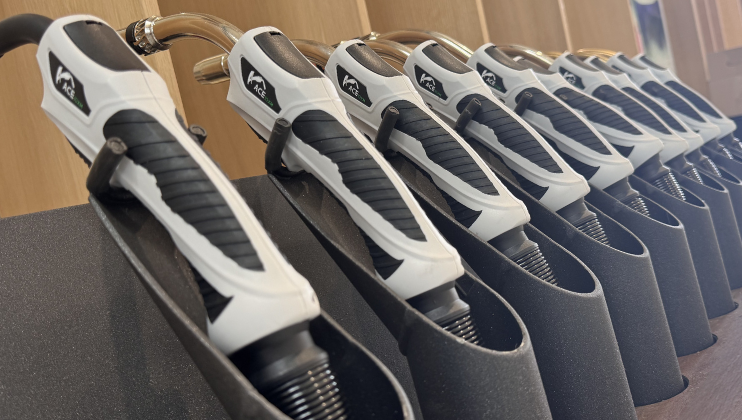

- SMART COMPACT HANDLE
- ERGONOMIC DESIGN
- ANTI-SLIP GRIP
- INTEGRATED LED FUNCTIONALITY (OPTIONAL)
- DURABLE & IMPACT RESISTANT
10XM ACE Series
BUILT FOR EXPERTS: COMPACT DESIGN, LONG TERM DURABILITY, & MAXIMUM CONTROL.
Smaller Handle, Greater Grip
Thanks to Smart Design the handle is compacter than ever, maintaining grip space while enhancing grip performance.
Designed For Comfort
The ergonomic, curved handle comfortably fits any hand, offering a slim, textured grip that stays comfortable, even during long welding sessions.
Engineered for Durability
Built to withstand daily, heavy-duty use, the 10XM Ace is made with tough, impact-resistant materials that ensure lasting durability.
Innovative Features
Optional LED for visibility, compatible with any machine.
Versatile Performance
Available in both air- and water-cooled versions, with a variety of amperage ranges.
10XM MIG TORCH LINE
Europe
North America
Europe
Technical Specification
Replacement Part
TECHNICAL DOCUMENT
10XM 15
CO2: 180 AMP
Mixed Gases: 150 AMP
Duty Cycle: 60%
10XM 24
CO2: 250 AMP
Mixed Gases: 220 AMP
Duty Cycle: 60%
10XM 25
CO2: 230 AMP
Mixed Gases: 200 AMP
Duty Cycle: 60%
10XM 26
CO2: 230 AMP
Mixed Gases: 200 AMP
Duty Cycle: 60%
10XM 36
CO2: 320 AMP
Mixed Gases: 300 AMP
Duty Cycle: 60%
10XM 40
CO2: 400 AMP
Mixed Gases: 380 AMP
Duty Cycle: 60%
10XM 240
CO2: 300 AMP
Mixed Gases: 270 AMP
Duty Cycle: 100%
10XM 410
CO2: 500 AMP
Mixed Gases: 450 AMP
Duty Cycle: 100%
10XM 510
CO2: 550 AMP
Mixed Gases: 500 AMP
Duty Cycle: 100%
×
![Zoomed Image]()

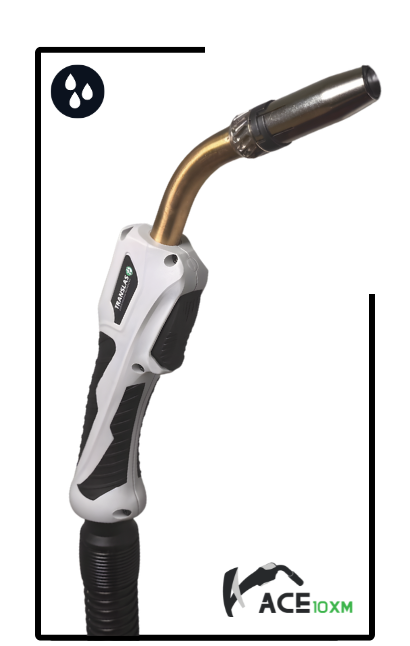

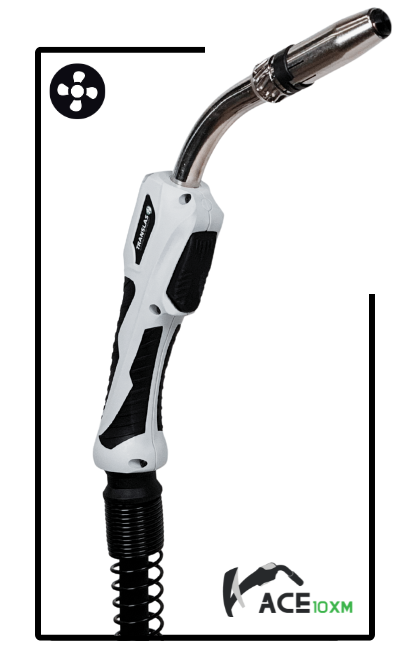

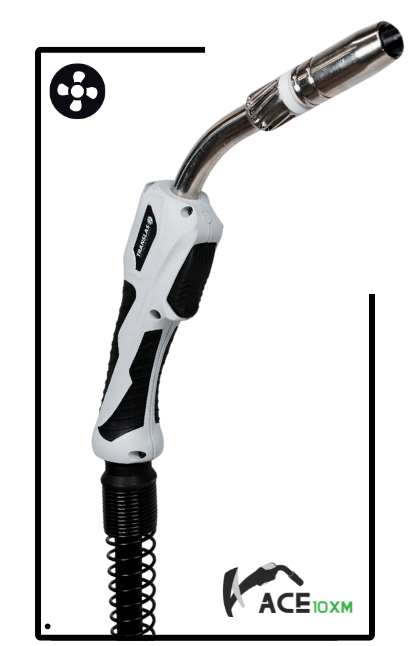

Air Cooled

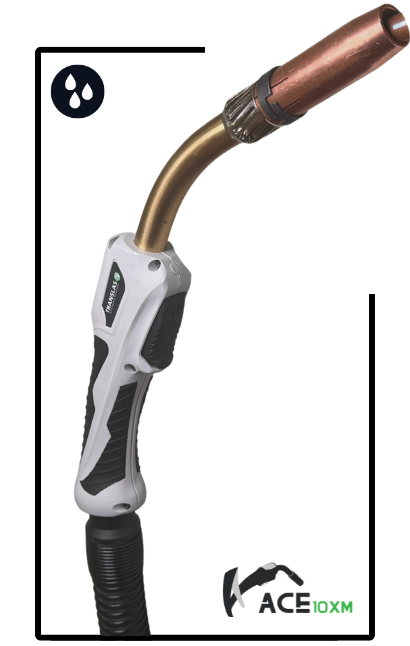

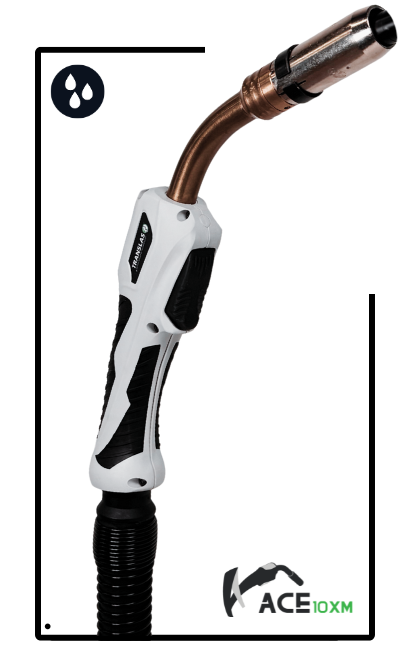

Water Cooled

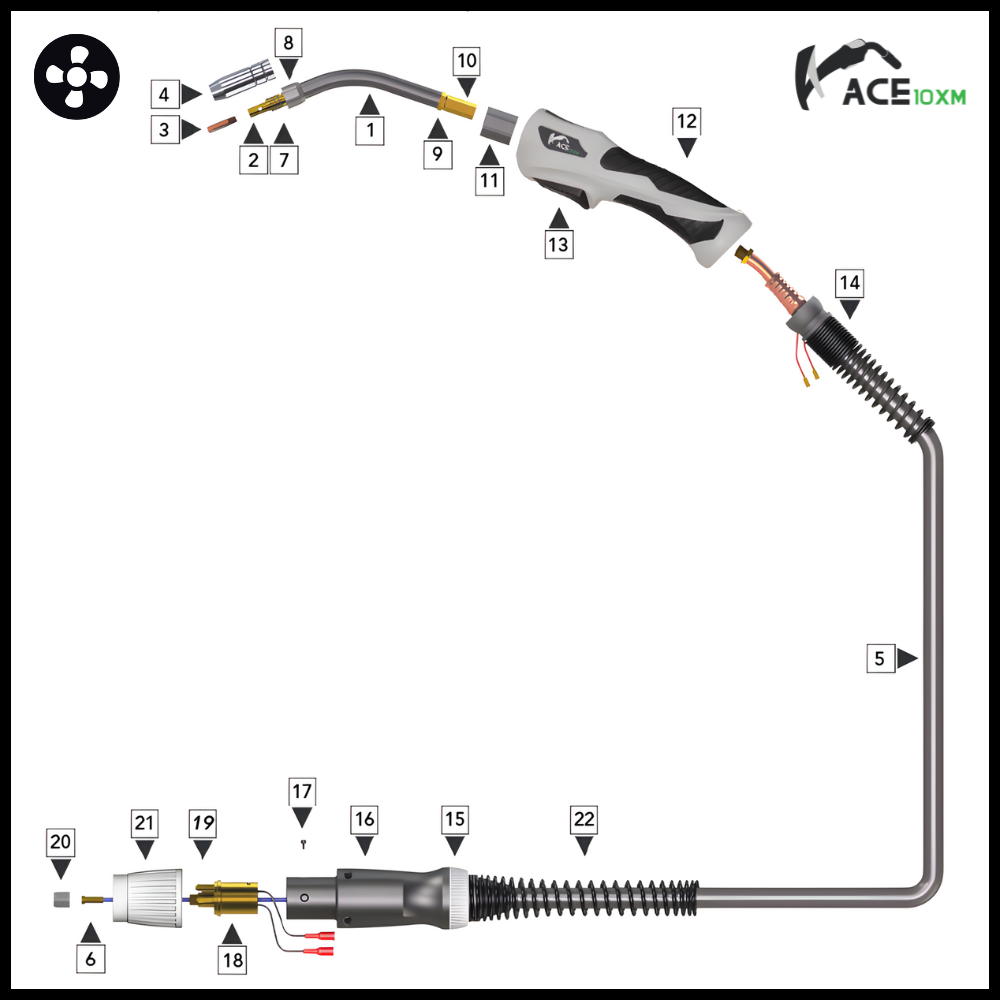

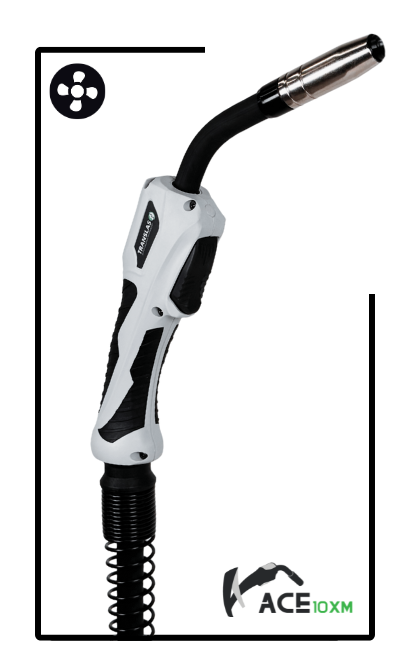

10XM-15 MIG TORCH
10XM – 24 MIG TORCH

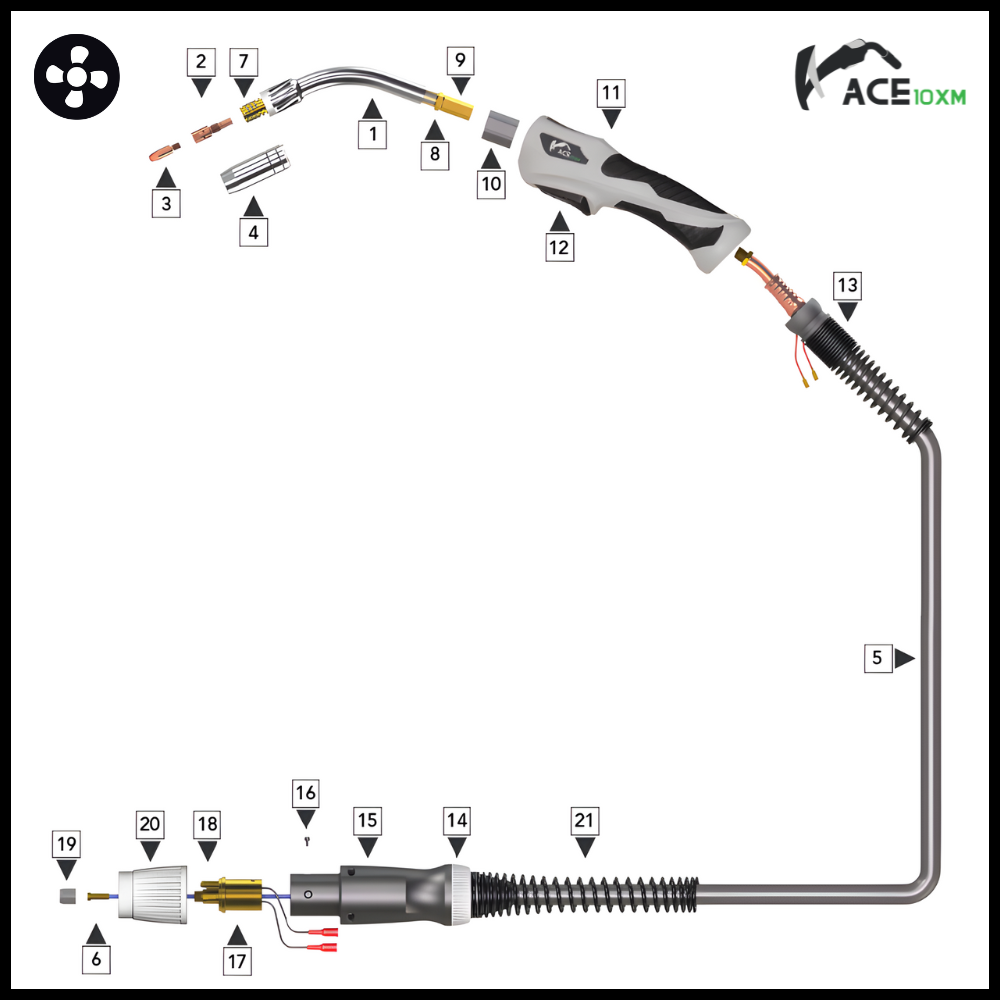

10XM – 25 MIG TORCH

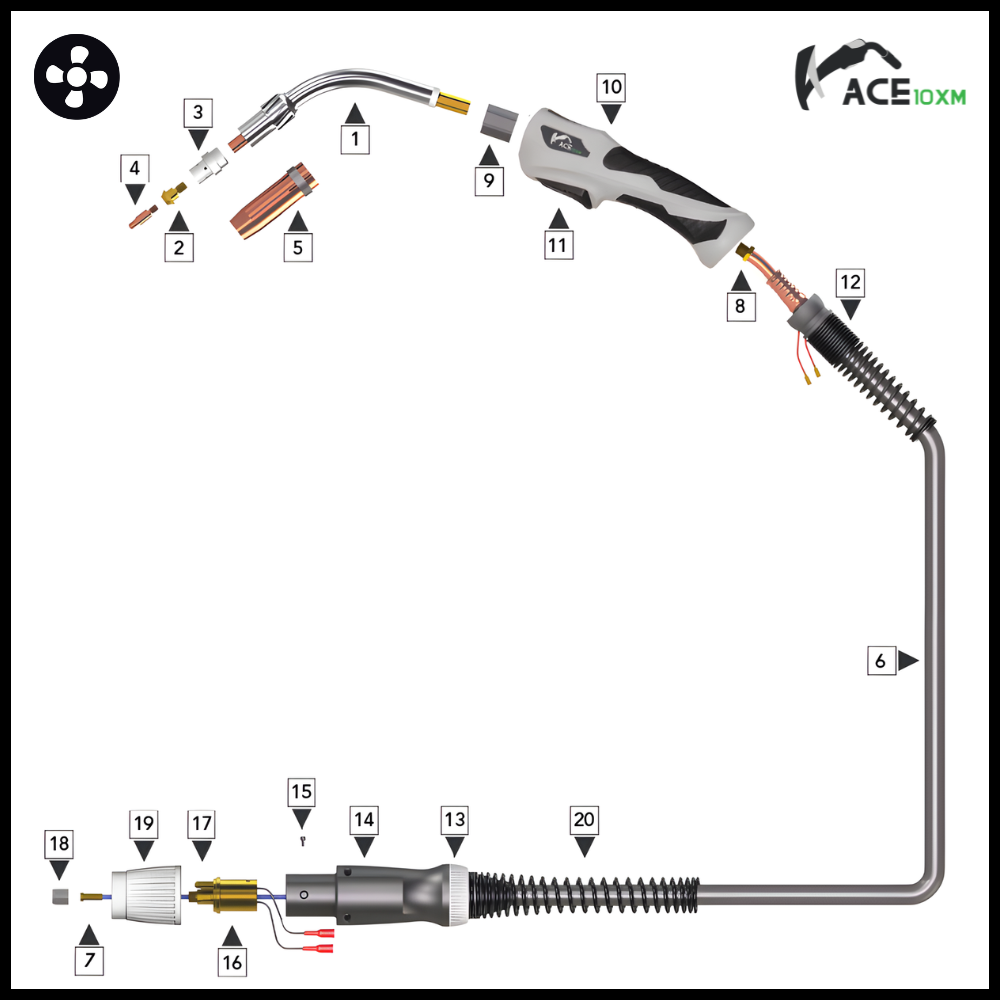

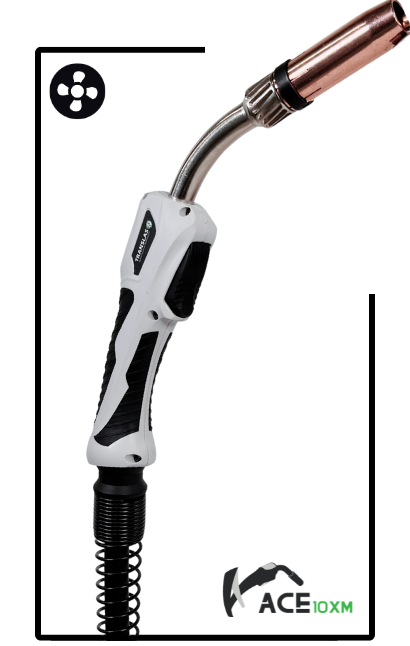

10XM – 26 MIG TORCH

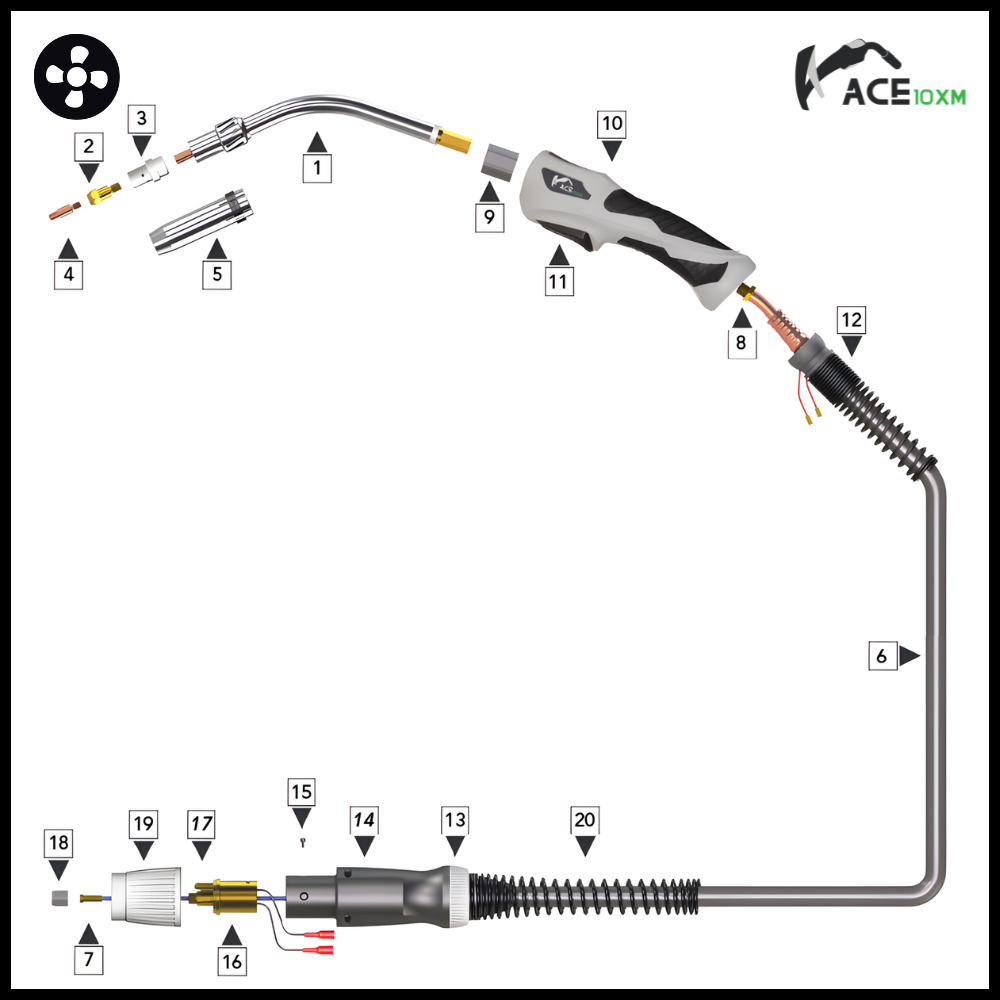

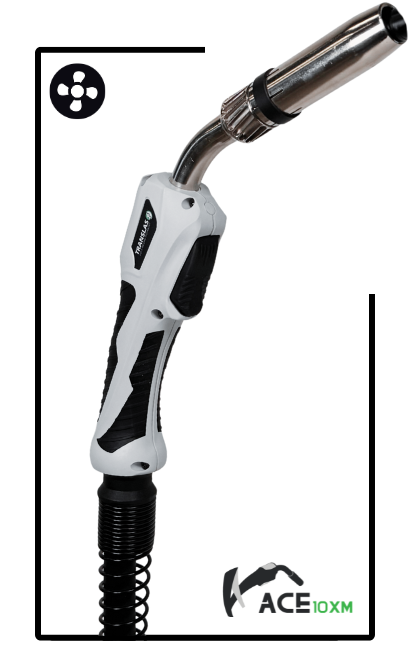

10XM – 36 MIG TORCH

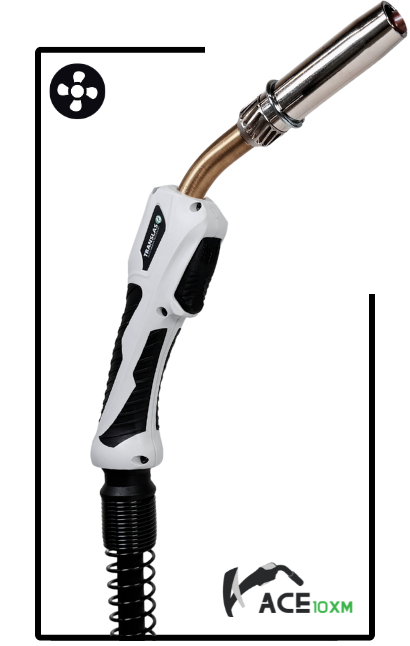

10XM – 40 MIG TORCH
COMPLETE TORCHES

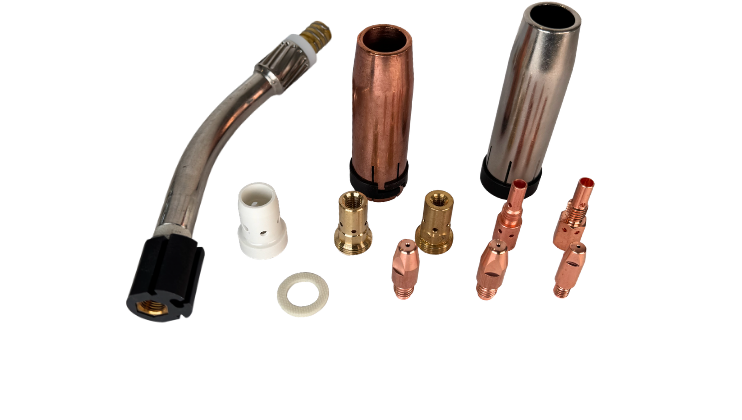

SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 8M01500100300 | 8XM-15 MIG torch 3mtr | 1 |
| – | 8M01500100400 | 8XM-15 MIG torch 4mtr | 1 |
| – | 8M01500100500 | 8XM-15 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300030 | Swanneck | 1 |
| 2 | 150000 | Tipadaptor M6 | 10 |
| 3 | 100102 | Contacttip M6-06-0.8mm | 100 |
| 4 | 200120 | Nozzle conical | 10 |
| 5 | 258153 | Cable assembly 16mm² 3mtr | 1 |
| 6 | 301535 | P.C. liner blue (ø 1,5/4,5mm round) 3mtr | 1 |
| 7 | 305600 | Nozzle spring | 10 |
| 8 | 305241 | Insulator | 5 |
| 9 | 305401 | Lock nut M10x1x5mm | 10 |
| 10 | 10M9900 | 10XM Handle complete 16mm | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M02400100300 | 10XM-24 MIG torch 3mtr | 1 |
| – | 10M02400100400 | 10XM-24 MIG torch 4mtr | 1 |
| – | 10M02400100500 | 10 XM-24 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300624 | Swanneck | 1 |
| 2 | 150002 | Tipadaptor M6 | 10 |
| 3 | 300510 | Diffuser white | 25 |
| 4 | 100206 | Contacttip M6-08-1,0mm | 100 |
| 5 | 200300 | Nozzle conical | 10 |
| 6 | 258253 | Cable assembly 25mm² 3mtr | 1 |
| 7 | 302535 | P.C. liner red (ø 2,0/4,5mm round) 3mtr | 1 |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Part No. | Description | Pack Qty |
|---|---|---|
| 10M02500100300 | 10XM-25 MIG torch 3mtr | 1 |
| 10M02500100400 | 10XM-25 MIG torch 4mtr | 1 |
| 10M02500100500 | 10XM-25 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300625 | Swaneck | 1 |
| 2 | 150102 | Tipadapter M6 | 10 |
| 3 | 100206 | Contacttip Mo-06;1.0mm | 10 |
| 4 | 258253 | Cable assembly 25mm² 3mtr | 1 |
| 5 | 302345 | P.C. liner red (Ø 2.0/4.5mm round) 3mtr | 1 |
| 6 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 7 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M02600100300 | 10XM-26 MIG torch 3mtr | 1 |
| – | 10M02600100400 | 10XM-26 MIG torch 4mtr | 1 |
| – | 10M02600100500 | 10XM-26 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300626 | Swaneck | 1 |
| 2 | 150202 | Tipadapter M6 | 10 |
| 3 | 150203 | Tipadapter M8 | 10 |
| 4 | 100206 | Contacttip M6-08;1.0mm | 100 |
| 5 | 258253 | Cable assembly 25mm² 3mtr | 1 |
| 6 | 302535 | P.C. liner red (Ø 2.0/4.5mm round) 3mtr | 1 |
| 7 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 8 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M03600100300 | 10XM-36 MIG torch 3mtr | 1 |
| – | 10M03600100400 | 10XM-36 MIG torch 4mtr | 1 |
| – | 10M03600100500 | 10XM-36 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300636 | Swaneck | 1 |
| 2 | 150302 | Tipadaptor M6 | 10 |
| 3 | 100208 | Contacttip M6-08;1,2mm | 100 |
| 4 | 258363 | Cable assembly 50mm² 3mtr | 1 |
| 5 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 6 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M04000100300 | 10XM-40 MIG torch 3mtr | 1 |
| – | 10M04000100400 | 10XM-40 MIG torch 4mtr | 1 |
| – | 10M04000100500 | 10XM-40 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300640 | Swanneck | 1 |
| 2 | 150325 | Tipadaptor M8 | 1 |
| 3 | 100304 | Contacttip MB-10-1,2mm | 50 |
| 4 | 258403 | Cable assembly 70mm² 3mtr | 1 |
| 5 | 10M9900 | 10XM Handle complete 16mm | 1 |

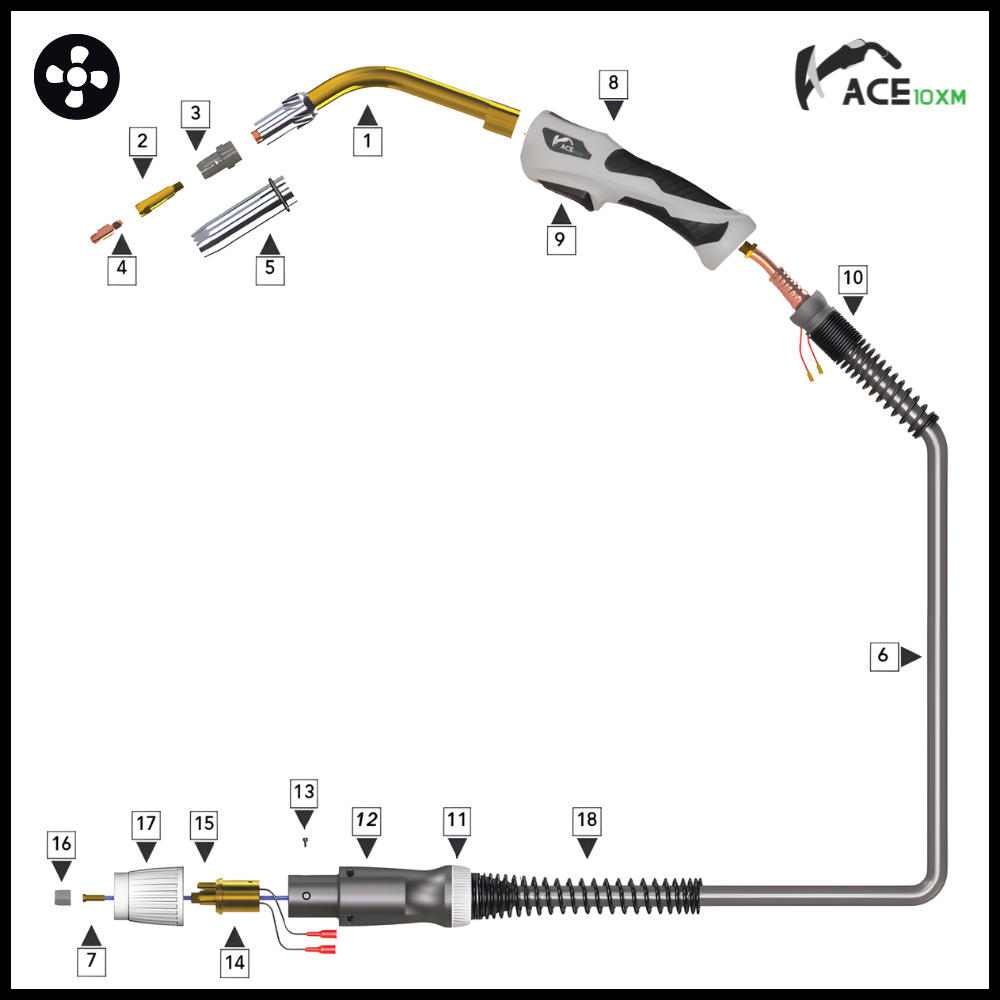

| 6 | 385402 | 10XM Trigger | 1 |

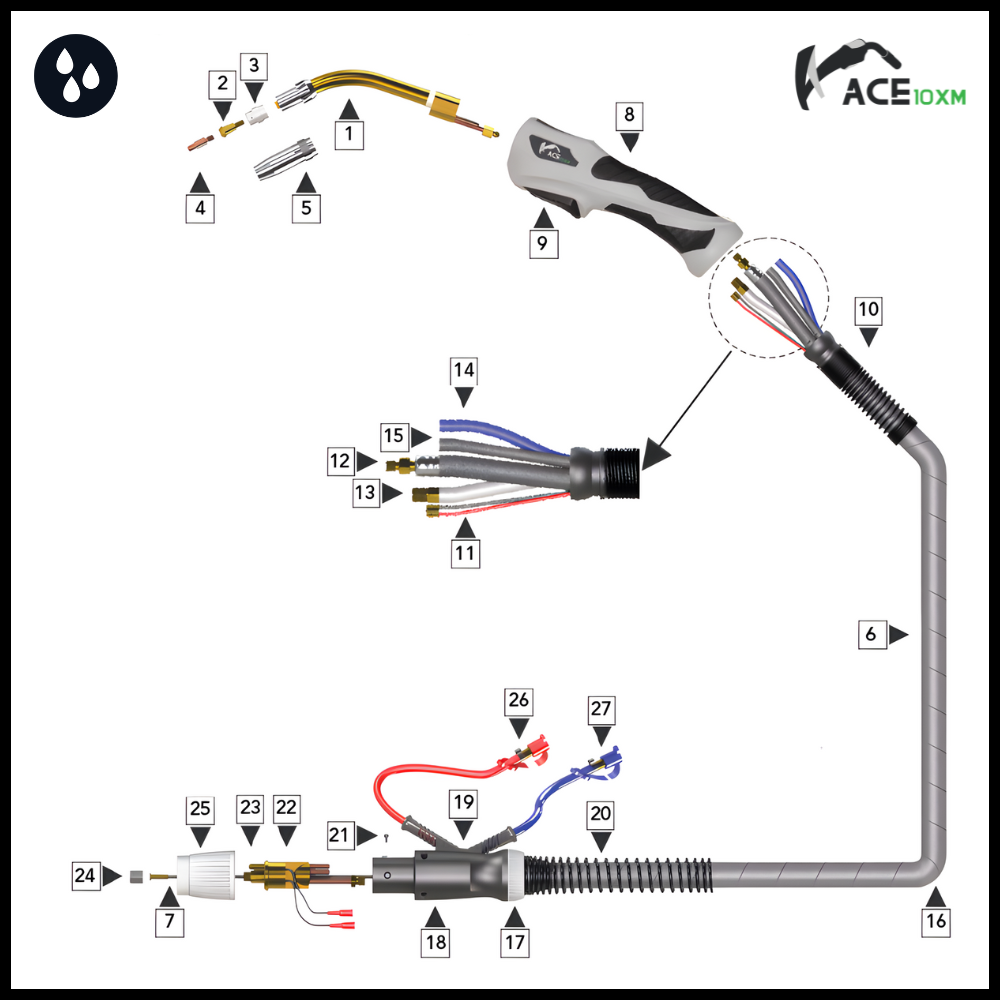

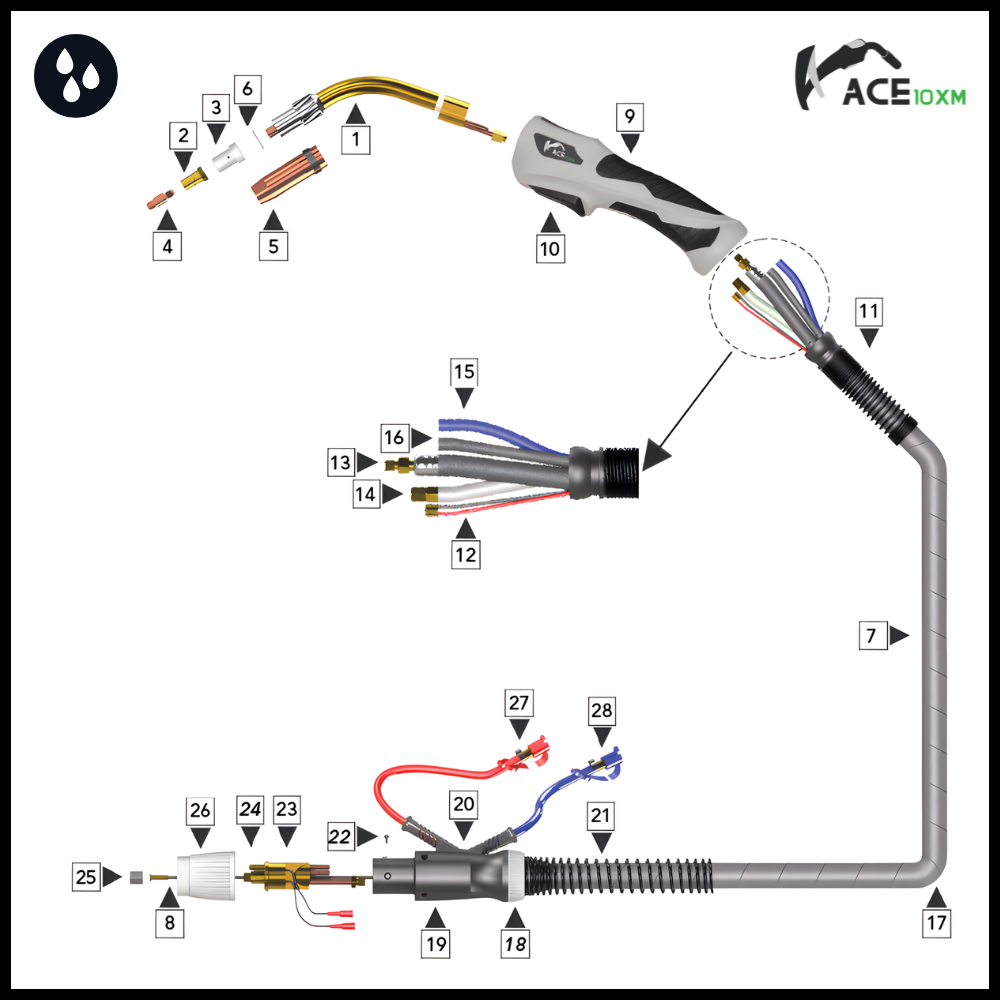

10XM – 240 MIG TORCH
10XM – 410 MIG TORCH

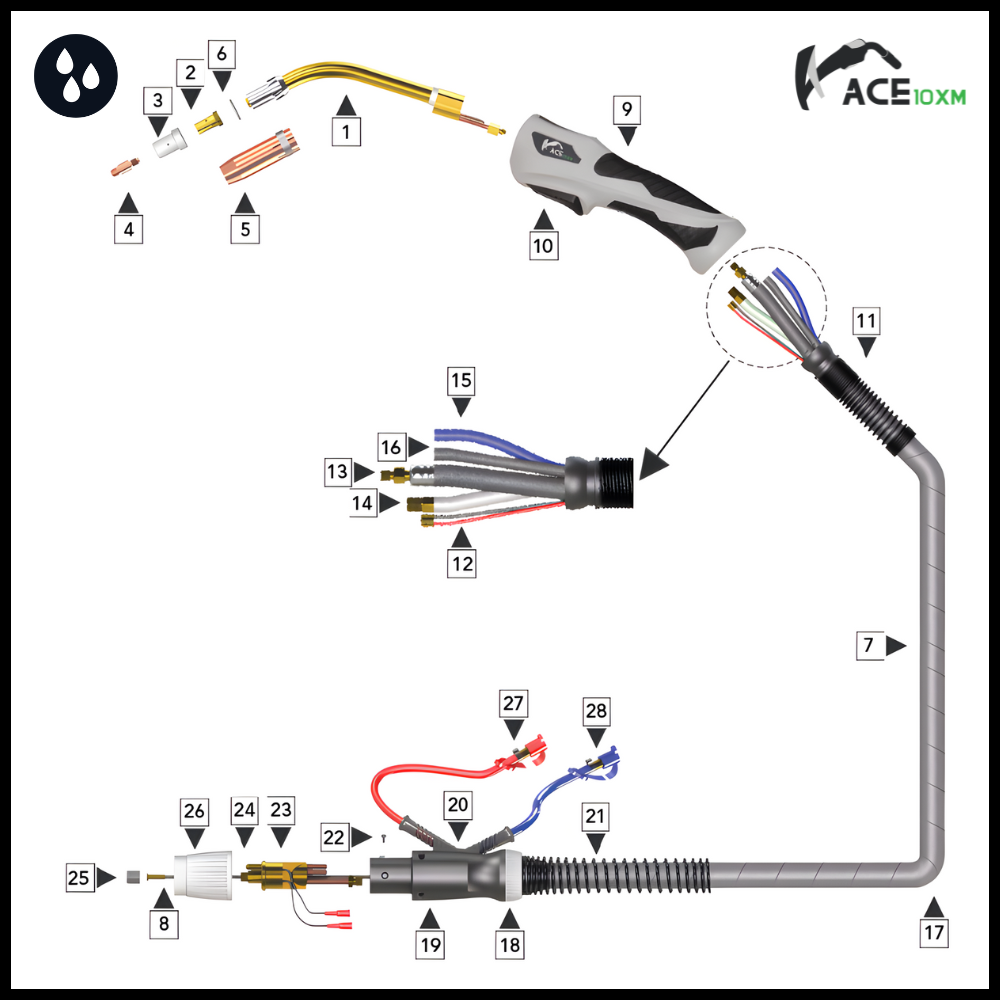

10XM – 510 MIG TORCH
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M24000300030 | 10XM-240 MIG torch 3mtr | 1 |
| – | 10M24000300040 | 10XM-240 MIG torch 4mtr | 1 |
| – | 10M24000300050 | 10XM-240 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300623 | Swanneck | 1 |
| 2 | 150002 | Tipadaptor M6 | 10 |
| 3 | 300510 | Diffuser white | 25 |
| 4 | 100208 | Contacttip M6-08 1.2mm | 100 |
| 5 | 200300 | Nozzle conical | 10 |
| 6 | 258413 | Cable assembly complete 3mtr | 1 |
| 7 | 304635 | Plain liner (ø 2.0/4.5mm round) 3mtr | 1 |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 5 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M41000300300 | 10XM-410 MIG torch 3mtr | 1 |
| – | 10M41000300400 | 10XM-410 MIG torch 4mtr | 1 |
| – | 8M41000300500 | 10M-410 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300641 | Swanneck (18mm Swanneck) | 1 |
| 2 | 150404 | Tipadapter M8 | 10 |
| 3 | 300560 | Diffuser white | 25 |
| 4 | 100304 | Contacttip M8-10-12mm | 50 |
| 5 | 200820 | Nozzle conical (Heavy Duty) | 10 |
| 6 | 308414 | Cable assembly complete 3mtr | 1 |
| 7 | 304455 | Plain liner (ø 2,0/4,5mm round) 3mtr | 1 |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 8M51000300300 | 8XM-510 MIG torch 3mtr | 1 |
| – | 8M51000300400 | 8XM-510 MIG torch 4mtr | 1 |
| – | 8M51000300500 | 8XM-510 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300651 | Swanneck (18mm Swanneck) | 1 |
| 2 | 150404 | Tipsdaptor M8 | 10 |
| 3 | 300560 | Diffuser white | 25 |
| 4 | 103304 | Contacttip M8-10-12mm | 50 |
| 5 | 200820 | Nozzle conical (Heavy Duty) | 10 |
| 6 | 258413 | Cable assembly complete 3mtr | 1 |
| 7 | 304635 | Plain liner (ø 2,0/4,5mm round) 3mtr | 1 |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 1 |
