SAFETY

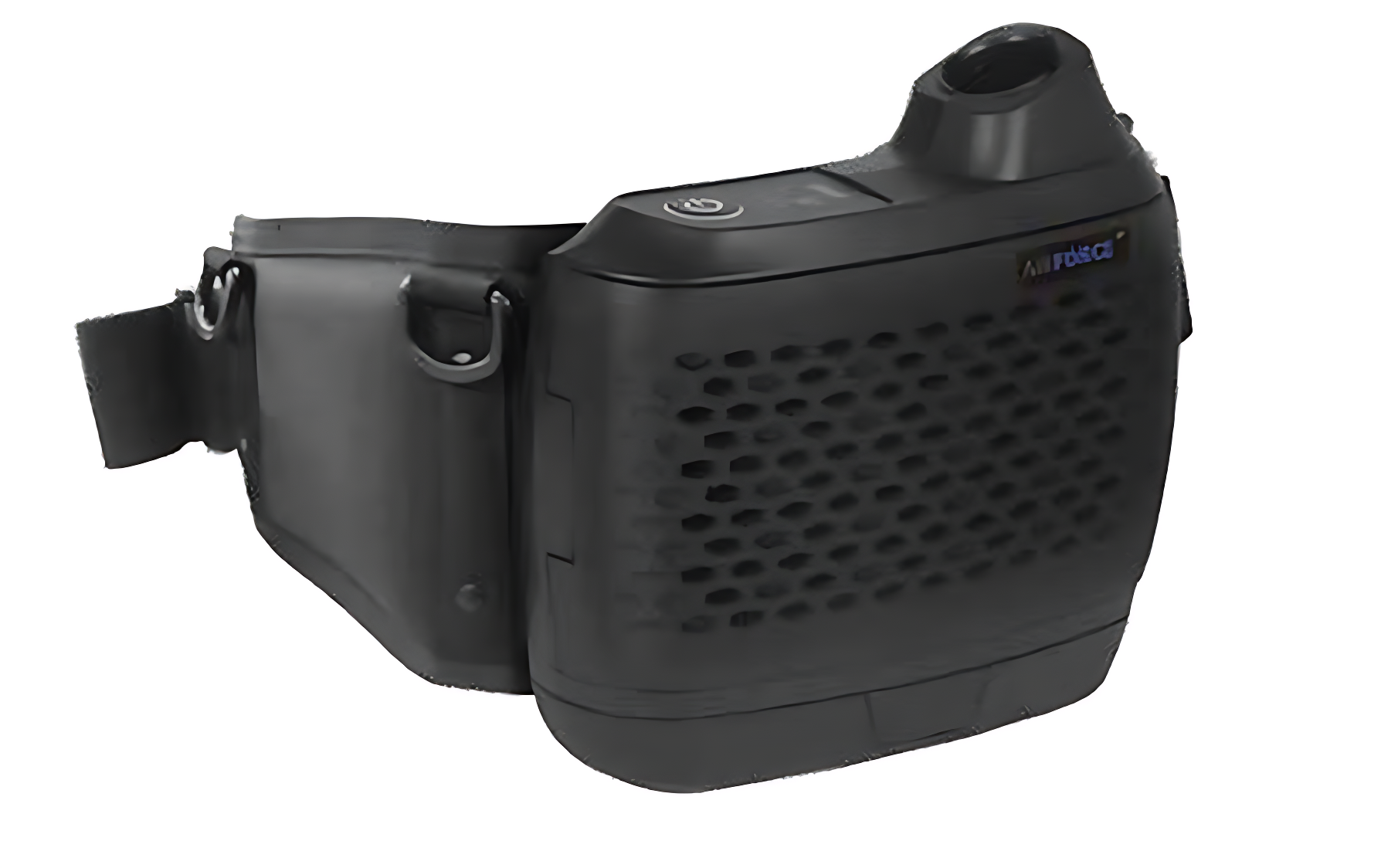

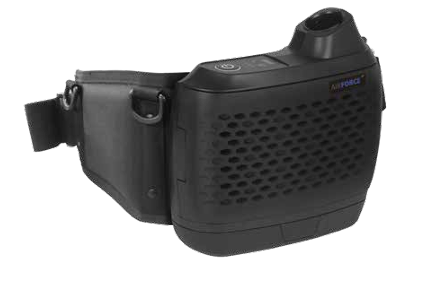

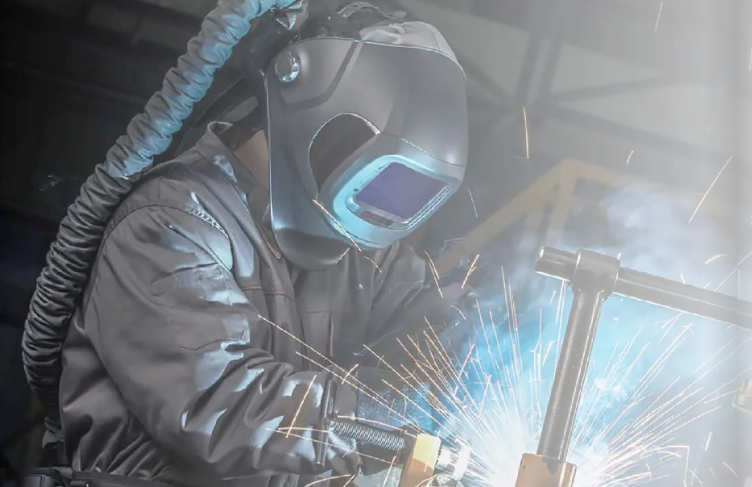

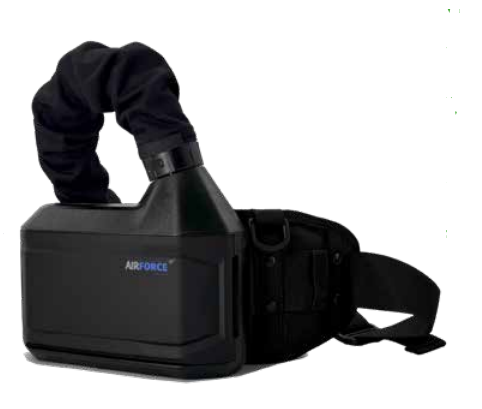

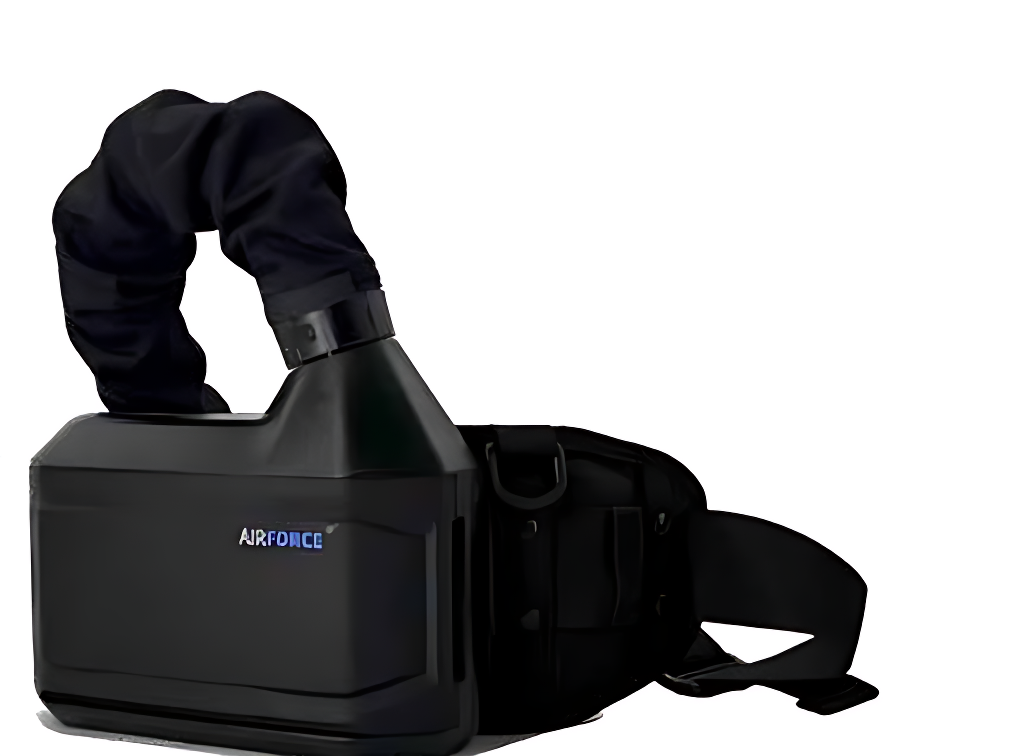

PAPR AIR FORCE R1 FRESH AIR SET
ALL DAY COMFORT

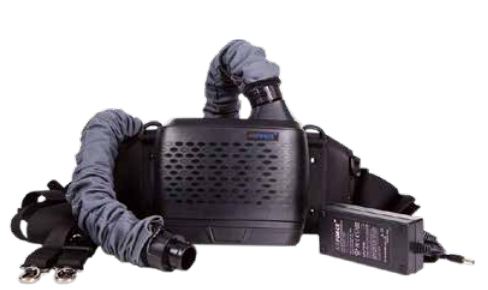

The lightweight Air Force Fresh Air System is worn with a belt around the waist. The weight is distributed by a wide belt, lined with a shock absorbing material for comfort.

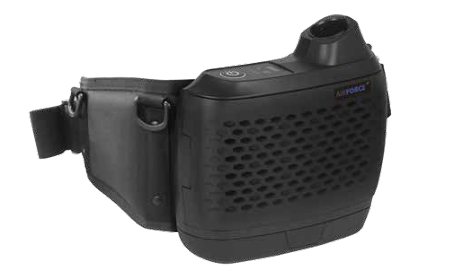

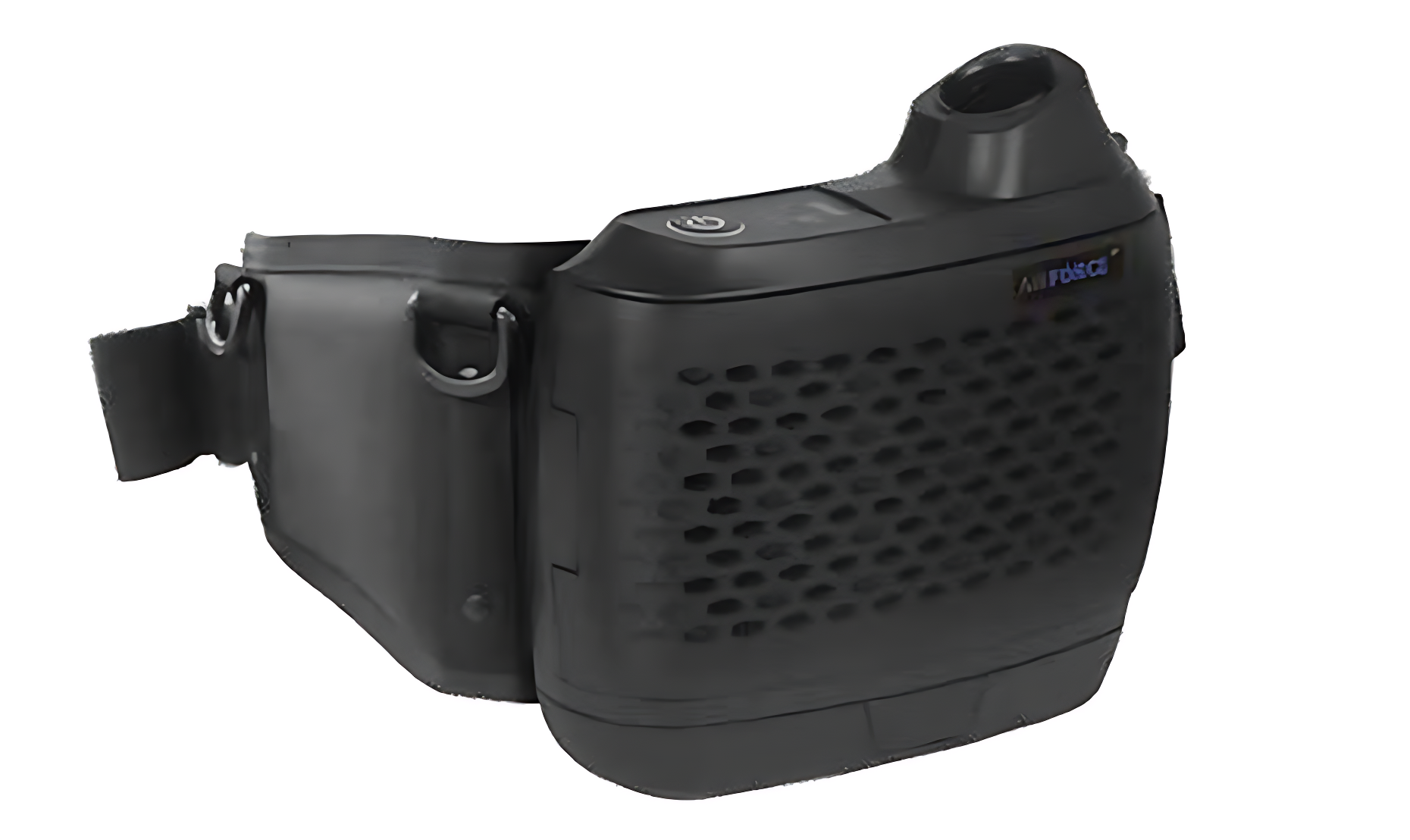

COMPACT, LIGHT AND EFFICIENT
Equip yourself with a portable lightweight blower. Tackle welding in narrow spaces confidently, free from concerns of bumping into equipment. The R1 blower ensures clean air, meeting TH3 certification with unrestricted movement and lasting comfort.
EASY FLIP-UP SENSITIVITY LENS
4 SENSITIVITY SENSORS
UNIQUE DESIGN
WELDING, GRINDING & CUTTING
MATTE FINISH FOR UNIQUE LOOK
HIGH-PERFORMANCE, EASY ADJUSTMENT
Can be mated with 600S-N auto darking filter, where shade number, delay and sensitivity are all infinitely adjstable. Inxudes flip-up grinding visoro.
BREATHE
FILTER EFFICIENCY < 99.991%
THE MAIN FILTER
The main filter can be compared to an air filter in a car, when polluted it has to be replaced. The unit gives an alarm through vibration, a beeping sound, and a flashing warning light. The degree of saturation of the main filter will not affect the airflow. The main filter is protected on the outside by a spark trap and a pre-filter.
USER-FRIENDLY INTERFACE
Easily view airflow, battery status, and filter loading. Audio visual alarms, and vibration alerts will be avtivated when necessary
AIRFLOW ADJUSTABLE
2 selectable airflow levels: 170L/min and 210L/min
STREAMLINE SHELL
Meets ergonomics well, providing a snug fit to the users back, allowing for free movement on-the-jop.
QUIET MOTOR
Motor equipped with FOC technology reduces noise by minimizing fluctuations and vibration, all while maintaining top-notch filtration efficiency.
SIMPLIFIED MAINTENANCE
User-friendly battery and filter replacement. The sleek outer shell ensures easy cleaning.

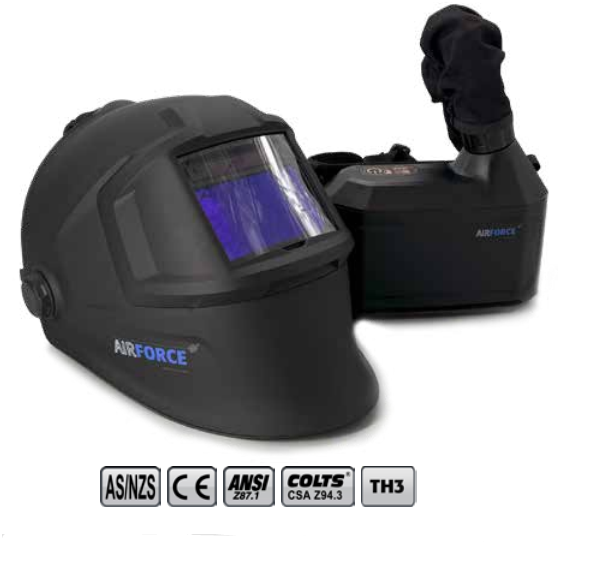

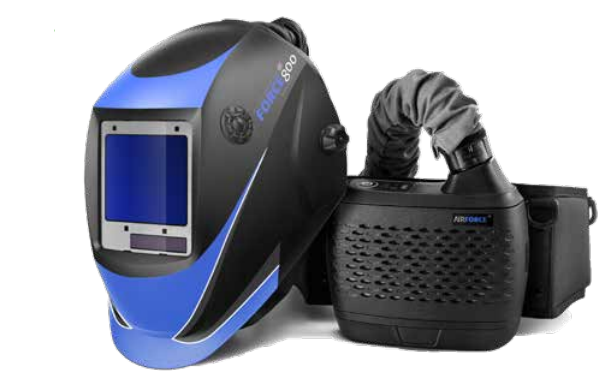

PAPR AIR FORCE V1 FRESH AIR SET
The AirFORCE V1 Fresh Air Set consists of a welding helmet and a fresh air system. The set protects the welder from harmful welding rays and fumes, making the inhaled air 50 times cleaner than the air in the immediate area.
CSA APPROVED
COMFORTABLE TO WEAR
UNIQUE DESIGN
SUITABLE FOR GRINDING & CUTTING
EASY TO CLEAN HEAD CUP
PAPR AIR FORCE V1 FRESH AIR SET
The lightweight AirForce Fresh Air System is worn with a belt around the waist.
The weight is distributed by a wide belt, lined with a shock absorbing material for
comfort.
BREATHE
50X CLEANER AIR
LASTING BATTERY
A rechargeable battery provides the power to the fan motor.
Depending on the contamination of the filter, the battery lasts 9 hours. An acoustic sound provides a warning signal when the voltage of the battery is too low. A separate charging station is supplied with the AirForce V3 Fresh Air System. the unit can be supplied with a Li-ion battery for long-lasting protection up to 15 hours and 550 charges battery life.
OPTIMAL PROTECTION
The Force 800 welding helmets give your eyes optimal protection against harmful UV radiation. The 820SG filter has 4 sensors and equipped with an extra large viewing window, for the ultimate working comfort. The lens with the highest optical glass provides clear view of the work area.
FILTER REPLACEMENT
The main filter can be compared to an air filter in a car, when polluted it has to be replaced. The unit gives an alarm through vibration, a beeping sound, and a flashing warning light. The degree of saturation of the main filter will not affect the airflow. The main filter is protected on the outside by a spark trap and a pre-filter.
INTELLIGENT ENGINEERING
The intelligent air supply self-adjusts the flow rate according to the blockage of the filter automatically. TH3 approved.

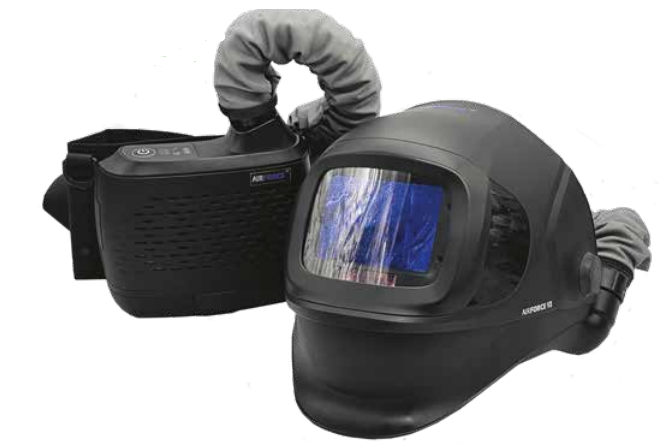

PAPR AIR FORCE V3 FRESH AIR SET
The AirFORCE V3 Fresh Air Set, provides air 50 x cleaner than the air in the immediate area.
EASY FLIP-UP SENSITIVITY LENS
4 SENSITIVITY SENSORS
UNIQUE DESIGN
WELDING, GRINDING & CUTTING
MATTE FINISH FOR UNIQUE LOOK
MULTI-FUNCTIONAL FLIP-UP DESIGN
The AirForce V3 system has a flip-up helmet with easy lift suiting welding/cutting/grinding mode.
The transparent grinding lens is curved with a large view area (20 x 12 cm)
BREATHE
50X CLEANER AIR
LASTING BATTERY
A rechargeable battery provides the power to the fan motor. Depending on the contamination of the filter, the battery lasts 9 hours. An acoustic sound provides a warning signal when the voltage of the battery is too low. A separate charging station is supplied with the AirForce V3 Fresh Air System. the unit can be supplied with a Li-ion battery for long-lasting protection up to 15 hours and 550 charges battery life.
LARGE VIEW AREA
The transparent grinding lens is cutrved with a large view area. (20x12cm)
EASY-LIFT FUNCTION
The AirForce V3 system helmet is equippedwith easy-lift function, therefore it is sutable for welding, cutting or grinding
FILTER REPLACEMENT
The main filter can be compared to an air filter in a car, when polluted it has to be replaced. The unit gives an alarm through vibration, a beeping sound, and a flashing warning light. The degree of saturation of the main filter will not affect the airflow. The main filter is protected on the outside by a spark trap and a pre-filter.
INTELLIGENT ENGINEERING
The intelligent air supply self-adjusts the flow rate according to the blockage of the filter automatically. TH3 approved.

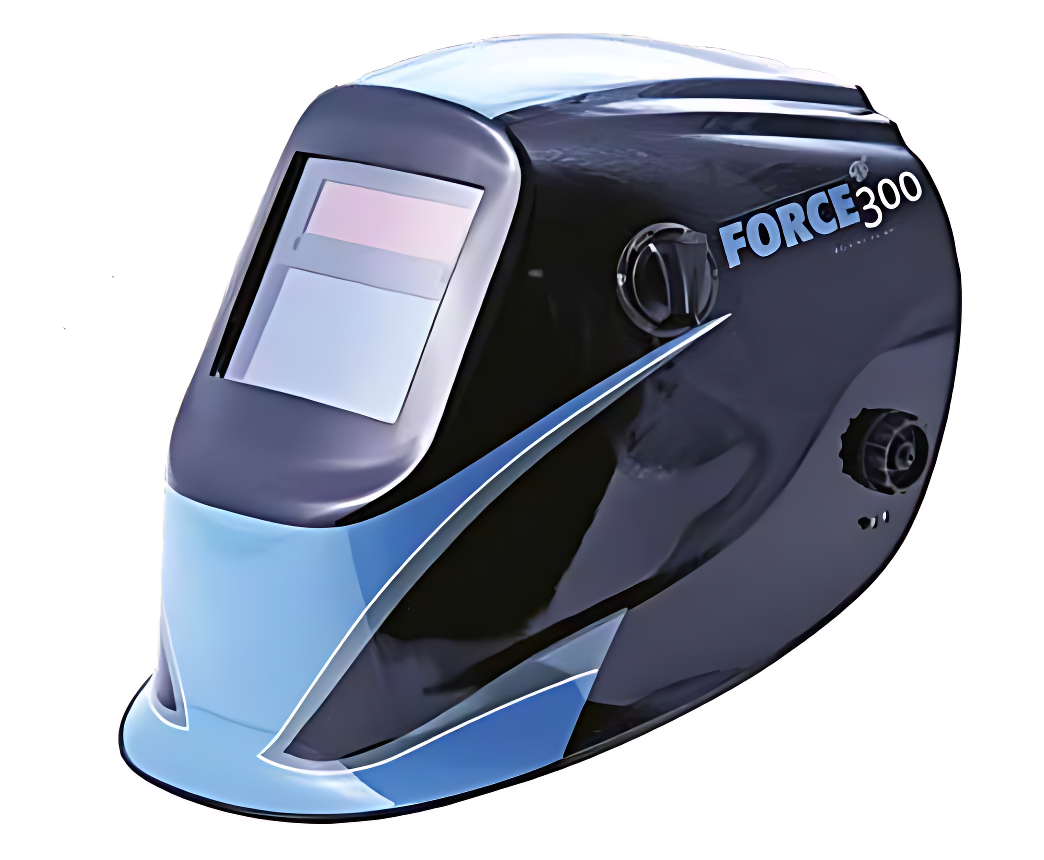

FORCE 300 AUTO-DARKENING
EXTERNAL SHADE CONTROL
AUTO-DARKENING
LOW AMP TIG WELDING
GRINDING
LIGHT WITH MODERN DESIGN
INTELLIGENT ENGINEERING
The Force 300 welding helmet is a great-quality helmet with a unique design. It covers a wide range of applications, including grinding and low amperage TIG welding. This makes the helmet suitable for almost any welding job further convenience of the welder.
CUSTOM DESIGN
As a standard this helmet is supplied in our own FORCE design. It is also possible, for orders of 300 units or more, to supply this helmet with your own label or brand. For larger quantities, other helmet shells and/or cassettes are also available on request. further convenience of the welder.
EASY EXTERNAL CONTROL
The colour shade and welding/grinding mode are controlled by an external dial knob. The welder can make adjustments on-the-fly and look at the weld without removing the helmet. The tension in the neck from the constant nodding is removed and welding at tight spots is easier. The dial knob is located on the left side of the helmet for further convenience of the welder.

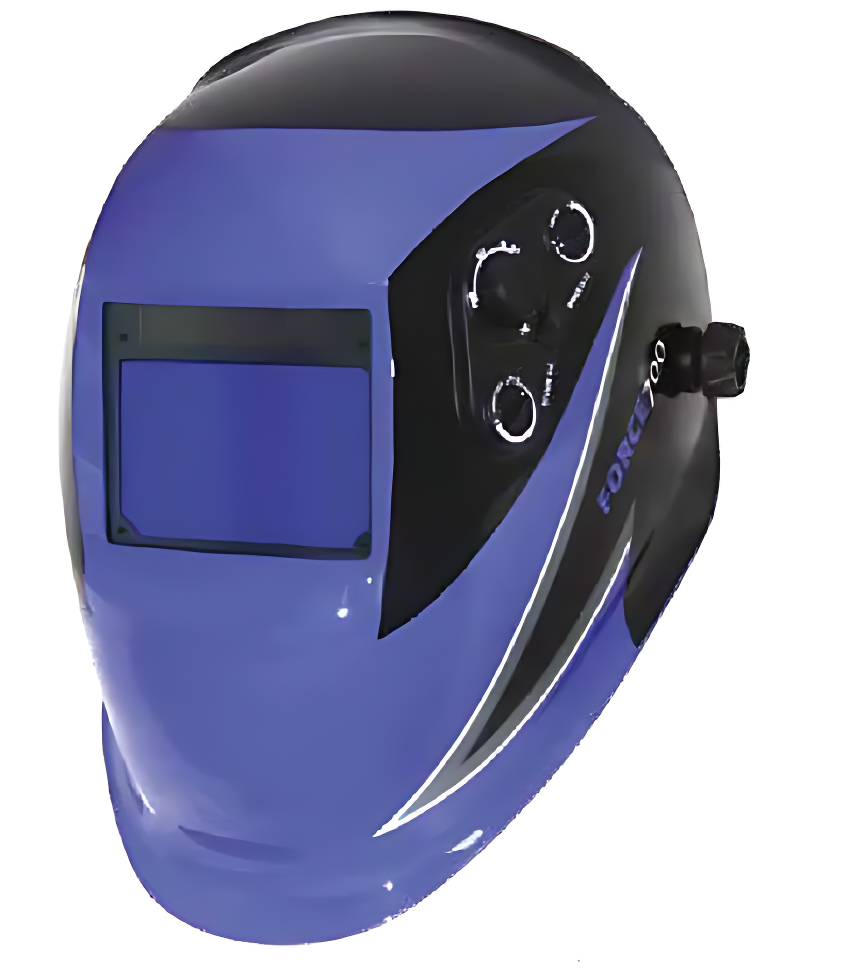

FORCE 700 VERY LIGHT
VERY LIGHT WITH EXCELLENT PROTECTION
The Force 700 is a light, top range, high quality welding helmet belonging to the top segment of the market. The helmet provides excellent protection against harmful UV rays and is easy to use and comfortable to wear.
HIGH COMFORT
AUTO-DARKENING FILTERS
EXTERNAL SETTINGS CONTROL
GRINDING MODE
LIGHT WITH MODERN DESIGN
CUSTOM DESIGN
As a standard this helmet is supplied in our own FORCE design. It is also possible, for orders of 300 units or more, to supply this helmet with your own label or brand. For larger quantities, other helmet shells and/or cassettes are also available on request.
EASY EXTERNAL CONTROL
The colour shade and welding/grinding mode are controlled by an external dial knob. The welder can make adjustments on-the-fly and look at the weld without removing the helmet. The tension in the neck from the constant nodding is removed and welding at tight spots is easier. The dial knob is located on the left side of the helmet for further convenience of the welder.

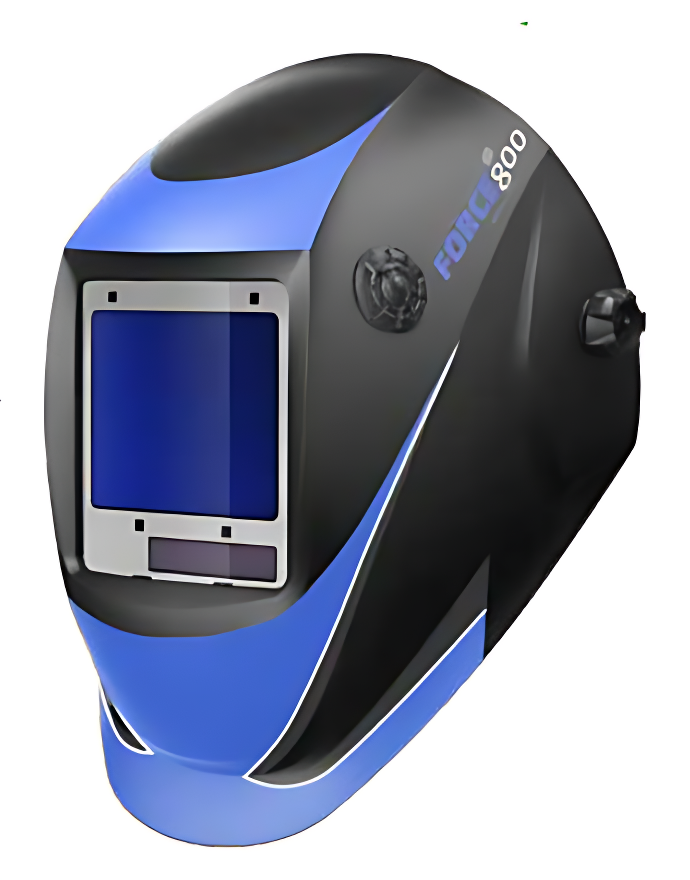

FORCE 800 EXTRA LARGE FILTER
VERY LARGE VIEWING AREA
4 ARC DETECTING SENSORS
AUTO-DARKENING
GRINDING MODE
LIGHT WITH MODERN DESIGN
EXTRA-LARGE FILTER FOR BETTER VIEW
The Force 800 is a top range, high quality welding helmet belonging to the top segment of the market. The helmet provides extreme comfort during welding and clear view of the weld in every position.
CUSTOM DESIGN
As a standard this helmet is supplied in our own FORCE design. It is also possible, for orders of 300 units or more, to supply this helmet with your own label or brand. For larger quantities, other helmet shells and/or cassettes are also available on request. further convenience of the welder.
EASY EXTERNAL CONTROL
The colour shade and welding/grinding mode are controlled by an external dial knob. The welder can make adjustments on-the-fly and look at the weld without removing the helmet. The tension in the neck from the constant nodding is removed and welding at tight spots is easier. The dial knob is located on the left side of the helmet for further convenience of the welder.

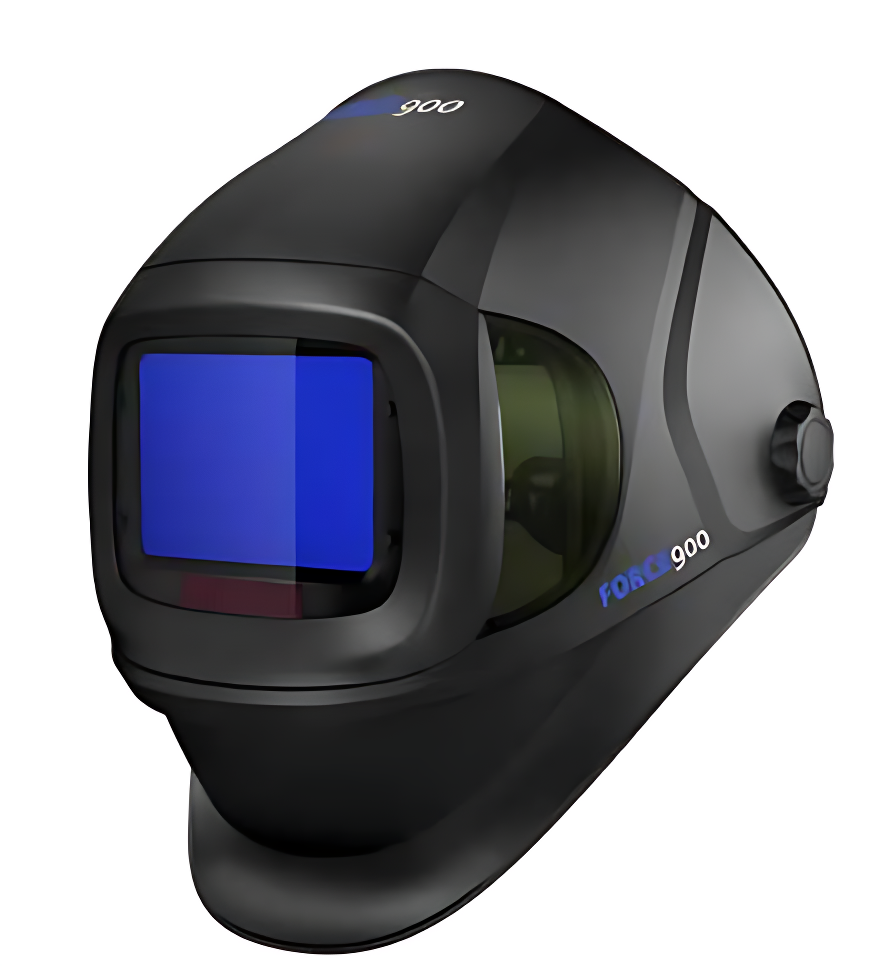

FORCE 900 FLIP UP DESIGN

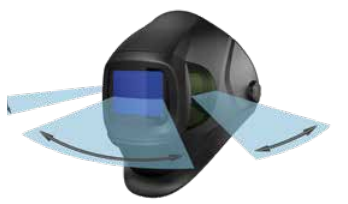

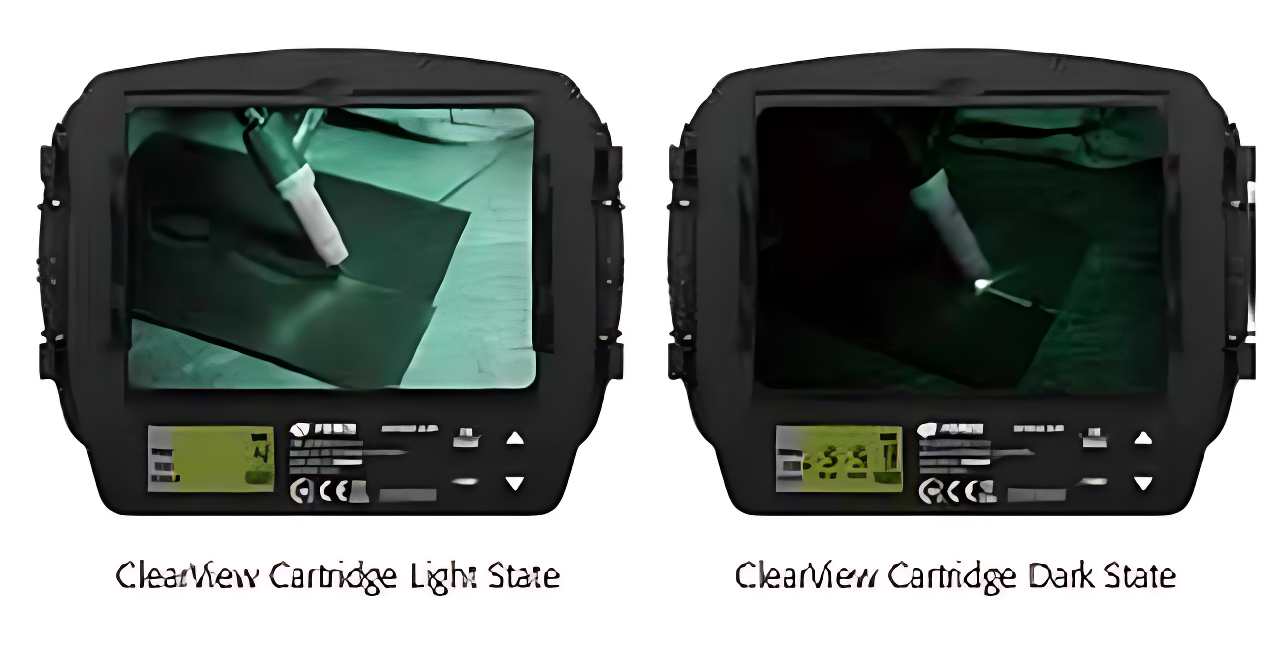

CLEAR VIEW TECHNOLOGY
The automatic Force 900 welding helmet has the welder covered in every situation welding, grinding and cutting. The ClearView technology of the cartridge provides one of the most clear views of the weld you can possibly get.
EASY FLIP-UP SENSITIVITY LENS
4 SENSITIVITY SENSORS
UNIQUE DESIGN
WELDING, GRINDING & CUTTING
MATTE FINISH FOR UNIQUE LOOK

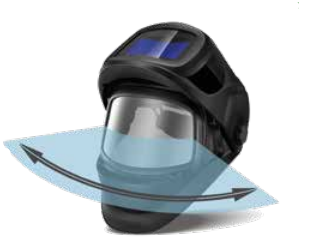

MULTIFUNCTIONAL FLIP-UP
The Force 900 is a flip-up helmet with easy lift for grinding function, suiting welding/cutting /grinding mode. The transparent grinding lens is curved with a large view area (20cm/7,87” x 12cm/ 4,72”). Welding lens with the highest optical glass -1/1/1/1- provides an exceptionally clear view of the
arc during welding.
DIGITAL DISPLAY CONTROL
The colour shade and welding/grinding mode are controlled by an external dial knob. The welder can make adjustments on-the-fly and look at the weld without removing the helmet. The tension in the neck from the constant nodding is removed and welding at tight spots is easier. The dial knob is located on the left side of the helmet for further convenience of the welder.

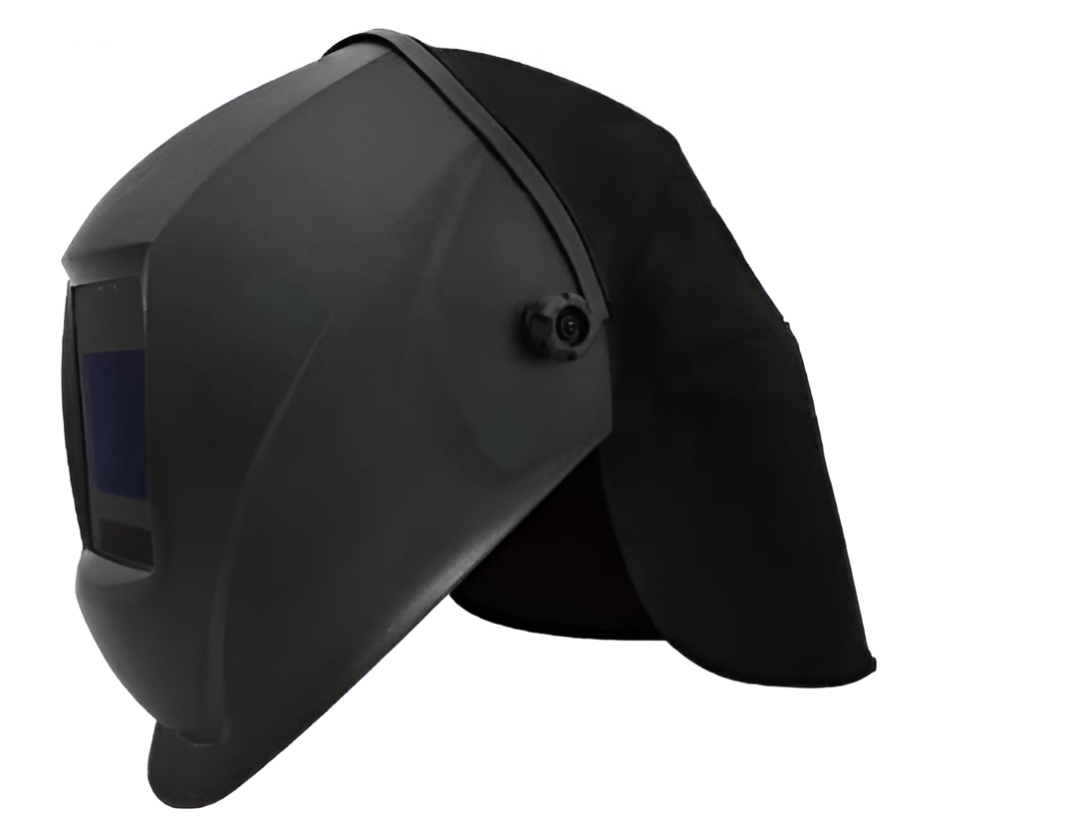

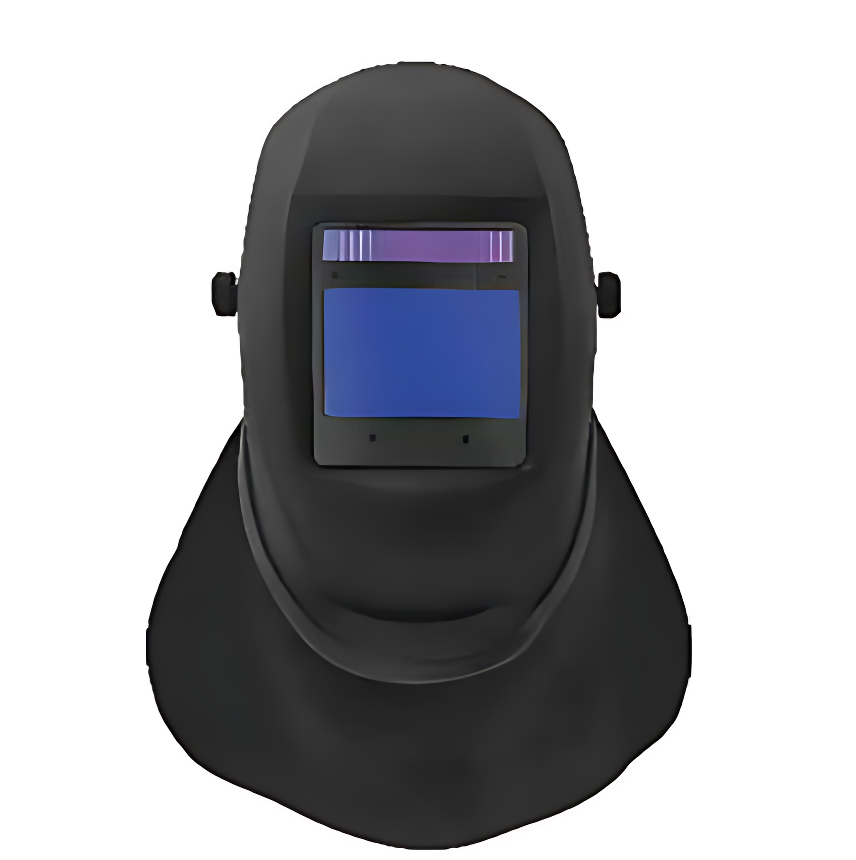

NECK PROTECTION
NECK PROTECTION
LEATHER METERIAL
DURABLE & LONGER LIFETIME
ABRASION
FLAME RESISTANCE
HEAD PROTECTION
FIT MOST HELMET TYPES
QUICK-RELEASE AND EASY-INSTALL
SPECIAL FR RUBBER FIT STRUCTURE
GOOD FOR OVERHEAD WELDING
GOOD FOR SITE AND FIELD
SAFETY
| Specification | Details |
|---|---|
| Optical class | 1 / 1 / 1/ 1 |
| Viewing area | 100x60mm (3.94″x2.36″) |
| Cartridge size | 110 x 90 x 9 mm (4.33″ x 3.54″ x 0.35″) |
| Arc sensor | 2 |
| Light state | DIN 3.0 |
| Dark state | DIN 9-13 |
| Shade control | Low – High, LED and button control |
| Power On/Off | Automatic On / Off |
| Sensitivity control | Low – High, LED and button control |
| UV/IR Protection | Up to Shade DIN16 at all times |
| Power supply | Solar cell. Battery replaceable, 1 x CR2302 lithium battery |
| Switching time | 1/16,000s from Light to Dark |
| Delay (Dark to light) | 0.05/0.2/0.6/1.0 s, 4-level |
| Low amperage TIG rated | ≥ 2 amps / DC; ≥ 2 amps / AC |
| Grinding | Yes |
| Battery Capacity Test | Yes |
| Low Battery Indicator | Yes |
| Dark Mode | Internal, LED and button control |
| Operating Temp | -10°C to 55°C (14°F to 131°F) |
| Storing Temp. | -20°C to 70°C (-4°F to 158°F) |
| Helmet Material | High Impact Resistance Nylon |
| Application range | Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding |
| Approved | CE, ANSI, CSA, AS/NZS, EAC |
| Specification | Details |
|---|---|
| Airflow Rate |
Manufacturer’s minimum design flow rate: Airflow Rate: 165+lpm (5.8+ cfm)
Low speed: 170+lpm (6+cfm)
High speed: 210+lpm (7.4+cfm)
|
| Fast-charging Standard Battery |
Battery type: rechargeable Li-ion battery
Battery duration: 170+lpm – 12 hours; 210+lpm – 8 hours
Battery charge time: 3 hours
Battery life: ≥ 550 charges
|
| Filter |
Filter efficiency: > 99.997%
Alarms: Visible, audible and vibration
|
| Temperature |
Operating temperature: -5°C to 55°C (23°F to 131°F)
Storage temperature: -10°C to 55°C (14°F to 131°F)
|
| Relative Humidity (R.H.) |
Operating R.H.: < 90%
Storage R.H.: < 85%
|
| Weight | 1130g (Blower unit + fast-charging standard battery) |
| Respirator Approval | EN 12941 P R SL, AS/NZS 1716 – EC EAC |

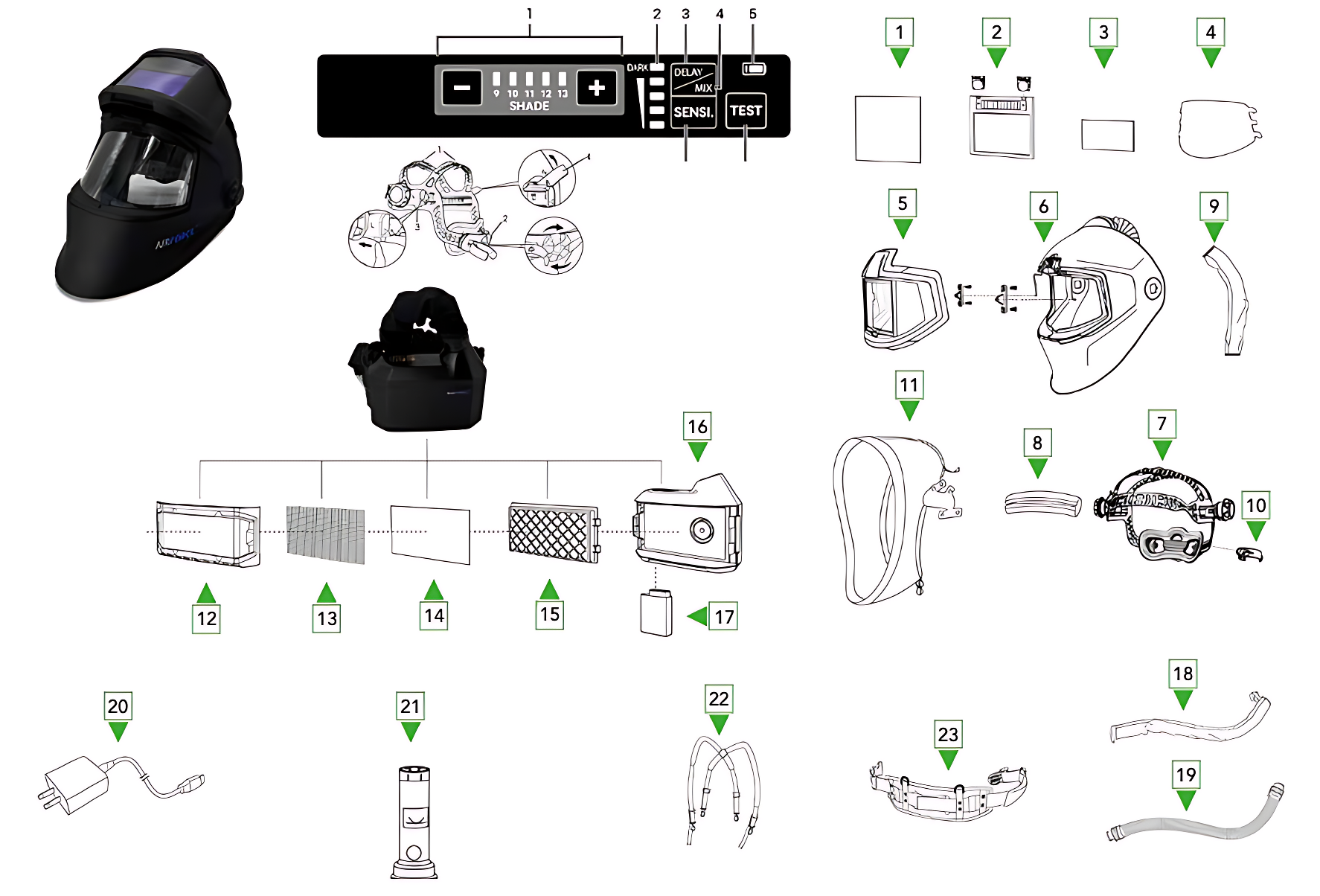

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 442100 | AIRFORCE R1 PAPR 110L complete | 1 |
| 1 | 442110 | AIRFORCE R1 PAPR Outside coverlens (110x92x1.0mm) | 1 |
| 2 | 442120 | AIRFORCE R1 PAPR Automatic cassette ADF 110L | 1 |
| 3 | 442115 | AIRFORCE R1 PAPR Inside coverlens (106×65.5×1.0mm) | 1 |
| 4 | 442117 | AIRFORCE R1 PAPR Grinding lens (247.9×114.4×1.5mm) | 1 |
| 5 | 442121 | AIRFORCE R1 PAPR Flip-up frame TM-32-V (incl. mounting parts) | 1 |
| 6 | 442122 | AIRFORCE R1 PAPR Helmet shell TM-32-V | 1 |
| 7 | 442130 | AIRFORCE R1 PAPR Headband complete | 1 |
| 8 | 442132 | AIRFORCE R1 PAPR Sweatband | 1 |
| 9 | 442133 | AIRFORCE R1 PAPR Protective cover for short hose | 1 |
| 10 | 442134 | AIRFORCE R1 C-Clip for air hose connection to headgear | 1 |
| 11 | 442135 | AIRFORCE R1 PAPR | 1 |
| 12 | 442141 | AIRFORCE R1 PAPR Face protection | 1 |
| 13 | 442142 | AIRFORCE R1 PAPR Spark arrestor | 1 |
| 14 | 442143 | AIRFORCE R1 PAPR Pre-filter | 1 |
| 15 | 442144 | AIRFORCE R1 PAPR P3 particle filter | 1 |
| 16 | 442145 | AIRFORCE R1 PAPR Motor unit | 1 |
| 17 | 442150 | AIRFORCE R1 PAPR Battery (5000mAh) | 1 |
| 18 | 442165 | AIRFORCE R1 PAPR Protective cover for air hose | 1 |
| 19 | 442166 | AIRFORCE R1 PAPR Air hose | 1 |
| 442167 | AIRFORCE R1 PAPR O-ring set | 1 | |
| 20 | 442170 | AIRFORCE R1 PAPR Battery charger (EU to USB-C) | 1 |
| 21 | 442371 | AirFORCE R1 PAPR Airflow meter OC | 1 |
| 22 | 442342 | AirFORCE Shoulder strap | 1 |
| 23 | 442344 | AirFORCE Belt with cushion | 1 |

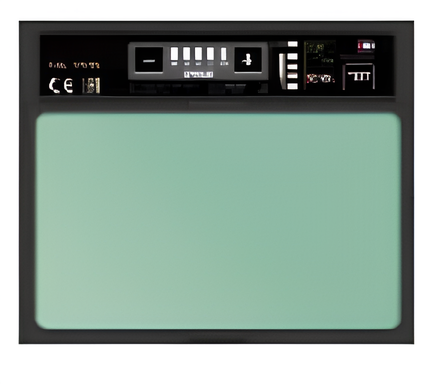

| Specification | Details |
|---|---|
| Optical class | 1 / 1 / 1/ 1 |
| Viewing area | 95x85mm (3.74”×3.35”) |
| Cartridge size | 133x114x9mm (5.24”×4.50”×0.35”) |
| Arc sensor | 4 |
| Light state | DIN 3.5 |
| Dark state | Variable Shade 6 ~ 9 / 9 ~ 13 |
| Shade control | DIN 4 |
| Power | Internal, Variable Shade |
| Sensitivity control | Shade No. from 9 to 13 |
| UV/IR Protection | Low — High, by infinitely dial knob |
| Power supply | Solar cell. Battery change required; 1 x CR2450 lithium battery |
| Switching time | 1/25.000s. from light to dark |
| Oxy fuel gas welding | Yes |
| Oxygen cutting | Yes |
| Dark to light | 0.1 ~ 1.0s by infinitely dial knob |
| Low amperage TIG rated | ≥ 2 amps / DC; ≥ 2 amps / AC |
| Grinding | Yes |
| Operating temperature | -10°C~ +55°C (14°F ~ 131°F) *Suitable For High Temperature Welding |
| Storing temperature | -20°C~ +70°C (- 4°F ~ 158°F) |
| Material helmet | High Impact Resistance Nylon |
| Total weight, with helmet | 610g |
| Application range | Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxy fuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding; |
| Approved | CE, ANSI Z87.1, CSA Z94.3, AS/NZS |
| Specification | Details |
|---|---|
| Airflow Rate |
Manufacturer’s minimum design flow rate: 165+lpm (5.8+cfm)
Low speed: 170+lpm (6+cfm)
High speed: 210+lpm (7.4+cfm)
|
| Fast-charging standard battery |
Duration: 9h-low speed (170+lpm); 5-6 h-high speed (210+lpm)
Battery charge time: 1 hour
Battery life: > 500 charges
|
| Battery Type | Visible, audible and vibrate |
| Alarms | Visible, audible and vibrate |
| Temperature |
Operating temperature: 23°F to 131°F (-5°C to 55°C)
Storage temperature: 14°F to 131°F (-10°C to 55°C)
|
| Relative Humidity (R.H.) |
Operating R.H.: < 90%
Storage R.H.: < 85%
|
| Weight | 2.25 lbs (Blower unit + fast-charging standard battery) |
| Filter |
EN12941 TH3 – Highest level of respirator protection
Filter efficiency: 99.97% (HEPA)
|

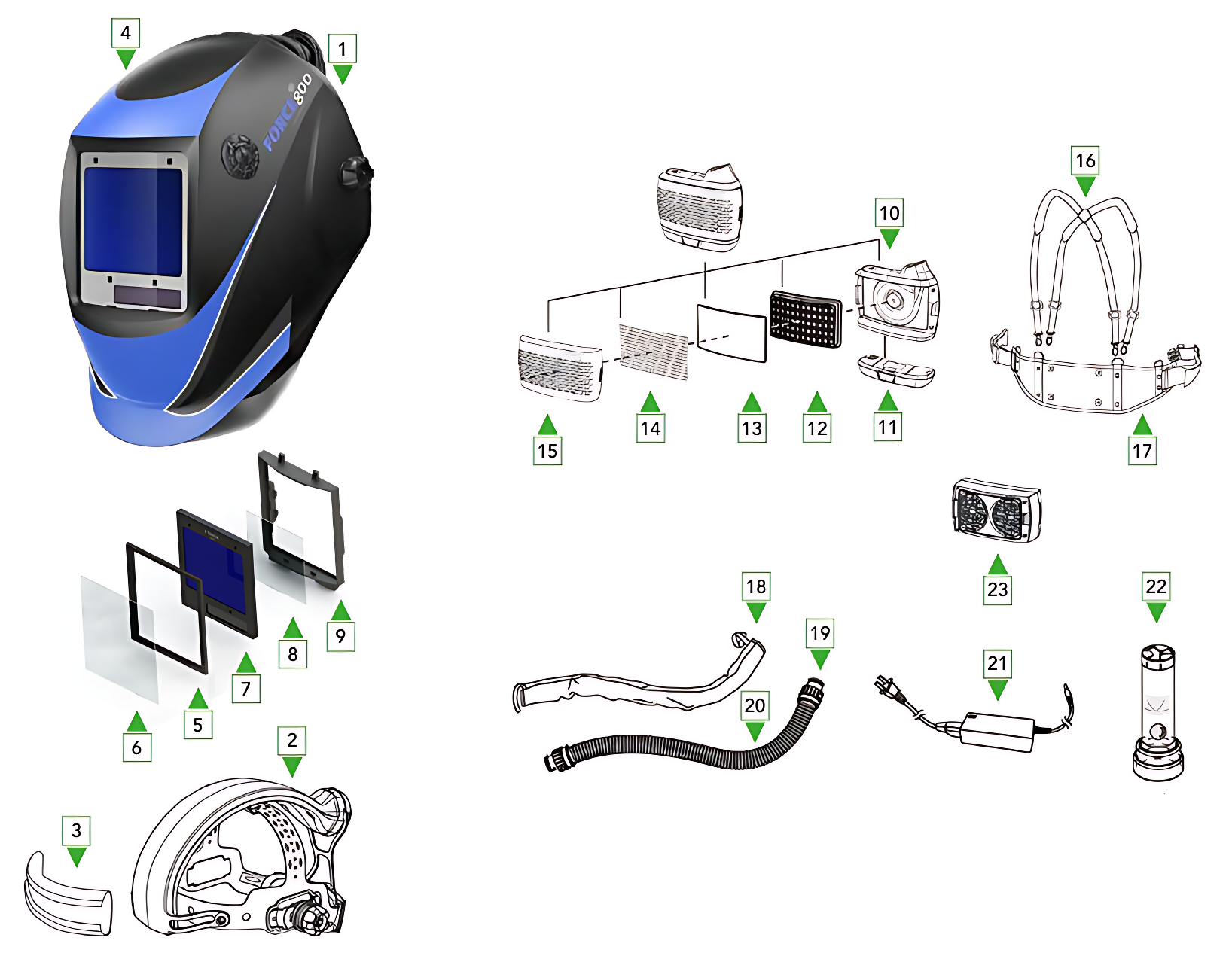

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 442300SG | AirFORCE Fresh air set 820SG PAPR V1 complete | 1 |
| 1 | 442322 | Face seal | 1 |
| 2 | 442324 | Headgear (incl. plenum & soft pad) | 1 |
| 3 | 442325 | Sweatband | 1 |
| 4 | 442305 | Helmet shell (incl. plenum & soft pad) | 1 |
| 5 | 442675 | Retaining frame rubber for front cover lens FORCE 800 | 5 |
| 6 | 442679 | Front cover lens FORCE 800 | 10 |

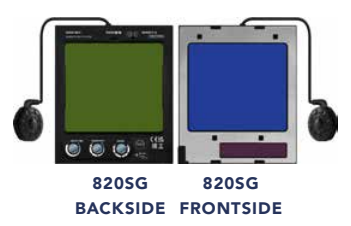

| 7 | 442650SG | Automatic cartridge FORCE 820SG ClearView | 1 |
| 8 | 442688 | Inside cover lens FORCE 820SG ClearView | 10 |
| 9 | 442649 | Gasket for cartridge FORCE 800 | 1 |
| 10 | 442332 | Body | 1 |
| 11 | 442333 | Battery | 1 |
| 12 | 442335 | Particle filter (P3 Filter) | 1 |
| 13 | 442336 | Pre-filter | 1 |
| 14 | 442337 | Spark screen | 1 |
| 15 | 442339 | Filter cover | 1 |
| 16 | 442342 | Shoulder strap | 1 |
| 17 | 442344 | Belt cushion (include screws and washers) | 1 |
| 18 | 442352 | Hose cover | 1 |
| 19 | 442354 | O-ring | 1 |
| 20 | 442356 | Hose | 1 |
| 21 | 442360 | Fast charging battery charger | 1 |
| 22 | 442370 | Airflow indicator | 1 |
| 23 | 4423355 | Gas filter | 1 |
| Specification | Details |
|---|---|
| Optical class | 1 / 1 / 1/ 1 |
| Viewing area | 107 x 75 mm (4.21″ x 2.95″) |
| Cartridge size | 156 x 123 x 33 mm (6.14″ x 4.84″ x 1.30″) |
| Arc sensor | 4 |
| Light state | DIN 4 |
| Dark state | Variable Shade 5 ~ 8 / 9 ~ 13 |
| Grind state | DIN 4 |
| Cutting shade | Shade No. from 5 to 8 |
| Welding shade | Shade No. from 9 to 13 |
| Shade control | Internal, Digital Display Control |
| Power | Automatic On / Off |
| Sensitivity control | Low — High, Digital Display Control |
| UV/IR Protection | Up to Shade DIN16 at all times |
| Power supply | Solar cell. Battery change required; 2 x CR2450 lithium battery |
| Switching time | 1/25.000s. from light to dark |
| Dark to light | 0.1 ~ 1.0s by Digital Display Control |
| Low amperage TIG rated | ≥ 2 amps / DC; ≥ 2 amps / AC |
| Grinding | Yes |
| Operating temperature | -10°C~ +55°C (14°F ~ 131°F) |
| Storing temperature | -20°C~ +70°C (- 4°F ~ 158°F) |
| Material helmet | High Impact Resistance Nylon |
| Total weight, with helmet | 765 g |
| Application range | Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding; |
| Approved | CE, ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1 |
| Specification | Details |
|---|---|
| Airflow Rate |
Manufacturer’s minimum design flow rate: 165+lpm (5.8+cfm)
Low speed: 170+lpm (6+cfm)
High speed: 210+lpm (7.4+cfm)
|
| Fast-charging standard battery |
Duration: 9h-low speed (170+lpm); 5-6 h-high speed (210+lpm)
Battery charge time: 1 hour
Battery life: > 500 charges
|
| Battery Type | Visible, audible and vibrate |
| Alarms | Visible, audible and vibrate |
| Temperature |
Operating temperature: 23°F to 131°F (-5°C to 55°C)
Storage temperature: 14°F to 131°F (-10°C to 55°C)
|
| Relative Humidity (R.H.) |
Operating R.H.: < 90%
Storage R.H.: < 85%
|
| Weight | 2.25 lbs (Blower unit + fast-charging standard battery) |
| Filter |
EN12941 TH3 – Highest level of respirator protection
Filter efficiency: 99.97% (HEPA)
|
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 442400 | AirFORCE Fresh air set PAPR V3 complete | 1 |
| 1 | 442422 | Helmet shell | 1 |
| 2 | 442410 | Shell cover | 1 |
| 3 | 442412 | Outside cover lens | 10 |
| 4 | 442414 | Autodarkening filter | 1 |
| 5 | 442416 | Inside cover lens | 10 |
| 6 | 442418 | Grinding lens cover | 1 |
| 7 | 442420 | Grinding lens | 1 |
| 8 | 442426 | Side window cover (set) | 1 |
| 9 | 442428 | Face seal | 1 |
| 10 | 442432 | Headgear (incl. sweatband) | 1 |
| 11 | 442433 | Sweatband & softpad | 1 |
| 12 | 442332 | Body | 1 |
| 13 | 4423334 | Heavy Duty battery (optional) | 1 |
| 4423335 | Standard fast charging battery | 1 | |
| 14 | 442335 | Particle filter (P3 Filter) | 1 |
| 15 | 442336 | Pre-filter | 1 |
| 16 | 442337 | Spark screen | 1 |
| 17 | 442339 | Filter cover | 1 |
| 18 | 4423355 | Gas filter | 1 |
| 19 | 442342 | Shoulder strap | 1 |
| 20 | 442344 | Belt cushion (include screws and washers) | 1 |
| 21 | 442352 | Hose cover | 5 |
| 22 | 442354 | O-ring | 1 |
| 23 | 442356 | Hose | 1 |
| 24 | 442361 | Fast charging battery charger | 1 |
| 25 | 442370 | Airflow indicator | 1 |
| Specification | FORCE 300 |
|---|---|
| Optical class | 1 / 2 / 1 / 2 |
| Viewing area | 98x44mm (3.86″x1.73″) |
| Cartridge size | 110x90x9mm (4.33″x3.54″x0.35″) |
| Arc sensor | 2 |
| Light state | DIN 3.5 |
| Dark state | Variable Shade 9 ~ 13 |
| Shade control | External, Variable Shade |
| Power On/Off | Fully Automatic |
| Sensitivity control | Low — High, by infinitely dial knob |
| UV/IR Protection | Up to Shade DIN16 at all times |
| Power supply | Solar cell. No battery change required |
| Switching time | 1/16.000s. from light to dark |
| Dark to light | 0.25 ~ 0.30s (fast); 0.65 ~ 0.80s (slow) by infinitely dial knob |
| Low amperage TIG rated | ≥ 10 amps / DC; ≥ 10 amps / AC |
| Grinding | Yes |
| Operating temperature | -10°C~ +55°C (14°F ~ 131°F) |
| Storing temperature | -20°C~ +70°C (- 4°F ~ 158°F) |
| Material helmet | High Impact Resistance Nylon |
| Total weight, with helmet | 440g |
| Approved | CE, ANSI Z87.1, CSA Z94.3, AS/NZS |

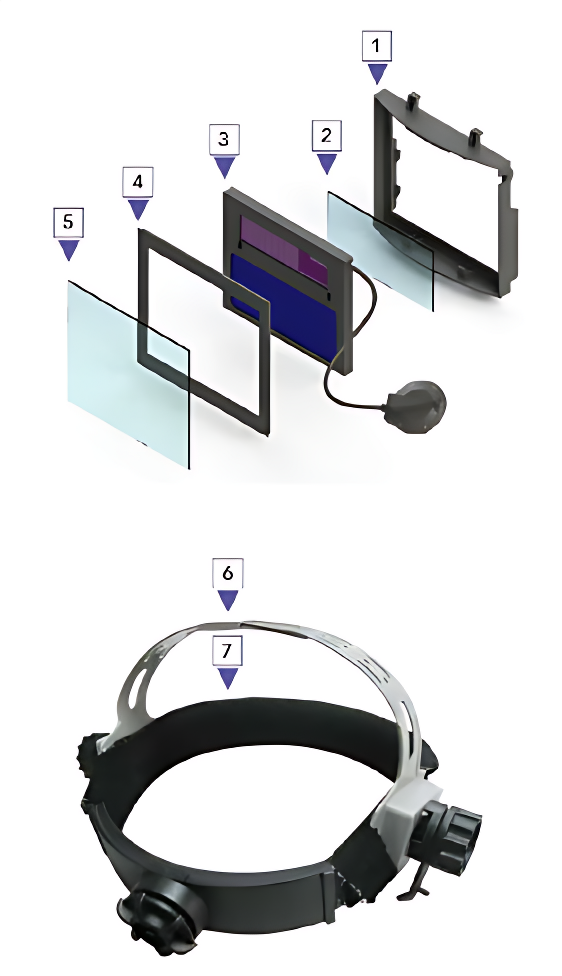

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 442601 | Welding helmet complete FORCE 300 | 1 |
| 1 | 442647 | Gasket for cartridge FORCE 300 | 1 |
| 2 | 442681 | Inside cover lens FORCE 300 | 10 |
| 3 | 442629 | Automatic cartridge FORCE 300 | 1 |
| 4 | 442673 | Retaining frame rubber for front cover lens FORCE 300 | 5 |
| 5 | 442676 | Front cover lens FORCE 300 | 10 |
| 6 | 442691 | Adjustable headband complete FORCE 300 | 1 |
| 7 | 442693 | Terry cloth sweatband FORCE 300 | 1 |
| SPECIFICATION | FORCE710S | FORCE 730S |
|---|---|---|
| Optical class | 1 / 1 / 1 / 1 | 1 / 1 / 1 / 2 |
| Viewing area | 97x47mm (3.82″x1.85″) | 95x62mm (3.74″x2.44″) |
| Cartridge size | 110x90x9mm (4.33″x3.54″x0.35″) | |
| Arc sensor | 2 | 4 |
| Light state | DIN 3.5 | |
| Dark state | Variable Shade 9 ~ 13 | Variable Shade 5~ 8 / 9 ~ 13 |
| Shade control | Internal, Variable Shade | External, Variable Shade |
| Power On/Off | Fully Automatic | |
| Sensitivity control | Low — High, by infinitely dial knob | |
| UV/IR Protection | Up to Shade DIN16 at all times | |
| Power supply | Solar cell. Battery change required; 1 x CR2450 lithium battery* | |
| Switching time | 1/25,000s. from light to dark | |
| Dark to light | 0.1 ~ 1.0s by infinitely dial knob | |
| Low amperage TIG rated | ≥ 2 amps / DC; ≥ 2 amps / AC | |
| Grinding | Yes | |
| Operating temperature | -10°C~ +55°C (14°F ~ 131°F) | |
| Storing temperature | -20°C~ +70°C (-4°F ~ 158°F) | |
| Material helmet | High Impact Resistance Nylon | |
| Total weight, with helmet | 440g | 445g |
| Application range | Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Grinding; | Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding; |
| Approved | DINplus, CE, ANSI Z87.1, CSA Z94.3, AS/NZS* | CE, ANSI Z87.1, CSA Z94.3, AS/NZS* |

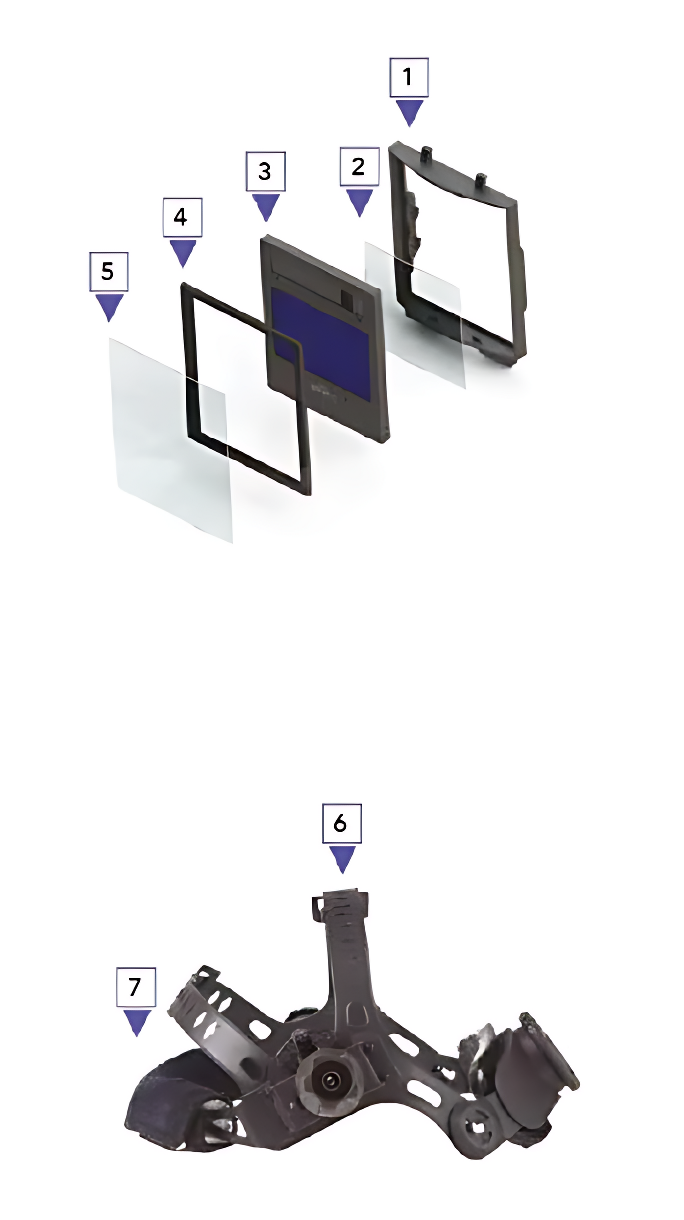

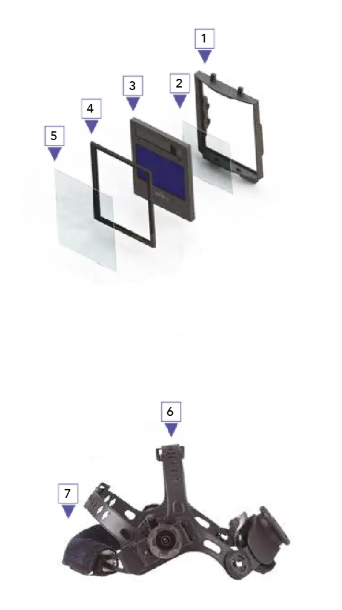

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 442604 | Welding helmet complete FORCE 710S | 1 |
| – | 442605 | Welding helmet complete FORCE 730S | 1 |
| 1 | 442648 | Gasket for cartridge FORCE 700 | 1 |
| 2 | 442680 | Inside cover lens FORCE 710S | 10 |
| 442682 | Inside cover lens FORCE 730S | 10 | |
| 3 | 442631 | Automatic cartridge FORCE 710S | 1 |
| 442633 | Automatic cartridge FORCE 730S | 1 | |
| 4 | 442674 | Retaining frame rubber for front cover lens FORCE 700 | 5 |
| 5 | 442677 | Front cover lens FORCE 700 | 10 |
| 6 | 442690 | Adjustable headband complete FORCE | 1 |
| 7 | 442692 | Terry cloth sweatband FORCE | 1 |
| Specification | FORCE 8205G |
|---|---|
| Optical class | 1 / 1 / 1/ 1 |
| Viewing area | 95x85mm (3.74″×3.35″) |
| Cartridge size | 133x114x9mm (5.24″×4.50″×0.35″) |
| Arc sensor | 4 |
| Light state | DIN 3.5 |
| Dark state | Variable Shade 6 ~ 9 / 9 ~ 13 |
| Shade control | Internal, Variable Shade |
| Power | Automatic On / Off |
| Sensitivity control | Low — High, by infinitely dial knob |
| UV/IR Protection | Up to Shade DIN16 at all times |
| Power supply | Solar cell. Battery change required; 1 x CR2450 lithium battery |
| Switching time | 1/25.000s. from light to dark |
| Oxyfuel gas welding | Yes |
| Oxygen cutting | Yes |
| Dark to light | 0.1 ~ 1.0s by infinitely dial knob |
| Low amperage TIG rated | ≥ 2 amps / DC; ≥ 2 amps / AC |
| Grinding | Yes |
| Operating temperature | -10°C~ +55°C (14°F ~ 131°F) *Suitable For High Temperature Welding |
| Storing temperature | -20°C~ +70°C (- 4°F ~ 158°F) |
| Material helmet | High Impact Resistance Nylon |
| Total weight, with helmet | 610g |
| Approved | CE, ANSI Z87.1, CSA Z94.3, AS/NZS |

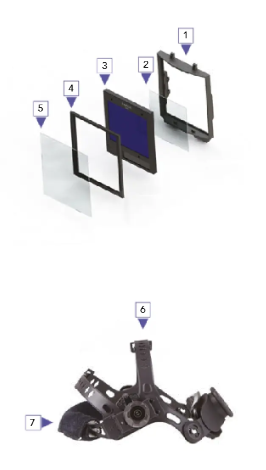

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 442610SG | Welding helmet complete FORCE 820SG | 1 |
| 1 | 442649 | Gasket for cartride FORCE 800 | 1 |
| 2 | 442688 | Inside cover lens FORCE 820SG | 10 |
| 3 | 442650SG | Automatic cartridge FORCE 820SG | 1 |
| 4 | 442675 | Retaining frame rubber for front cover lens FORCE 800 | 5 |
| 5 | 442679 | Front cover lens FORCE 800 | 10 |
| 6 | 442690 | Adjustable headband complete FORCE | 1 |
| 7 | 442692 | Terry cloth sweatband FORCE | 1 |

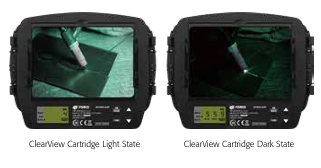

| Specification | FORCE 900 CLEARVIEW |
|---|---|
| Optical class | 1 / 1 / 1 / 1 |
| Viewing area | 107 x 75 mm (4.21″ x 2.95″) |
| Cartridge size | 156 x 123 x 33 mm (6.14″ x 4.84″ x 1.30″) |
| Arc sensor | 4 |
| Light state | DIN 4 |
| Dark state | Variable Shade 5 ~ 8 / 9 ~ 13 |
| Grind state | DIN 4 |
| Cutting shade | Shade No. from 5 to 8 |
| Welding shade | Shade No. from 9 to 13 |
| Shade control | Internal, Digital Display Control |
| Power | Automatic On / Off |
| Sensitivity control | Low — High, Digital Display Control |
| UV/IR Protection | Up to Shade DIN16 at all times |
| Power supply | Solar cell. Battery change required; 2 x CR2450 lithium battery |
| Switching time | 1/25.000s. from light to dark |
| Dark to light | 0.1 ~ 1.0s by Digital Display Control |
| Low amperage TIG rated | ≥ 2 amps / DC; ≥ 2 amps / AC |
| Grinding | Yes |
| Operating temperature | -10°C~ +55°C (14°F ~ 131°F) |
| Storing temperature | -20°C~ +70°C (- 4°F ~ 158°F) |
| Material helmet | High Impact Resistance Nylon |
| Total weight, with helmet | 765 g |
| Application range | Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding |
| Approved | CE, ANSI 287.1, CSA Z94.3, AS/NZS 1338.1 |

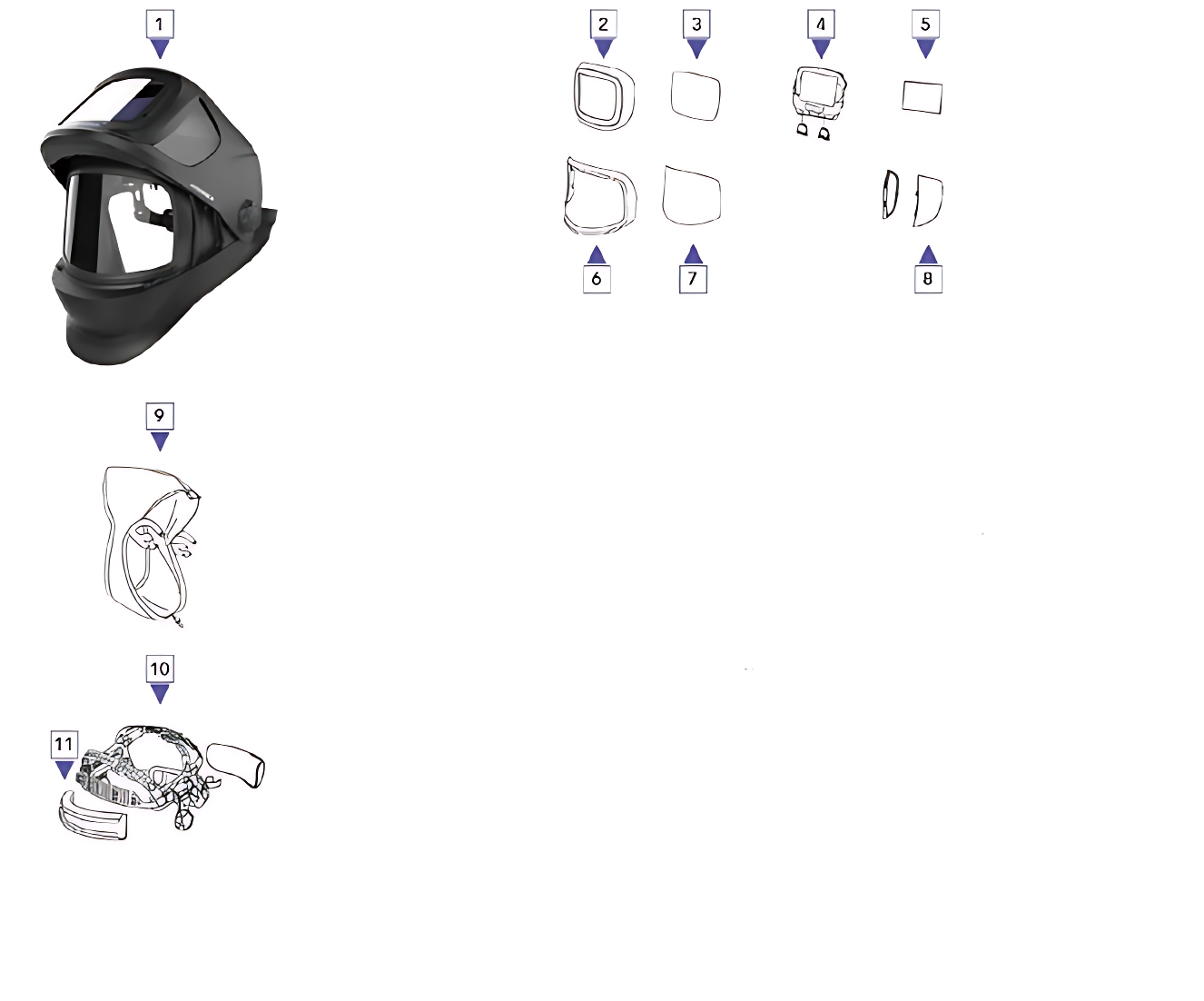

| Item | Part No. | Description | Pack Qty | |
|---|---|---|---|---|
| – | 442390 | Welding helmet complete FORCE 900 | 1 | |
| 1 | 442422 | Helmet shell | 1 | |
| 2 | 442410 | Shell cover | 1 | |
| 3 | 442412 | Outside cover lens | 10 | |
| 4 | 442414 | Autodarkening filter | 1 | |
| 5 | 442416 | Inside cover lens | 10 | |
| 6 | 442418 | Grinding lens cover | 1 | |
| 7 | 442420 | Grinding lens | 1 | |
| 8 | 442426 | Side window cover (set) | 1 | |
| 9 | 442428 | Face seal | 1 | |
| 10 | 442432 | Headgear (incl. sweatband) | 1 | |
| 11 | 442433 | Sweatband & softpad | 1 |
| Part No. | Description |
|---|---|
| 442641 | Flame Retardant Leather neck protection for FORCE 300/700/800 |
| Part No. | Description |
|---|---|
| 442640 | Flame Retardant Cotton headprotection for FORCE 300/700/800 |
| Product Description | Extended Hood for Welding Helmet |
|---|---|
| Material | Flame-Retardant cotton, washable and durable |
| Application | Protect head, ears and neck against welding spatters and burnings |

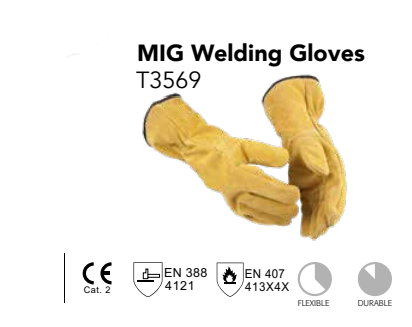

| Part No. | 66803569__* |
|---|---|
| Sizes | 8 – 11 |
| Pack Qty | 6 |

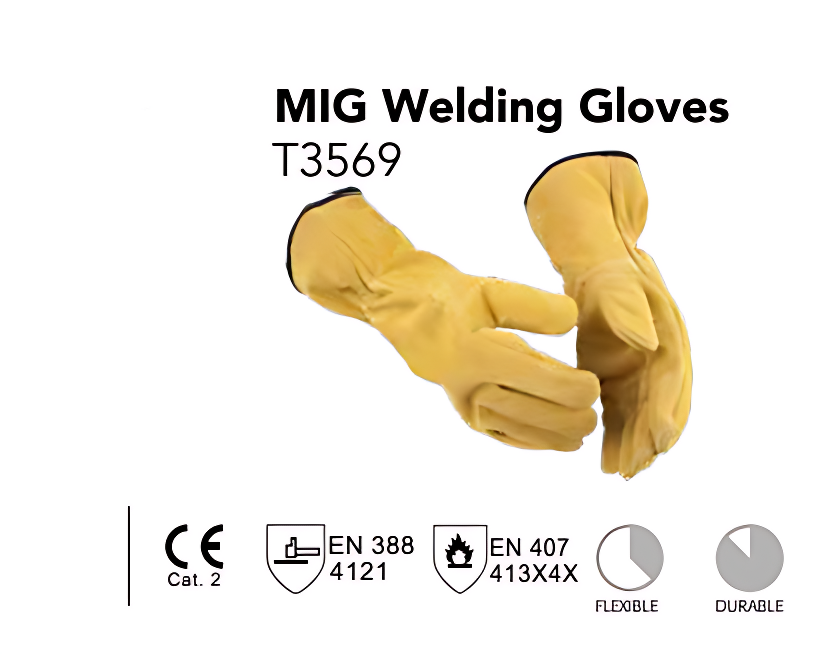

| Part No. | 66800268__* |
|---|---|
| Sizes | 8 – 10 – 11 |
| Pack Qty | 6 |
| Part No. | 66800480__* |
|---|---|
| Sizes | 8 – 10 |
| Pack Qty | 6 |
| Part No. | 66800275__* |
|---|---|
| Sizes | 8 – 12 |
| Pack Qty | 12 |
| Part No. | 66800230__* |
|---|---|
| Sizes | 8 – 11 |
| Pack Qty | 6 |
| Part No. | 66800240__* |
|---|---|
| Sizes | 7 – 11 |
| Pack Qty | 6 |
| Part No. | 66800525__* |
|---|---|
| Sizes | 6 – 11 |
| Pack Qty | 12 |
| Part No. | 66800195__* |
|---|---|
| Sizes | 8 – 11 |
| Pack Qty | 12 |
| Part No. | 66800580__* |
|---|---|
| Sizes | 6 – 11 |
| Pack Qty | 12 |
| PART NO. | DESCRIPTION | LENS | LENS MATERIAL | FRAME MARKING | STANDARDS | PACK QTY |
|---|---|---|---|---|---|---|

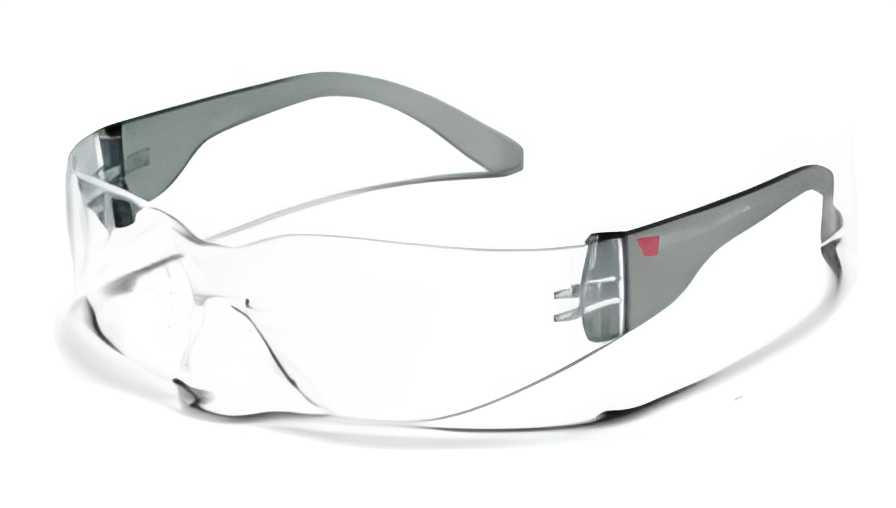

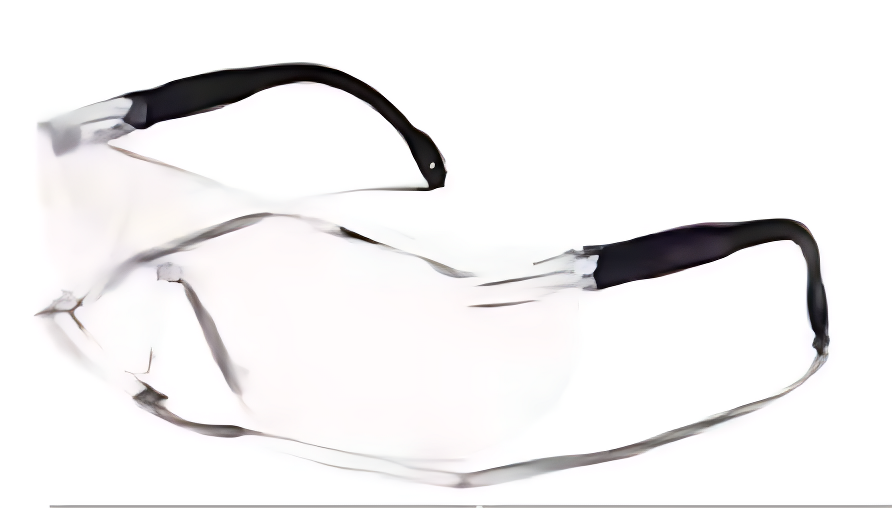

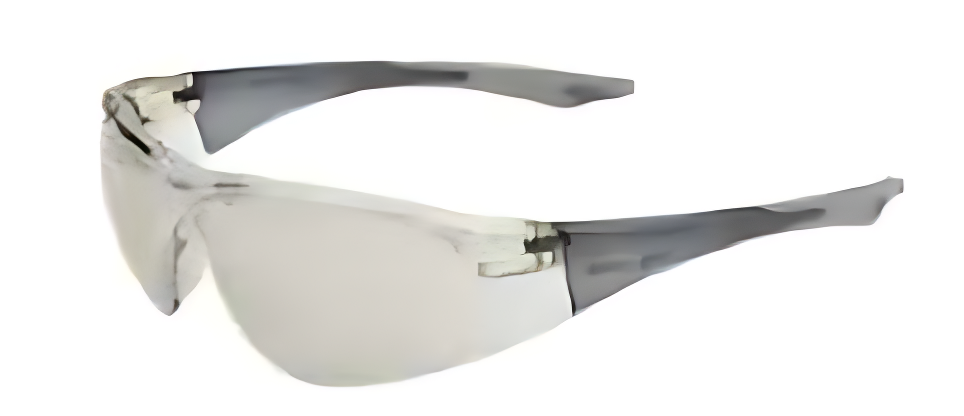

| Z380600304 | ZEKLER 30 Spectacle | Clear Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |

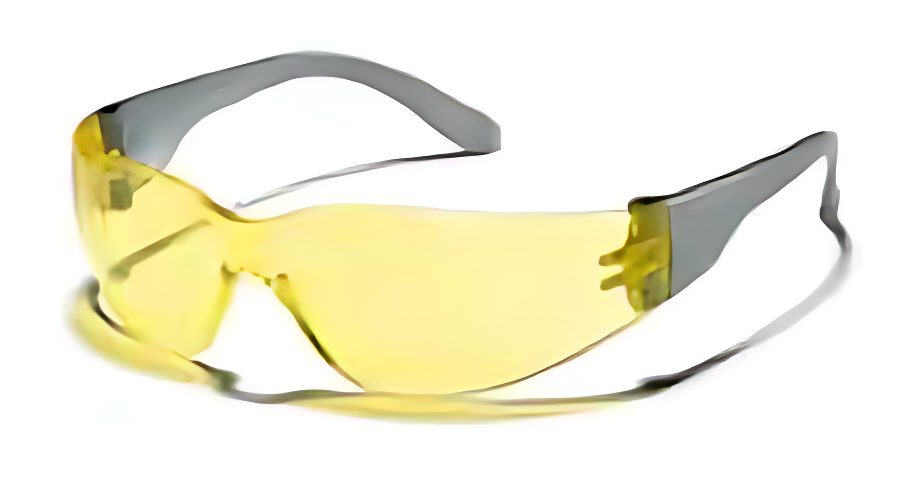

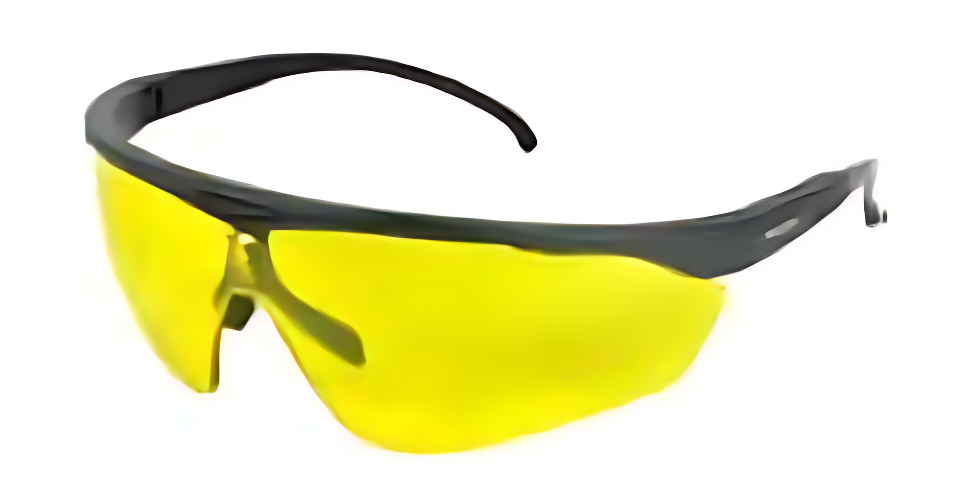

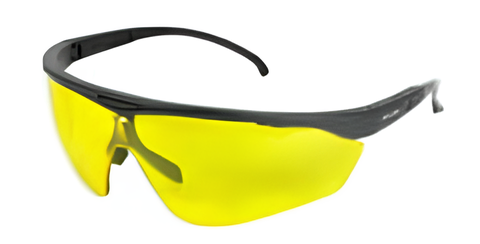

| Z380600312 | ZEKLER 30 Spectacle | Yellow Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |

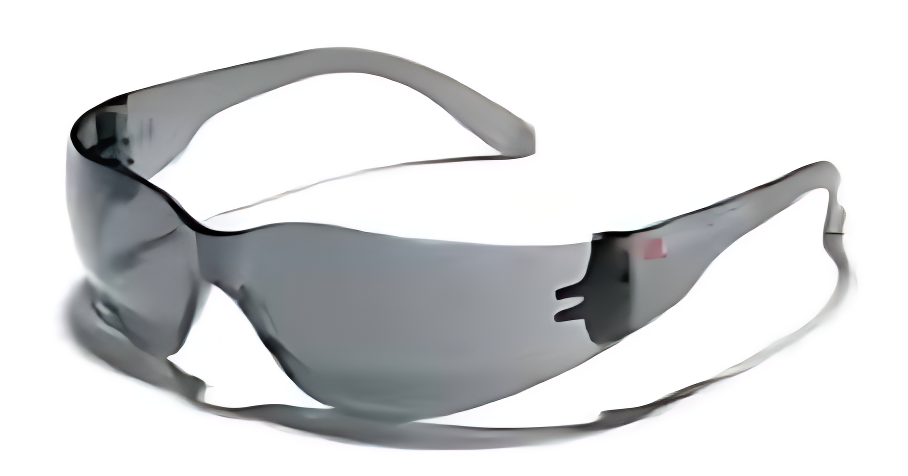

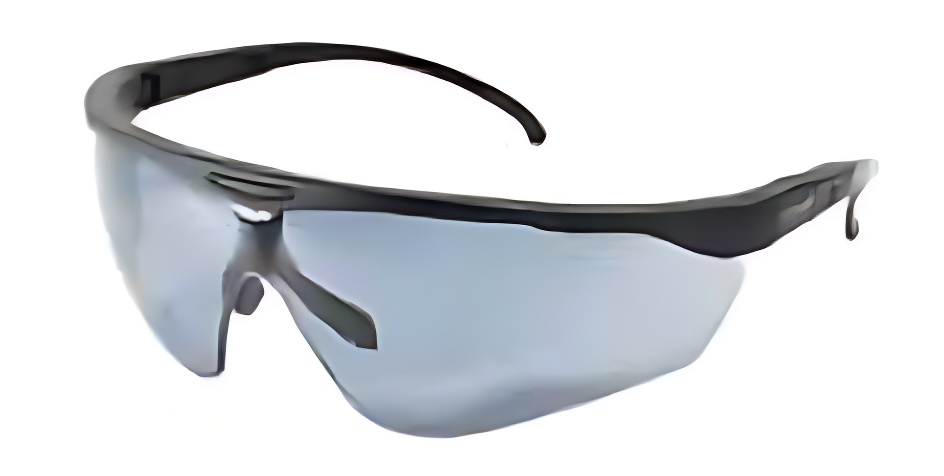

| Z380600320 | ZEKLER 30 Spectacle | Grey Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |
| PART NO. | DESCRIPTION | LENS | LENS MATERIAL | FRAME MARKING | STANDARDS | PACK QTY |
|---|---|---|---|---|---|---|

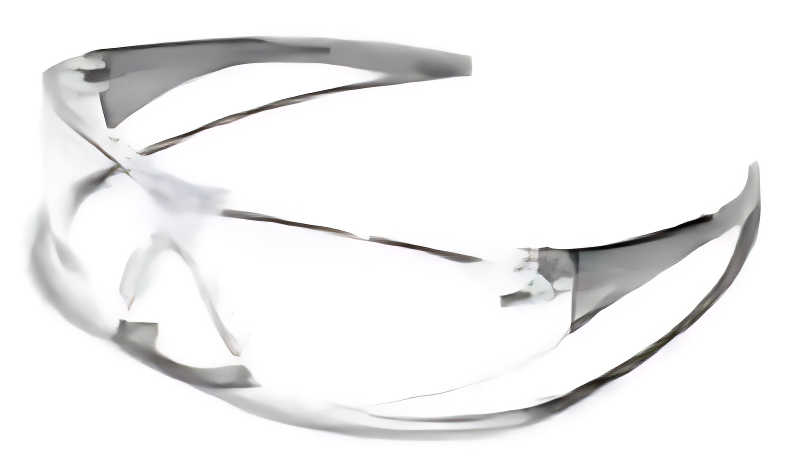

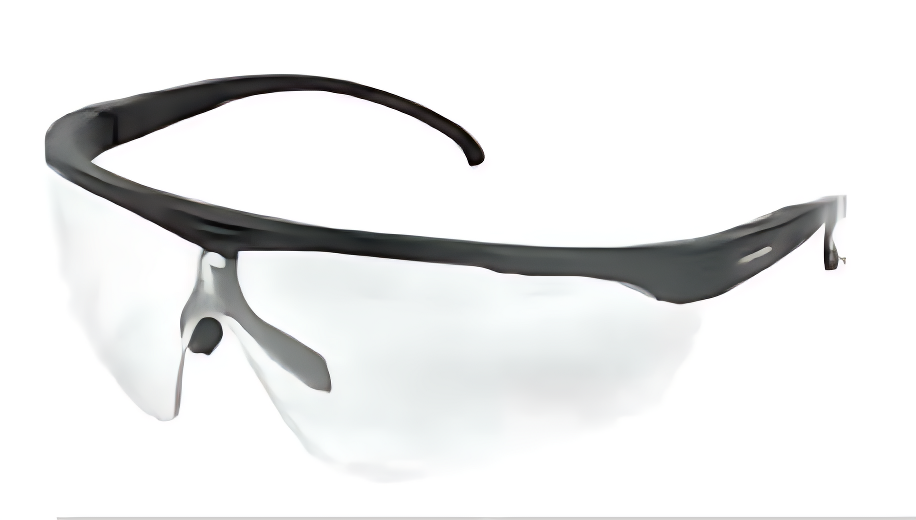

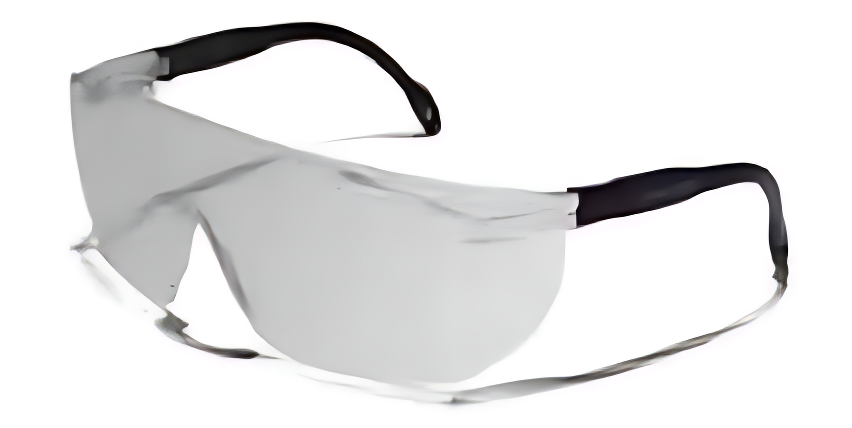

| Z380604454 | ZEKLER 34 Spectacle | Clear Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |

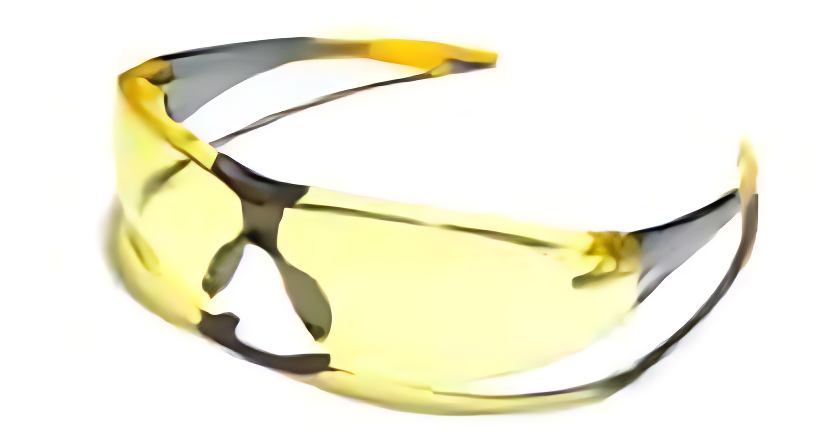

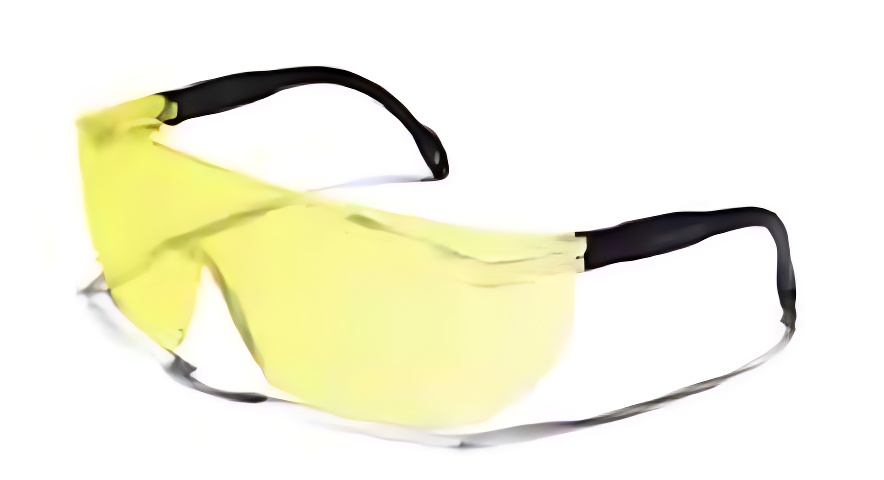

| Z380604462 | ZEKLER 34 Spectacle | Yellow Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |
| Z380604470 | ZEKLER 34 Spectacle | Grey Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |
| PART NO. | DESCRIPTION | LENS | LENS MATERIAL | FRAME MARKING | STANDARDS | PACK QTY |
|---|---|---|---|---|---|---|
| Z380604561 | ZEKLER 32 Spectacle | Clear Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |
| Z380604579 | ZEKLER 32 Spectacle | Yellow Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |
| Z380604587 | ZEKLER 32 Spectacle | Grey Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |
| PART NO. | DESCRIPTION | LENS | LENS MATERIAL | FRAME MARKING | STANDARDS | PACK QTY |
|---|---|---|---|---|---|---|
| Z380604504 | ZEKLER 31 Spectacle | Clear Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |
| Z380604412 | ZEKLER 31 Spectacle | Yellow Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |
| Z380604496 | ZEKLER 31 Spectacle | Grey Lens HC/AF* | Polycarbonate | CE EN 166 1FTN | CE EN 166:2001 | 12 |
| PART NO. | DESCRIPTION | LENS | LENS MATERIAL | STANDARDS | PACK QTY |
|---|---|---|---|---|---|

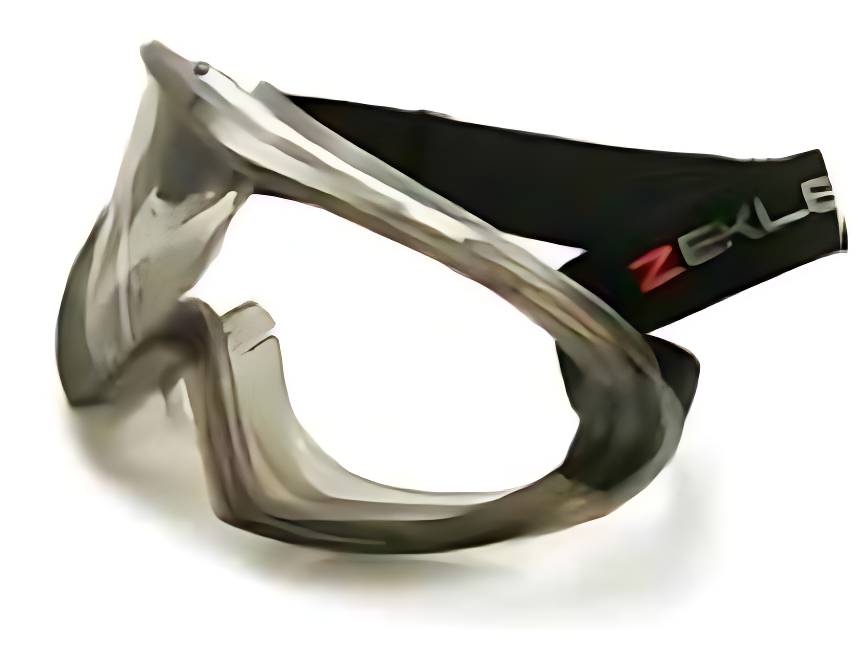

| Z380600908 | ZEKLER 90 Goggle | Clear Lens HC/AF* | Polycarbonate | CE EN 166:2001 | 12 |
| PART NO. | DESCRIPTION | LENS | LENS MATERIAL | STANDARDS | PACK QTY |
|---|---|---|---|---|---|

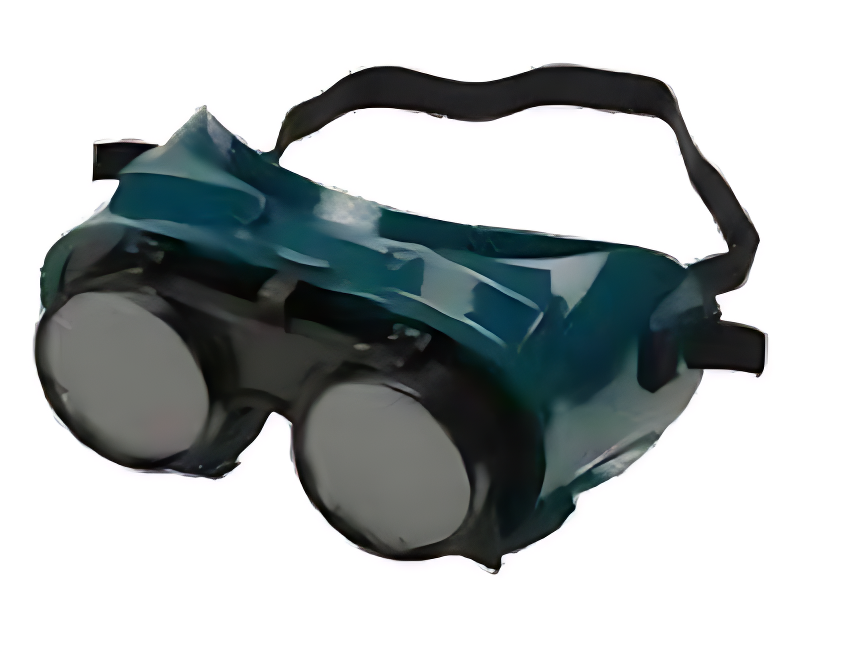

| 99175273 | Flip Up Goggle | HC / AF /W5* | Vinyl & Polycarbonate | CE EN 175:2001 | 6 |
| PART NO. | DESCRIPTION | LENS | LENS MATERIAL | STANDARDS | PACK QTY |
|---|---|---|---|---|---|

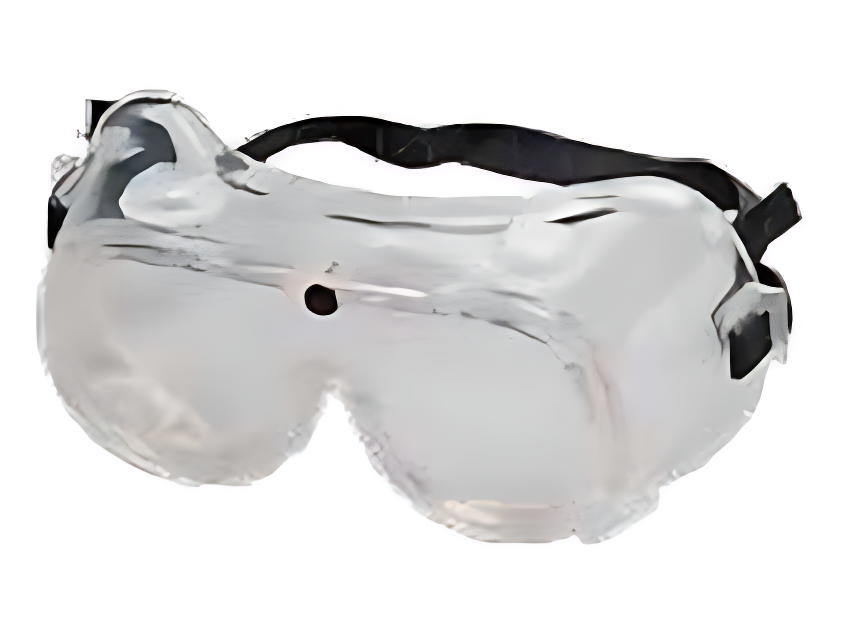

| 99653410 | Safety Grinding Goggle | HC / AF* | Vinyl & Polycarbonate | CE EN 175:2001 | 6 |
