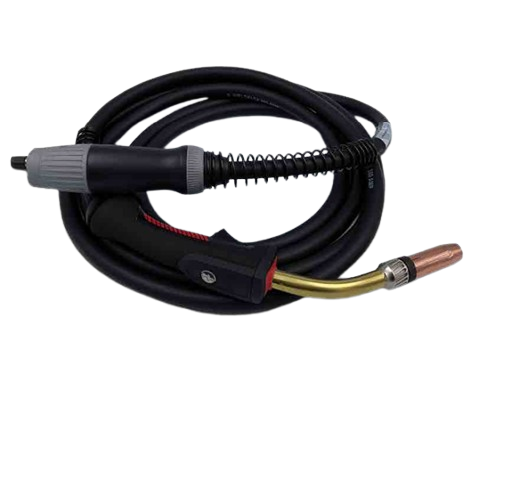

10XM MIG TORCH
Specifications

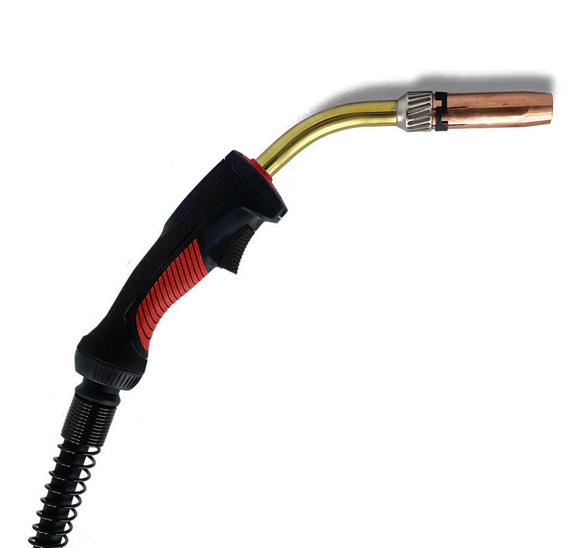

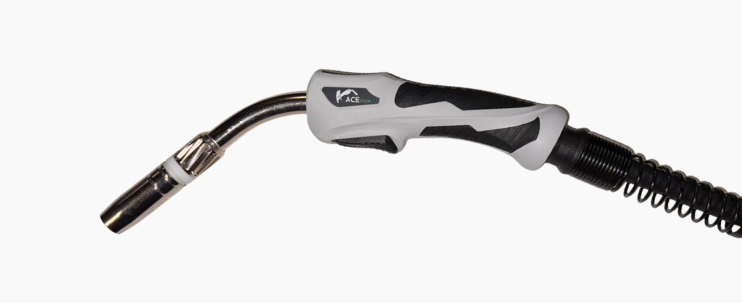

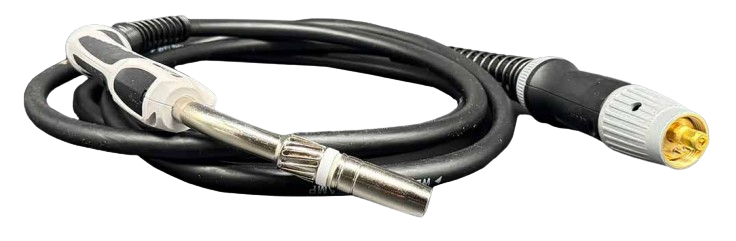

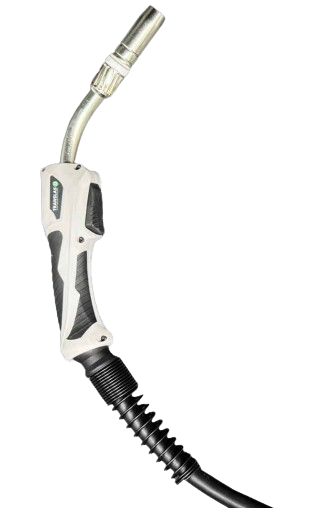

ACE 10XM MIG Torch
- SMART COMPACT HANDLE
- ERGONOMIC DESIGN
- ANTI-SLIP GRIP
- INTEGRATED LED FUNCTIONALITY (OPTIONAL)
- DURABLE & IMPACT RESISTANT

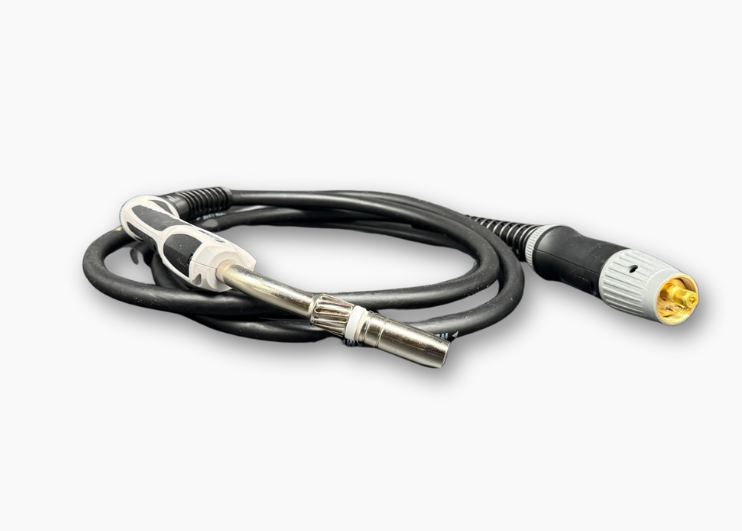

10XM ACE Series
BUILT FOR EXPERTS: COMPACT DESIGN, LONG TERM DURABILITY, & MAXIMUM CONTROL.
Smaller Handle, Greater Grip
Thanks to Smart Design the handle is compacter than ever, maintaining grip space while enhancing grip performance.
Designed For Comfort
The ergonomic, curved handle comfortably fits any hand, offering a slim, textured grip that stays comfortable, even during long welding sessions.

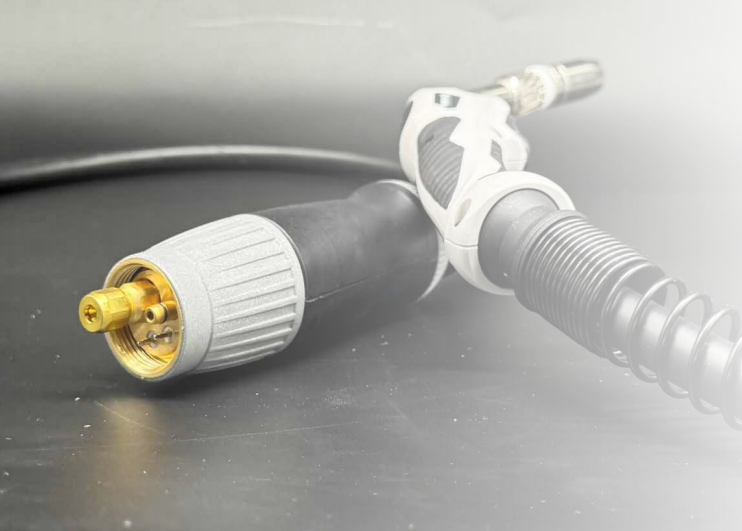

Engineered for Durability
Built to withstand daily, heavy-duty use, the 10XM Ace is made with tough, impact-resistant materials that ensure lasting durability.
Innovative Features
Optional LED for visibility, compatible with any machine.
Versatile Performance
Available in both air- and water-cooled versions, with a variety of amperage ranges.
10XM MIG TORCH LINE
Europe
North America
Europe
Technical Specification
Replacement Part
TECHNICAL DOCUMENT
10XM 15
CO2: 180 AMP
Mixed Gases: 150 AMP
Duty Cycle: 60%
10XM 24
CO2: 250 AMP
Mixed Gases: 220 AMP
Duty Cycle: 60%
10XM 25
CO2: 230 AMP
Mixed Gases: 200 AMP
Duty Cycle: 60%
10XM 26
CO2: 230 AMP
Mixed Gases: 200 AMP
Duty Cycle: 60%
10XM 36
CO2: 320 AMP
Mixed Gases: 300 AMP
Duty Cycle: 60%
10XM 40
CO2: 400 AMP
Mixed Gases: 380 AMP
Duty Cycle: 60%
8XM 240
CO2: 300 AMP
Mixed Gases: 270 AMP
Duty Cycle: 100%

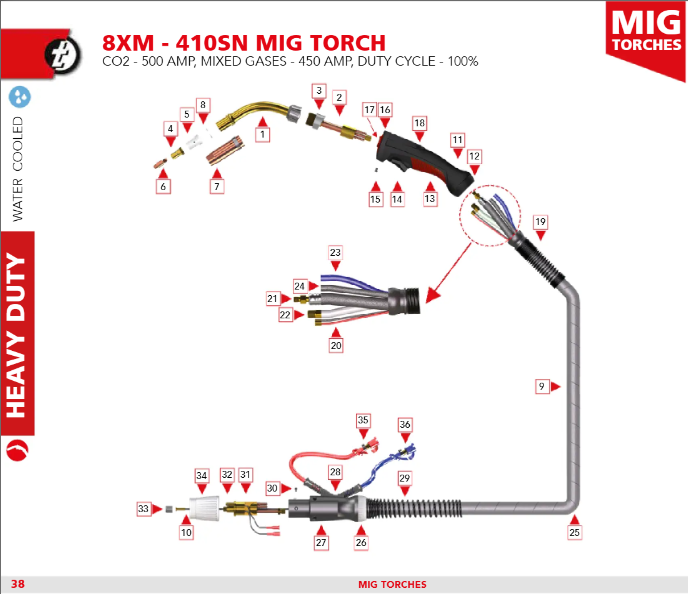

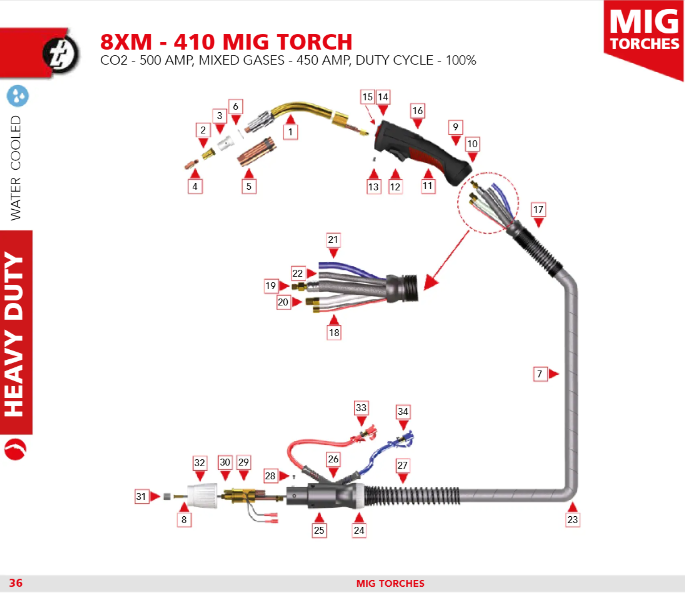

8XM 410
CO2: 500 AMP
Mixed Gases: 450 AMP
Duty Cycle: 100%

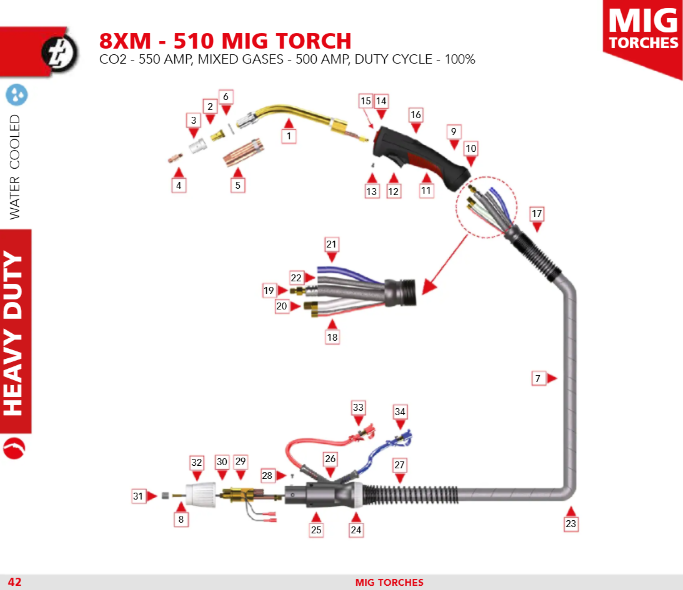

8XM 510
CO2: 550 AMP
Mixed Gases: 500 AMP
Duty Cycle: 100%

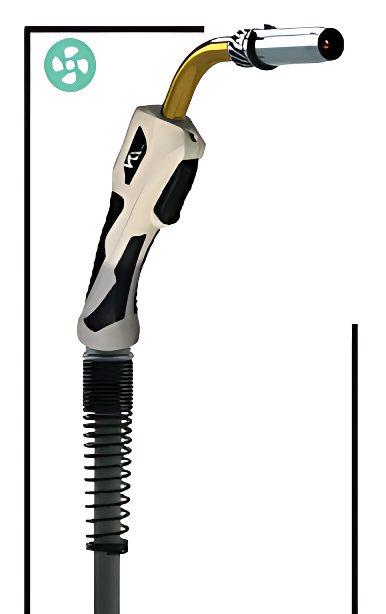

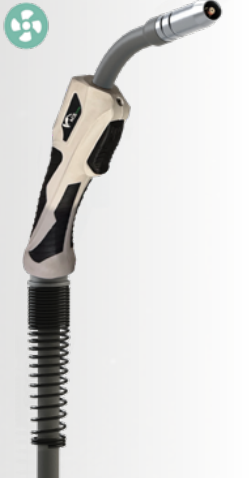

Air Cooled

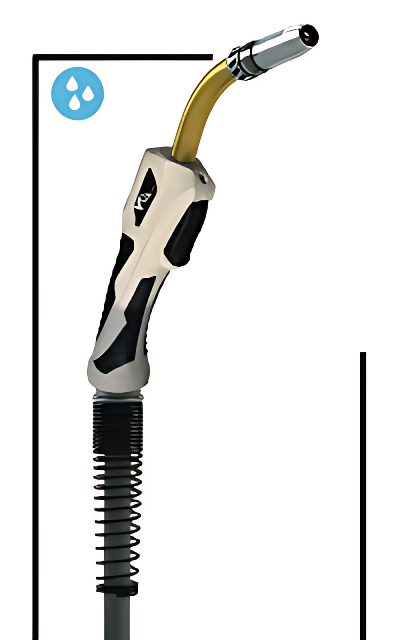

Water Cooled

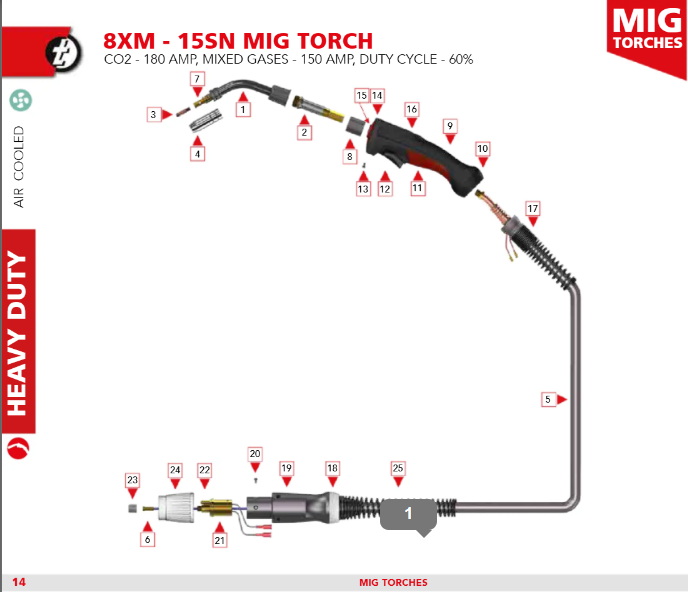

10XM-15 MIG TORCH
10XM – 24 MIG TORCH
10XM – 25 MIG TORCH
10XM – 26 MIG TORCH
10XM – 26 MIG TORCH
10XM – 40 MIG TORCH
COMPLETE TORCHES
SPARE PARTS
×
![]()

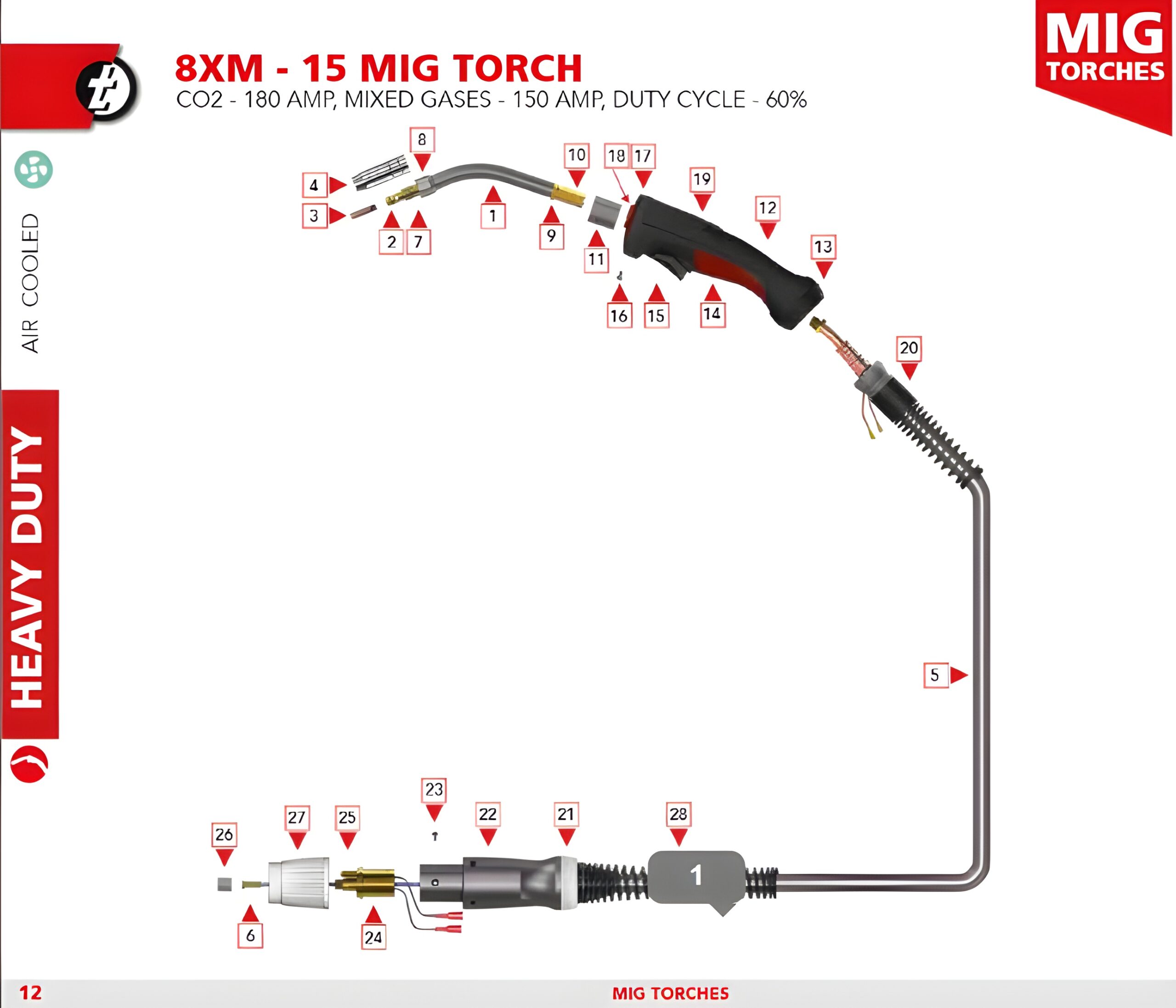

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 8M01500100300 | 8XM-15 MIG torch 3mtr | 1 |
| – | 8M01500100400 | 8XM-15 MIG torch 4mtr | 1 |
| – | 8M01500100500 | 8XM-15 MIG torch 5mtr | 1 |
×
![]()

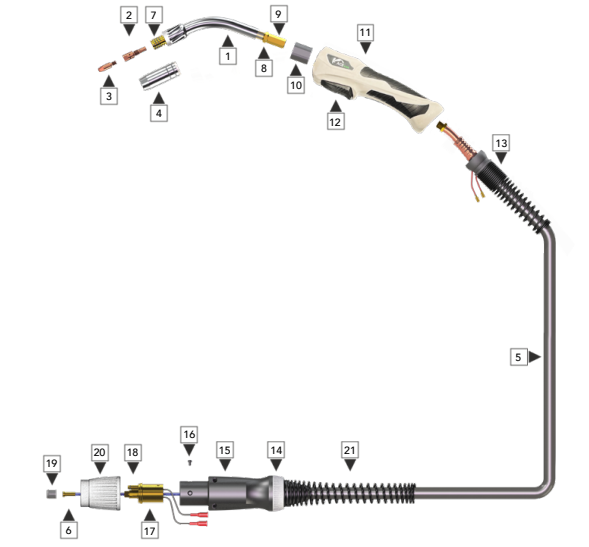

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300030 | Swanneck | 1 |
| 2 | 150000 | Tipadaptor M6 | 10 |
| 3 | 100102 | Contacttip M6-06-0.8mm | 100 |
| Other contacttips, see: Options and wear parts | Page 48 | ||
| 4 | 200120 | Nozzle conical | 10 |
| Other nozzles, see: Options and wear parts | Page 52 | ||
| 5 | 258153 | Cable assembly 16mm² 3mtr | 1 |
| 258154 | Cable assembly 16mm² 4mtr | 1 | |
| 258155 | Cable assembly 16mm² 5mtr | 1 | |
| 6 | 301535 | P.C. liner blue (ø 1,5/4,5mm round) 3mtr | 1 |
| 301545 | P.C. liner blue (ø 1,5/4,5mm round) 4mtr | 1 | |
| 301555 | P.C. liner blue (ø 1,5/4,5mm round) 5mtr | 1 | |
| Other liners, see: Options and wear parts | Page 50 | ||
| 7 | 305600 | Nozzle spring | 10 |
| 8 | 305241 | Insulator | 5 |
| 9 | 305401 | Lock nut M10x1x5mm | 10 |
| 10 | 305400 | Hexagonal fitting M10x1x26mm | 10 |
| 11 | 305500 | Plastic body | 5 |
| 12 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 13 | 385402 | 10XM Trigger | 1 |
| 3854022 | 10XM Spring for switch | 5 | |
| 10M9800 | 10XM Micro switch | 1 | |
| 14 | 8M9601 | Cable support | 1 |
| 15 | 8M9419 | 10XM Locking ring | 1 |
| 16 | 8M9400 | 10XM Housing for central connector | 1 |
| 17 | 305310 | Screw M4 X 6 | 25 |
| 18 | 305298 | Central connector Euro with spring pin | 1 |
| 19 | 305309 | Spring pin complete | 10 |
| 20 | 305316 | Liner positioner nut | 10 |
| 21 | 8M9420 | 10XM Adaptor nut | 1 |
| 8M9500 | Cable support spring | 1 |
COMPLETE TORCHES
SPARE PARTS
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| – | 10M02400100300 | 10XM-24 MIG torch 3mtr | 1 |
| – | 10M02400100400 | 10XM-24 MIG torch 4mtr | 1 |
| – | 10M02400100500 | 10 XM-24 MIG torch 5mtr | 1 |
×
![]()

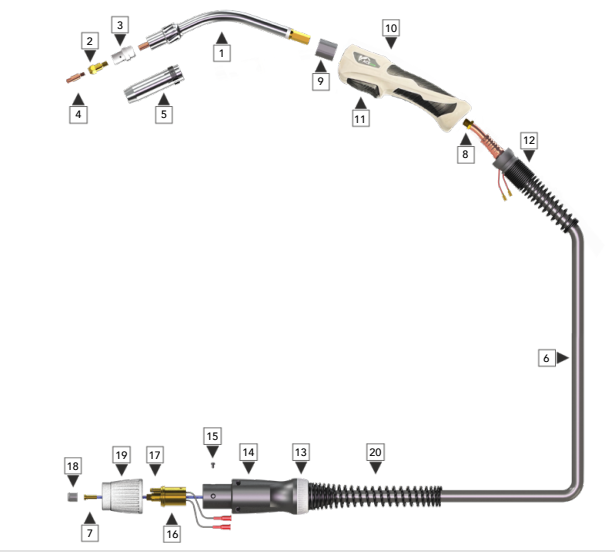

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300624 | Swanneck | 1 |
| 2 | 150002 | Tipadaptor M6 | 10 |
| 3 | 300510 | Diffuser white | 25 |
| 4 | 100206 | Contacttip M6-08-1,0mm | 100 |
| Other contacttips, see: Options and wear parts | Page 48 | ||
| 5 | 200300 | Nozzle conical | 10 |
| Other nozzles, see: Options and wear parts | Page 52 | ||
| 6 | 258253 | Cable assembly 25mm² 3mtr | 1 |
| 258254 | Cable assembly 25mm² 4mtr | 1 | |
| 258255 | Cable assembly 25mm² 5mtr | 1 | |
| 7 | 302535 | P.C. liner red (ø 2,0/4,5mm round) 3mtr | 1 |
| 302545 | P.C. liner red (ø 2,0/4,5mm round) 4mtr | 1 | |
| 302555 | P.C. liner red (ø 2,0/4,5mm round) 5mtr | 1 | |
| Other liners, see: Options and wear parts | Page 50 | ||
| 8 | 305500 | Plastic body | 5 |
| 9 | 305401 | Lock nut M10x1x5mm | 10 |
| 10 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 11 | 385402 | 10XM Trigger | 1 |
| 3854022 | 10XM Spring for switch | 5 | |
| 10M9800 | 10XM Micro switch | 1 | |
| 12 | 8M9601 | Cable support | 1 |
| 13 | 8M9419 | 10XM Locking ring | 1 |
| 24 | 8M9400 | 10XM Housing for central connector | 1 |
| 15 | 305310 | Screw M4 X 6 | 25 |
| 16 | 305298 | Central connector Euro with spring pin | 1 |
| 17 | 305309 | Spring pin complete | 10 |
| 18 | 305316 | Liner positioner nut | 10 |
| 19 | 8M9420 | 10XM Adaptor nut | 1 |
| 20 | 8M9500 | Cable support spring | 1 |
COMPLETE TORCHES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 10M02500100300 | 10XM-25 MIG torch 3mtr | 1 |
| 10M02500100400 | 10XM-25 MIG torch 4mtr | 1 |
| 10M02500100500 | 10XM-25 MIG torch 5mtr | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 300625 | Swaneck | 1 | |
| 150102 | Tipadapter M6 | 10 | |
| 150106 | Tipadapter M8 | 10 | |
| 100206 | Contacttip Mo-06;1.0mm | 10 | |
| 200115 | Nozzle conical | 1 | |
| 258253 | Cable assembly 25mm² 3mtr | 1 | |
| 258254 | Cable assembly 25mm² 4mtr | 1 | |
| 258255 | Cable assembly 25mm² 5mtr | 1 | |
| 302345 | P.C. liner red (Ø 2.0/4.5mm round) 3mtr | 1 | |
| 302355 | P.C. liner red (Ø 2.0/4.5mm round) 4mtr | 1 | |
| 302365 | P.C. liner red (Ø 2.0/4.5mm round) 5mtr | 1 | |
| 305620 | Nozzle spring | 1 | |
| 305401 | Lock nut M10x1.5mm | 1 | |
| 305009 | Hexagonal fitting M10x1mm | 5 | |
| 305500 | Plastic body | 1 | |
| 10M9900 | 10XM Handle complete 16mm | 1 | |
| 385402 | 10XM Trigger | 1 | |
| 385402 | 10XM Spring for switch | 5 | |
| 10M9800 | 10XM Micro switch | 1 | |
| 8M9601 | Cable support | 1 | |
| 8M9419 | 10XM Locking ring | 1 | |
| 8M9400 | 10XM Housing for central connector | 1 | |
| 305310 | Screw M4 x 6 | 25 | |
| 305298 | Central connector Euro with spring pin | 1 | |
| 305309 | Spring pin complete | 10 | |
| 305316 | Liner positioner nut | 10 | |
| 8M9420 | 10XM Adaptor nut | 1 | |
| 8M9500 | Cable support spring | 1 |
COMPLETE TORCHES
SPARE PARTS
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M02600100300 | 10XM-26 MIG torch 3mtr | 1 |
| – | 10M02600100400 | 10XM-26 MIG torch 4mtr | 1 |
| – | 10M02600100500 | 10XM-26 MIG torch 5mtr | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300626 | Swaneck | 1 |
| 2 | 150202 | Tipadapter M6 | 10 |
| 3 | 150203 | Tipadapter M8 | 10 |
| 300520 | Diffuser white | 25 | |
| 300525 | Diffuser black | 25 | |
| 4 | 100206 | Contacttip M6-08;1.0mm | 100 |
| Other contacttips, see: Options and wear parts Page 48 | |||
| 5 | 200810 | Nozzle conical | 10 |
| Other nozzles, see: Options and wear parts Page 52 | |||
| 6 | 258253 | Cable assembly 25mm² 3mtr | 1 |
| 258254 | Cable assembly 25mm² 4mtr | 1 | |
| 258255 | Cable assembly 25mm² 5mtr | 1 | |
| 7 | 302535 | P.C. liner red (Ø 2.0/4.5mm round) 3mtr | 1 |
| 302545 | P.C. liner red (Ø 2.0/4.5mm round) 4mtr | 1 | |
| 302555 | P.C. liner red (Ø 2.0/4.5mm round) 5mtr | 1 | |
| Other liners, see: Options and wear parts Page 50 | |||
| 8 | 305401 | Lock nut M10x1.5mm | 10 |
| 9 | 305500 | Plastic body | 5 |
| 10 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 11 | 385402 | 10XM Trigger | 1 |
| 3854022 | 10XM Spring for switch | 5 | |
| 10M9800 | 10XM Micro switch | 1 | |
| 12 | 8M9601 | Cable support | 1 |
| 13 | 8M9419 | 10XM Locking ring | 1 |
| 14 | 8M9400 | 10XM Housing for central connector | 1 |
| 15 | 305310 | Screw M4 x 6 | 25 |
| 16 | 305298 | Central connector Euro with spring pin | 1 |
| 17 | 305309 | Spring pin complete | 10 |
| 18 | 305316 | Liner positioner nut | 10 |
| 19 | 8M9420 | 10XM Adaptor nut | 1 |
| 20 | 8M9500 | Cable support spring | 1 |
COMPLETE TORCHES
SPARE PARTS
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M03600100300 | 10XM-36 MIG torch 3mtr | 1 |
| – | 10M03600100400 | 10XM-36 MIG torch 4mtr | 1 |
| – | 10M03600100500 | 10XM-36 MIG torch 5mtr | 1 |
×
![]()

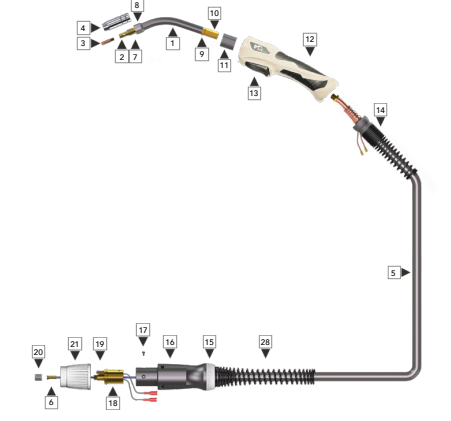

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300636 | Swaneck | 1 |
| 2 | 150302 | Tipadaptor M6 | 10 |
| 150304 | Tipadaptor M8 | 10 | |
| 3 | 300530 | Diffuser white | 25 |
| 300540 | Diffuser black | 25 | |
| 4 | 100208 | Contacttip M6-08;1,2mm | 100 |
| Other contacttips, see: Options and wear parts Page 48 | |||
| 5 | 200610 | Nozzle conical | 10 |
| Other nozzles, see: Options and wear parts Page 52 | |||
| 6 | 258363 | Cable assembly 50mm² 3mtr | 1 |
| 258364 | Cable assembly 50mm² 4mtr | 1 | |
| 258365 | Cable assembly 50mm² 5mtr | 1 | |
| 7 | 302535 | P.C. liner red (Ø 2.0/4.5mm round) 3mtr | 1 |
| 302545 | P.C. liner red (Ø 2.0/4.5mm round) 4mtr | 1 | |
| 302555 | P.C. liner red (Ø 2.0/4.5mm round) 5mtr | 1 | |
| Other liners, see: Options and wear parts Page 50 | |||
| 8 | 305401 | Lock nut M10x1x5mm | 10 |
| 9 | 305500 | Plastic body | 5 |
| 10 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 11 | 385402 | 10XM Trigger | 1 |
| 3854022 | 10XM Spring for switch | 5 | |
| 10M9800 | 10XM Micro switch | 1 | |
| 12 | 8M9601 | Cable support | 1 |
| 13 | 8M9419 | 10XM Locking ring | 1 |
| 14 | 8M9400 | 10XM Housing for central connector | 1 |
| 15 | 305310 | Screw M4 x 6 | 25 |
| 16 | 305298 | Central connector Euro with spring pin | 1 |
| 17 | 305309 | Spring pin complete | 10 |
| 18 | 305316 | Liner positioner nut | 10 |
| 19 | 8M9420 | 10XM Adaptor nut | 1 |
| 20 | 8M9500 | Cable support spring | 1 |

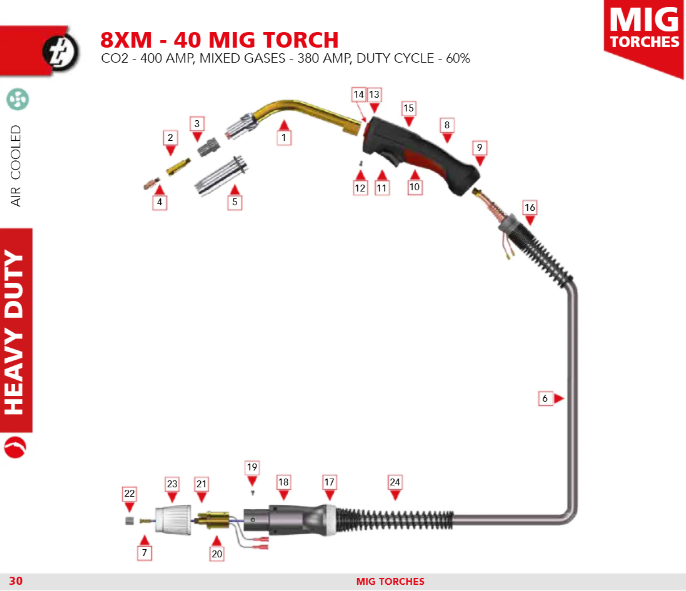

COMPLETE TORCHES
SPARE PARTS
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M04000100300 | 10XM-40 MIG torch 3mtr | 1 |
| – | 10M04000100400 | 10XM-40 MIG torch 4mtr | 1 |
| – | 10M04000100500 | 10XM-40 MIG torch 5mtr | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300640 | Swanneck | 1 |
| 2 | 150325 | Tipadaptor M8 | 1 |
| 3 | 300550 | Diffuser black | 25 |
| 4 | 100304 | Contacttip MB-10-1,2mm | 50 |
| 5 | 200710 | Nozzle conical | 10 |
| 200700 | Nozzle cylindrical | 10 | |
| 6 | 258403 | Cable assembly 70mm² 3mtr | 1 |
| 258404 | Cable assembly 70mm² 4mtr | 1 | |
| 258405 | Cable assembly 70mm² 5mtr | 1 | |
| 7 | 303635 | P.C. liner yellow (ø 2,5/4,5mm round) 3mtr | 1 |
| 303645 | P.C. liner yellow (ø 2,5/4,5mm round) 4mtr | 1 | |
| 303655 | P.C. liner yellow (ø 2,5/4,5mm round) 5mtr | 1 | |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 1 |
| 3854022 | 10XM Spring for switch | 5 | |
| 10M9800 | 10XM Micro switch | 1 | |
| 10 | 8M9601 | Cable support | 1 |
| 11 | 8M9419 | 10XM Locking ring | 1 |
| 12 | 8M9400 | 10XM Housing for central connector | 1 |
| 13 | 305310 | Screw M4 x 6 | 25 |
| 14 | 305301 | Central connector Euro with spring pin | 1 |
| 15 | 305309 | Spring pin complete | 10 |
| 16 | 305316 | Liner positioner nut | 10 |
| 17 | 8M9420 | 10XM Adaptor nut | 1 |
| 18 | 8M9500 | Cable support spring | 1 |

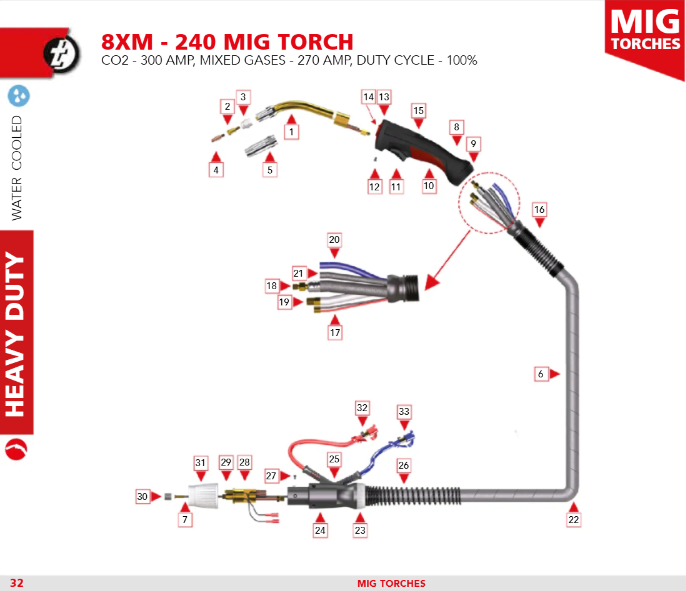

10XM – 240 MIG TORCH
10XM – 410 MIG TORCH
10XM – 510 MIG TORCH

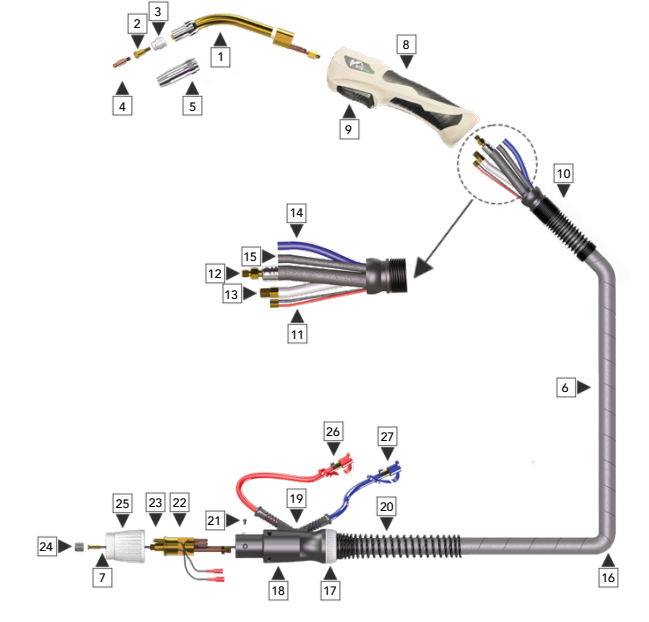

COMPLETE TORCHES
SPARE PARTS
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M24000300030 | 10XM-240 MIG torch 3mtr | 1 |
| – | 10M24000300040 | 10XM-240 MIG torch 4mtr | 1 |
| – | 10M24000300050 | 10XM-240 MIG torch 5mtr | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300623 | Swanneck | 1 |
| 2 | 150002 | Tipadaptor M6 | 10 |
| 3 | 300510 | Diffuser white | 25 |
| 4 | 100208 | Contacttip M6-08 1.2mm | 100 |
| 5 | 200300 | Nozzle conical | 10 |
| 6 | 258413 | Cable assembly complete 3mtr | 1 |
| – | 258414 | Cable assembly complete 4mtr | 1 |
| – | 258415 | Cable assembly complete 5mtr | 1 |
| 7 | 304635 | Plain liner (ø 2.0/4.5mm round) 3mtr | 1 |
| – | 304645 | Plain liner (ø 2.0/4.5mm round) 4mtr | 1 |
| – | 304655 | Plain liner (ø 2.0/4.5mm round) 5mtr | 1 |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 5 |
| – | 3854022 | 10XM Spring for switch | 5 |
| – | 10M9800 | 10XM Micro switch | 1 |
| 10 | 8M9602 | Cable support with ball-and-socket joint (handle side) | 1 |
| 11 | 306505 | Switch cable 1×0.75mm² per mtr | 100 |
| 12 | 258513 | Power/water cable 3mtr | 1 |
| – | 258514 | Power/water cable 4mtr | 1 |
| – | 258515 | Power/water cable 5mtr | 1 |
| 13 | 258523 | Outer liner 3mtr | 1 |
| – | 258524 | Outer liner 4mtr | 1 |
| – | 258525 | Outerliner 5mtr | 1 |
| 14 | 258553 | Water inlet hose 5×8mm blue per mtr | 100 |
| – | 258566 | Water outlet hose 5×8mm red per mtr | 100 |
| 15 | 258419 | Gas hose 5×8mm black per mtr | 100 |
| 16 | 259200 | Canvas sheathing 25×1.5mm per mtr | 40 |
| 17 | 8M9419 | 10XM locking ring | 1 |
| 18 | 8M9400 | 10XM Housing for central connector | 1 |
| 19 | 350881 | Water hose guide | 1 |
| 20 | 358201 | Cable support spring | 1 |
| 21 | 305310 | Screw M4×6 | 25 |
| 22 | 305304 | Central connector Euro with spring pin | 1 |
| 23 | 305091 | Spring pin complete | 10 |
| 24 | 305316 | Liner positioner nut | 10 |
| 25 | 8M9420 | 10XM Adaptor nut | 1 |
| 26 | 258701 | Waterstop red | 10 |
| 27 | 258702 | Waterstop blue | 10 |

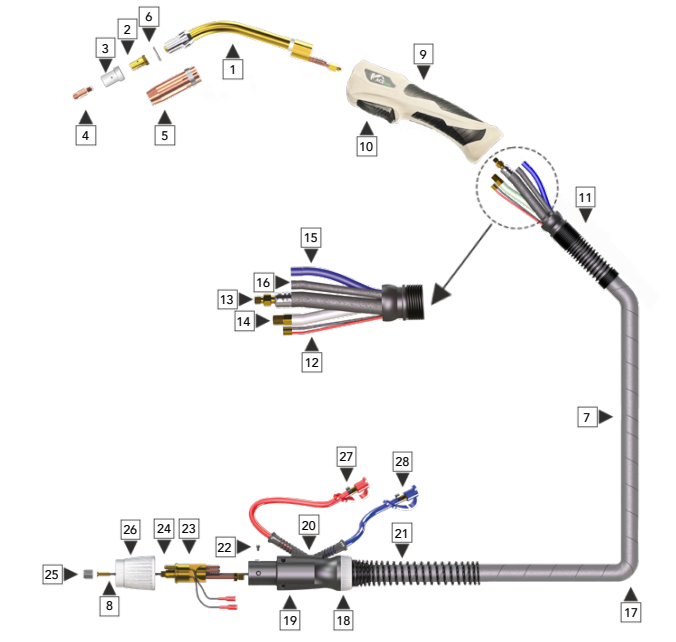

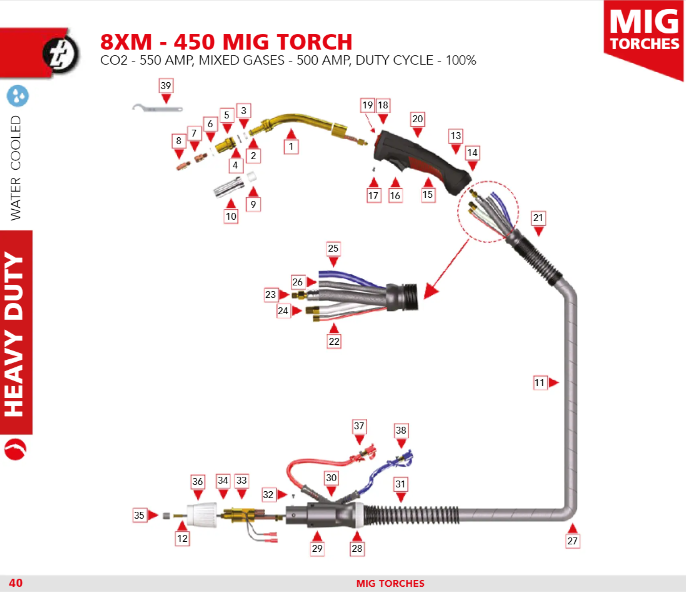

COMPLETE TORCHES
SPARE PARTS
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| – | 10M41000300300 | 10XM-410 MIG torch 3mtr | 1 |
| – | 10M41000300400 | 10XM-410 MIG torch 4mtr | 1 |
| – | 8M41000300500 | 10M-410 MIG torch 5mtr | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300641 | Swanneck (18mm Swanneck) | 1 |
| 2 | 150404 | Tipadapter M8 | 10 |
| – | 150402 | Tipadapter M6 | 10 |
| 3 | 300560 | Diffuser white | 25 |
| – | 300570 | Diffuser black | 25 |
| 4 | 100304 | Contacttip M8-10-12mm | 50 |
| – | 200820 | Other contacttips, see: Options and wear parts | Page 48 |
| 5 | 200820 | Nozzle conical (Heavy Duty) | 10 |
| – | 306640 | Inculasting washer | Page 52 |
| 6 | 308414 | Cable assembly complete 3mtr | 1 |
| – | 258415 | Cable assembly complete 4mtr | 1 |
| 7 | 304455 | Plain liner (ø 2,0/4,5mm round) 3mtr | 1 |
| – | 304465 | Plain liner (ø 2,0/4,5mm round) 4mtr | 1 |
| – | 304465 | Plain liner (ø 2,0/4,5mm round) 5mtr | 1 |
| – | 1040900 | Other liners, see: Options and wear parts | Page 50 |
| 9 | 385402 | 10XM Handle complete 16mm | 1 |
| 10 | 385402 | 10XM Trigger | 1 |
| – | 385402 | 10XM Spring for switch | 5 |
| – | 1040800 | 10XM Micro switch | 1 |
| 11 | 8M9602 | Cable support with ball-and-socket joint (handle side) | 1 |
| 12 | 306505 | Switch cable 1×0,75mm² per mtr | 100 |
| 13 | 258513 | Power/water cable 3mtr | 1 |
| – | 258514 | Power/water cable 4mtr | 1 |
| – | 258515 | Power/water cable 5mtr | 1 |
| 14 | 258523 | Outer liner 3mtr | 1 |
| – | 258524 | Outer liner 4mtr | 1 |
| – | 258525 | Outerliner 5mtr | 1 |
| 15 | 258535 | Water inlet hose 5x8mm blue per mtr | 100 |
| – | 258566 | Water outlet hose 5x8mm red per mtr | 100 |
| 16 | 256679 | Gas hose 5x8mm black per mtr | 100 |
| 17 | 259200 | Canvas sheating 25×1,5mm per mtr | 40 |
| 18 | 8M9419 | 10XM locking ring | 1 |
| 19 | 8M9400 | 10XMHousing for central connector | 1 |
| 20 | 350881 | Water hose guide | 1 |
| 21 | 358201 | Cable support spring | 1 |
| 22 | 305310 | Screw M4x6 | 25 |
| 23 | 305304 | Central connector Euro with spring pin | 1 |
| 24 | 3053091 | Spring pin complete | 10 |
| 25 | 305316 | Liner positioner nut | 10 |
| 26 | 8M9420 | 10XM Adapter nut | 1 |
| 27 | 258701 | Waterstop red | 10 |
| 28 | 258702 | Waterstop blue | 10 |

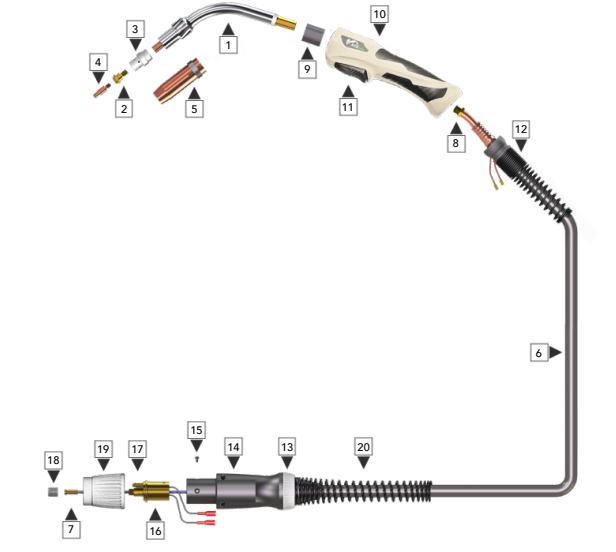

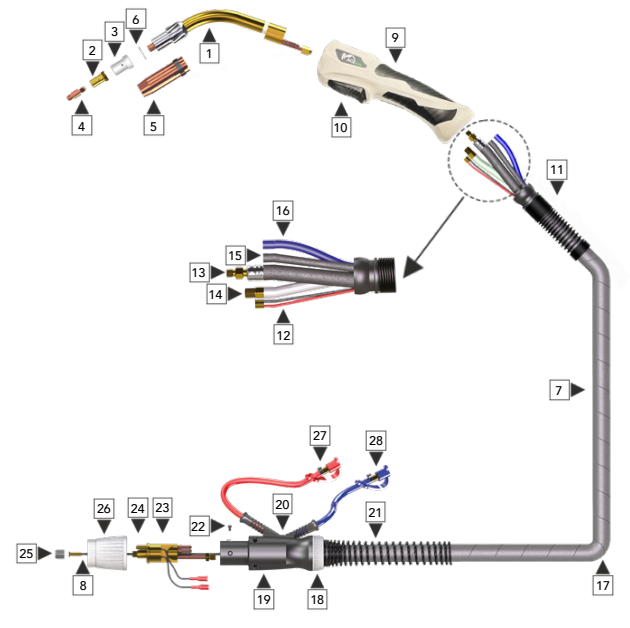

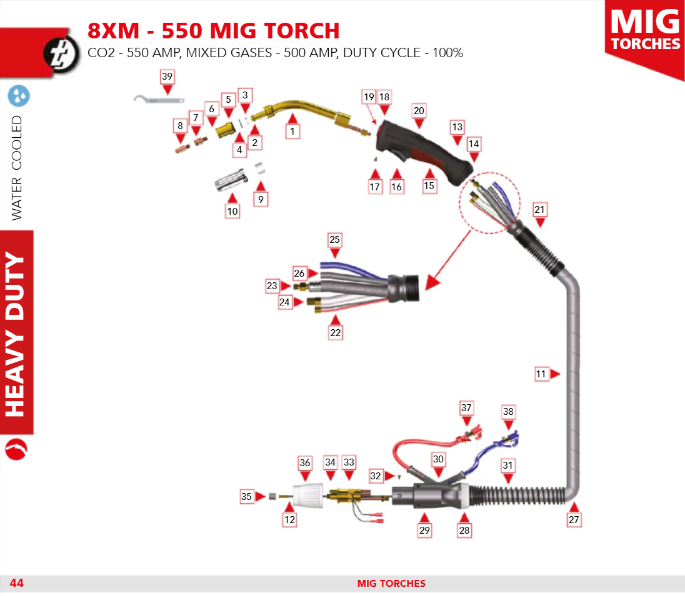

COMPLETE TORCHES
SPARE PARTS
×
![]()
| ITEM | PART NO. | DESCRIPTION | PACK QTY |
|---|---|---|---|
| – | 8M51000300300 | 8XM-510 MIG torch 3mtr | 1 |
| – | 8M51000300400 | 8XM-510 MIG torch 4mtr | 1 |
| – | 8M51000300500 | 8XM-510 MIG torch 5mtr | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300651 | Swanneck (18mm Swanneck) | 1 |
| 2 | 150404 | Tipsdaptor M8 | 10 |
| – | 150402 | Tipsdaptor M6 | 10 |
| 3 | 300560 | Diffuser white | 25 |
| – | 300570 | Diffuser black | 25 |
| 4 | 103304 | Contacttip M8-10-12mm | 50 |
| – | Other contacttips, see: Options and wear parts | Page 46 | |
| 5 | 200820 | Nozzle conical (Heavy Duty) | 10 |
| – | Other nozzles, see: Options and wear parts | Page 50 | |
| 6 | 305640 | Insulating washer | 10 |
| 7 | 258413 | Cable assembly complete 3mtr | 1 |
| – | 258414 | Cable assembly complete 4mtr | 1 |
| – | 258415 | Cable assembly complete 5mtr | 1 |
| 8 | 304635 | Plain liner (ø 2,0/4,5mm round) 3mtr | 1 |
| – | 304645 | Plain liner (ø 2,0/4,5mm round) 4mtr | 1 |
| – | 304655 | Plain liner (ø 2,0/4,5mm round) 5mtr | 1 |
| – | Other liners, see: Options and wear parts | Page 48 | |
| 9 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 10 | 385402 | 10XM Trigger | 1 |
| – | 3854022 | 10XM Spring for switch | 5 |
| – | 10M9800 | 10XM Micro switch | 1 |
| 11 | 8M9602 | Cable support with ball-and-socket joint (handle side) | 1 |
| 12 | 306505 | Switch cable 1×0,75mm² per mtr | 100 |
| 13 | 258513 | Power/water cable 3mtr | 1 |
| – | 258514 | Power/water cable 4mtr | 1 |
| – | 258515 | Power/water cable 5mtr | 1 |
| 14 | 258523 | Outer liner 3mtr | 1 |
| – | 258524 | Outer liner 4mtr | 1 |
| – | 258525 | Outerliner 5mtr | 1 |
| 15 | 258535 | Water inlet hose 5x8mm blue per mtr | 100 |
| – | 258566 | Water outlet hose 5x8mm red per mtr | 100 |
| 16 | 258619 | Gas hose 5x8mm black per mtr | 100 |
| 17 | 259200 | Canvas sheeting 25×1,5mm per mtr | 40 |
| 18 | 8M9419 | 10XM locking ring | 1 |
| 19 | 8M9400 | 10XMHousing for central connector | 1 |
| 20 | 350881 | Water hose guide | 1 |
| 21 | 358201 | Cable support spring | 1 |
| 22 | 305310 | Screw M4x6 | 25 |
| 23 | 305304 | Central connector Euro with spring pin | 1 |
| 24 | 3053091 | Spring pin complete | 10 |
| 25 | 305316 | Liner positioner nut | 10 |
| 26 | 8M9420 | 10XM Adaptor nut | 1 |
| 27 | 258701 | Waterstop red | 10 |
| 28 | 258702 | Waterstop blue | 10 |
North America
Technical Specification
Replacement Part
TECHNICAL DOCUMENT
8XM 15
CO2: 180 AMP
Mixed Gases: 150 AMP
Duty Cycle: 60%
8XM 24
CO2: 250 AMP
Mixed Gases: 220 AMP
Duty Cycle: 60%
8XM 25
CO2: 230 AMP
Mixed Gases: 200 AMP
Duty Cycle: 60%
8XM 26
CO2: 230 AMP
Mixed Gases: 200 AMP
Duty Cycle: 60%
8XM 36
CO2: 320 AMP
Mixed Gases: 300 AMP
Duty Cycle: 60%
8XM 40
CO2: 400 AMP
Mixed Gases: 380 AMP
Duty Cycle: 60%
8XM 240
CO2: 300 AMP
Mixed Gases: 270 AMP
Duty Cycle: 100%
8XM 410
CO2: 500 AMP
Mixed Gases: 450 AMP
Duty Cycle: 100%
8XM 510
CO2: 550 AMP
Mixed Gases: 500 AMP
Duty Cycle: 100%
×
![Zoomed Image]()

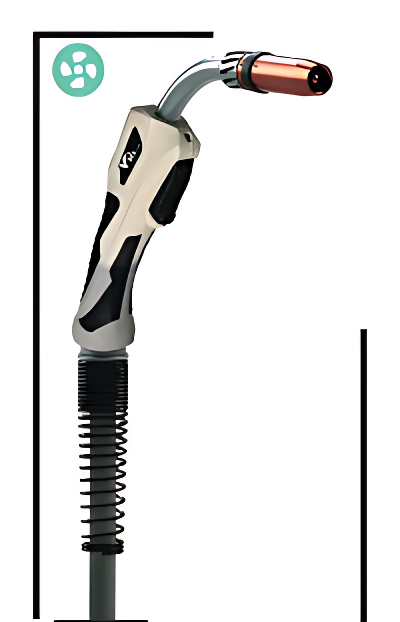

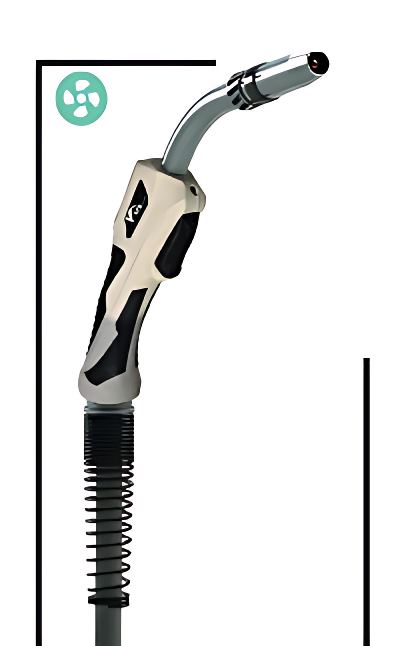

Air Cooled
Water Cooled
10XM-15 MIG TORCH
10XM – 24 MIG TORCH
10XM – 25 MIG TORCH
10XM – 26 MIG TORCH
10XM – 36 MIG TORCH
10XM – 40 MIG TORCH
COMPLETE TORCHES
SPARE PARTS

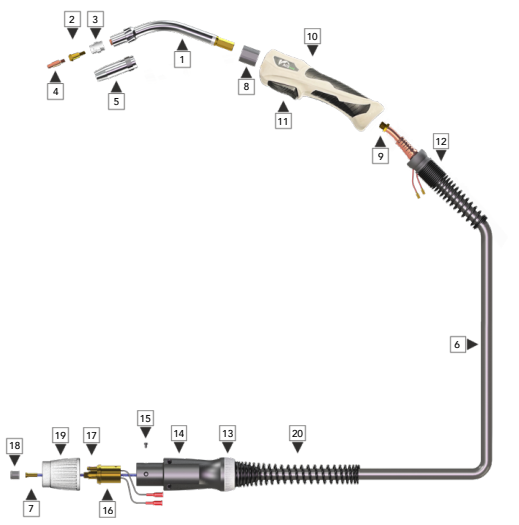

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 8M01500100300 | 8XM-15 MIG torch 3mtr | 1 |
| – | 8M01500100400 | 8XM-15 MIG torch 4mtr | 1 |
| – | 8M01500100500 | 8XM-15 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300030 | Swanneck | 1 |
| 2 | 150000 | Tipadaptor M6 | 10 |
| 3 | 100102 | Contacttip M6-06-0.8mm | 100 |
| 4 | 200120 | Nozzle conical | 10 |
| 5 | 258153 | Cable assembly 16mm² 3mtr | 1 |
| 6 | 301535 | P.C. liner blue (ø 1,5/4,5mm round) 3mtr | 1 |
| 7 | 305600 | Nozzle spring | 10 |
| 8 | 305241 | Insulator | 5 |
| 9 | 305401 | Lock nut M10x1x5mm | 10 |
| 10 | 10M9900 | 10XM Handle complete 16mm | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M02400100300 | 10XM-24 MIG torch 3mtr | 1 |
| – | 10M02400100400 | 10XM-24 MIG torch 4mtr | 1 |
| – | 10M02400100500 | 10 XM-24 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300624 | Swanneck | 1 |
| 2 | 150002 | Tipadaptor M6 | 10 |
| 3 | 300510 | Diffuser white | 25 |
| 4 | 100206 | Contacttip M6-08-1,0mm | 100 |
| 5 | 200300 | Nozzle conical | 10 |
| 6 | 258253 | Cable assembly 25mm² 3mtr | 1 |
| 7 | 302535 | P.C. liner red (ø 2,0/4,5mm round) 3mtr | 1 |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Part No. | Description | Pack Qty |
|---|---|---|
| 10M02500100300 | 10XM-25 MIG torch 3mtr | 1 |
| 10M02500100400 | 10XM-25 MIG torch 4mtr | 1 |
| 10M02500100500 | 10XM-25 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300625 | Swaneck | 1 |
| 2 | 150102 | Tipadapter M6 | 10 |
| 3 | 100206 | Contacttip Mo-06;1.0mm | 10 |
| 4 | 258253 | Cable assembly 25mm² 3mtr | 1 |
| 5 | 302345 | P.C. liner red (Ø 2.0/4.5mm round) 3mtr | 1 |
| 6 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 7 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M02600100300 | 10XM-26 MIG torch 3mtr | 1 |
| – | 10M02600100400 | 10XM-26 MIG torch 4mtr | 1 |
| – | 10M02600100500 | 10XM-26 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300626 | Swaneck | 1 |
| 2 | 150202 | Tipadapter M6 | 10 |
| 3 | 150203 | Tipadapter M8 | 10 |
| 4 | 100206 | Contacttip M6-08;1.0mm | 100 |
| 5 | 258253 | Cable assembly 25mm² 3mtr | 1 |
| 6 | 302535 | P.C. liner red (Ø 2.0/4.5mm round) 3mtr | 1 |
| 7 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 8 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M03600100300 | 10XM-36 MIG torch 3mtr | 1 |
| – | 10M03600100400 | 10XM-36 MIG torch 4mtr | 1 |
| – | 10M03600100500 | 10XM-36 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300636 | Swaneck | 1 |
| 2 | 150302 | Tipadaptor M6 | 10 |
| 3 | 100208 | Contacttip M6-08;1,2mm | 100 |
| 4 | 258363 | Cable assembly 50mm² 3mtr | 1 |
| 5 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 6 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M04000100300 | 10XM-40 MIG torch 3mtr | 1 |
| – | 10M04000100400 | 10XM-40 MIG torch 4mtr | 1 |
| – | 10M04000100500 | 10XM-40 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300640 | Swanneck | 1 |
| 2 | 150325 | Tipadaptor M8 | 1 |
| 3 | 100304 | Contacttip MB-10-1,2mm | 50 |
| 4 | 258403 | Cable assembly 70mm² 3mtr | 1 |
| 5 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 6 | 385402 | 10XM Trigger | 1 |
10XM – 240 MIG TORCH
10XM – 410 MIG TORCH
10XM – 510 MIG TORCH
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M24000300030 | 10XM-240 MIG torch 3mtr | 1 |
| – | 10M24000300040 | 10XM-240 MIG torch 4mtr | 1 |
| – | 10M24000300050 | 10XM-240 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300623 | Swanneck | 1 |
| 2 | 150002 | Tipadaptor M6 | 10 |
| 3 | 300510 | Diffuser white | 25 |
| 4 | 100208 | Contacttip M6-08 1.2mm | 100 |
| 5 | 200300 | Nozzle conical | 10 |
| 6 | 258413 | Cable assembly complete 3mtr | 1 |
| 7 | 304635 | Plain liner (ø 2.0/4.5mm round) 3mtr | 1 |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 5 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 10M41000300300 | 10XM-410 MIG torch 3mtr | 1 |
| – | 10M41000300400 | 10XM-410 MIG torch 4mtr | 1 |
| – | 8M41000300500 | 10M-410 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300641 | Swanneck (18mm Swanneck) | 1 |
| 2 | 150404 | Tipadapter M8 | 10 |
| 3 | 300560 | Diffuser white | 25 |
| 4 | 100304 | Contacttip M8-10-12mm | 50 |
| 5 | 200820 | Nozzle conical (Heavy Duty) | 10 |
| 6 | 308414 | Cable assembly complete 3mtr | 1 |
| 7 | 304455 | Plain liner (ø 2,0/4,5mm round) 3mtr | 1 |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 1 |
COMPLETE TORCHES
SPARE PARTS
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| – | 8M51000300300 | 8XM-510 MIG torch 3mtr | 1 |
| – | 8M51000300400 | 8XM-510 MIG torch 4mtr | 1 |
| – | 8M51000300500 | 8XM-510 MIG torch 5mtr | 1 |
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 300651 | Swanneck (18mm Swanneck) | 1 |
| 2 | 150404 | Tipsdaptor M8 | 10 |
| 3 | 300560 | Diffuser white | 25 |
| 4 | 103304 | Contacttip M8-10-12mm | 50 |
| 5 | 200820 | Nozzle conical (Heavy Duty) | 10 |
| 6 | 258413 | Cable assembly complete 3mtr | 1 |
| 7 | 304635 | Plain liner (ø 2,0/4,5mm round) 3mtr | 1 |
| 8 | 10M9900 | 10XM Handle complete 16mm | 1 |
| 9 | 385402 | 10XM Trigger | 1 |
